DynoSW HUB - 2600 Chassis Dynamometer
Chassis Dynamometer HUB - 2600

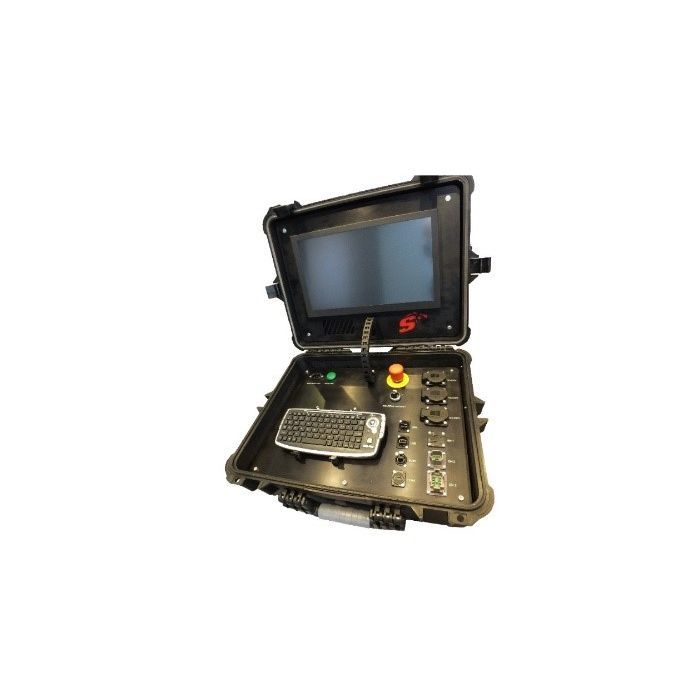

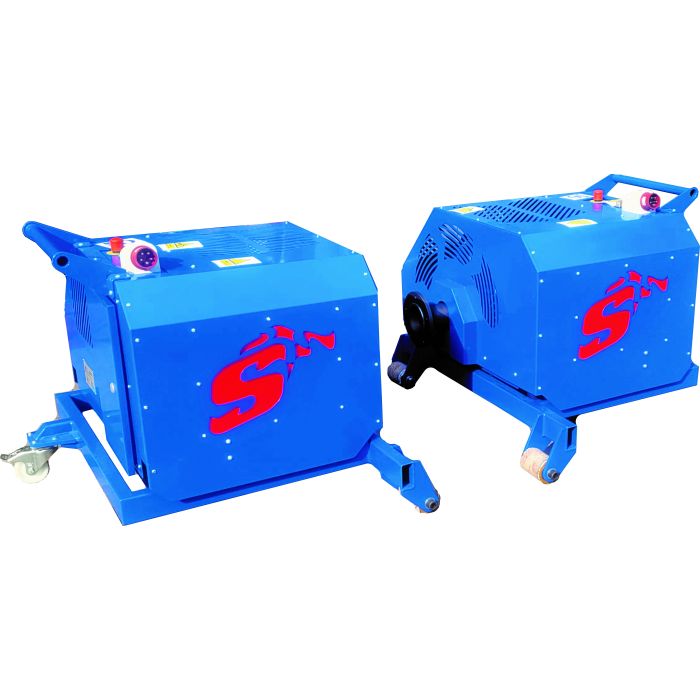

The HUB-2600 dynamometer is a test bench for the braking of high-powered vehicles, with power taken directly from the drive axle. The dynamometer has two load modules with electro-spinning brakes. The dynamometer measurement system is housed in a portable case, which is connected to the brake controllers and dynamometer sensors via a detachable harness.
| Specifications | |
| Power measurement method | load |
| Maximum braked power | 2390 HP |
| Engine power adjustment standard: | SAE J1349 |
| Maximum torque | 5200 Nm |
| Maximum speed | 6200 rpm |
| Maximum instantaneous speed | 6700 rpm |
| Dynamometer weight approx. | 1000 kg |
| Accuracy of torque measurement | ±1% of measured value |
| Accuracy of speed measurement | ±0.5% of measured value |
| Electrical supply | AC 400 V / 32 A |
| Operating temperature range: | +15÷+30oC |
