DynoSW WP1Lm Measuring Case

Manufacturer
SKU S-61515

  On demand

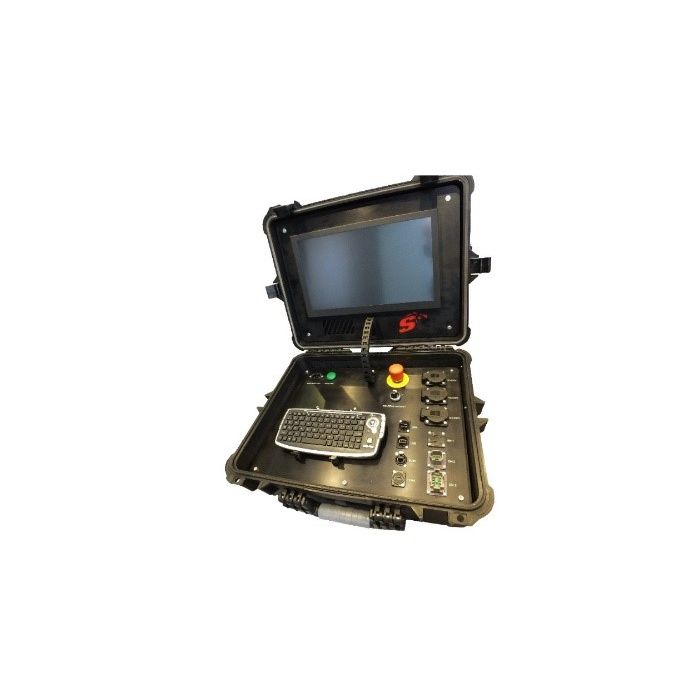

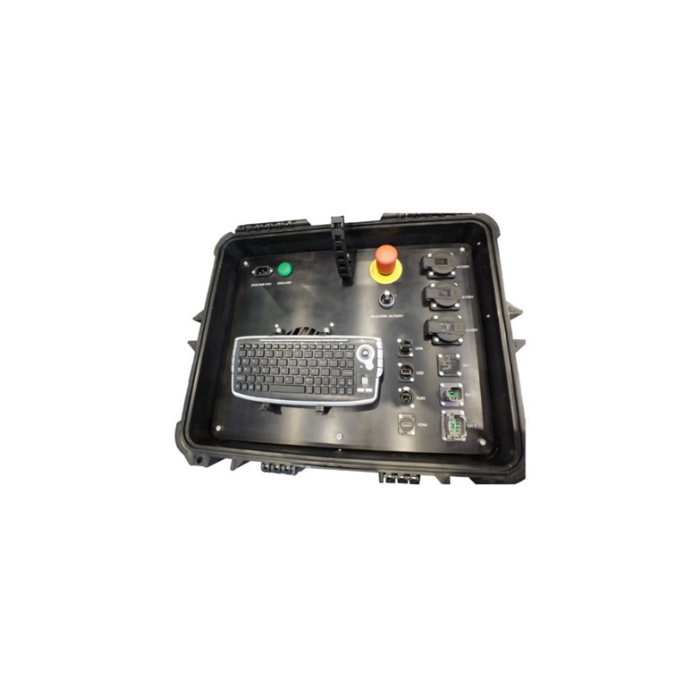

DynoSW WP1Lm Measuring Case

Measuring Case WP1Lm

The WP1Lm measuring case is a portable multifunctional control unit for controlling various types of inertial and load dynamometer stations.

  • 17’ monitor
  • computer - measurement controller with software
  • manual load torque control potentiometer
  • a set of connection sockets, including an output for CAN signals
  • portable keyboard

Driver parameters

  • Base computer 4-core Cortex A72 1.5GHz, 4GB RAM LPDDR4; 32GB data memory 100MB/s
  • 32-bit 64 MHz RISC microcontroller
Technical data for the measuring case
Overall dimensions of the case 550 x 430 x 210 mm
Weight of the measuring case 14 kg
Power supply for the measuring case AC 230 V / 16 A
Porty USB, HDMI, Ethernet, CAN-BUS 2,0B Analogue and digital inputs
Relay output 230 V AFR probe input
