DynoSW WOM-03 Dynamometer (Tractor)
Dynamometer (Tractor) WOM-03

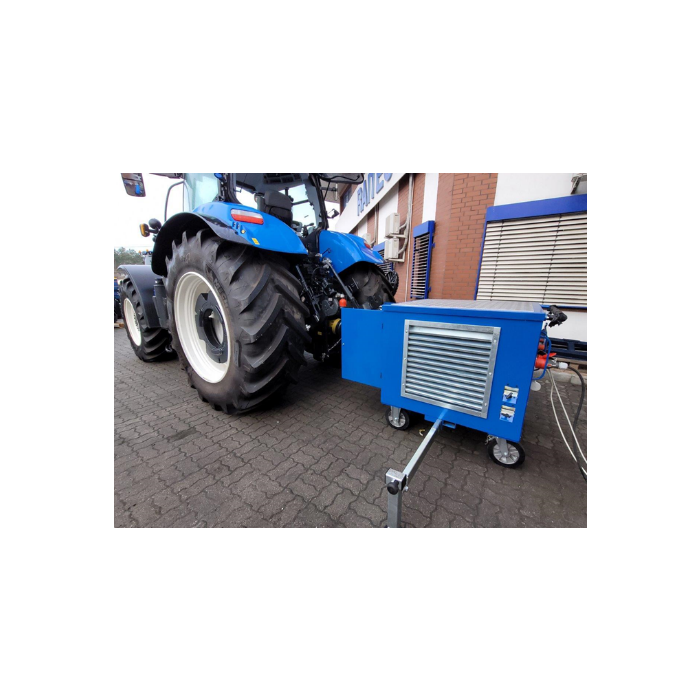

The H-WOM-03 dynamometer is a compact device designed for braking agricultural tractors up to 400 kW (544 hp) . Measurement is carried out by mechanically connecting the dynamometer shaft to the tractor via the power take-off (PTO).
| Specifications | |
| Measuring method | load |
| Maximum power (1000 rpm) | 400kW (544hp) |
| Maximum brake torque | 3,800Nm |
| PTO shaft speed | 1000 or 540 rpm |
| PTO shaft direction of rotation | Right (CW) |
| Measuring time | 2 - 2.5 min |
| Power corrections according to standard | SAE J1349 |
| Brake fan capacity | 10,000 m3/h |
| Maximum dimensions | 1220 x 1200 x 1210 mm |
| Bracket spacing | max. 3160 mm |
| Weight of the dynamometer module | approx. 680 kg (with brake) |
| Electrical supply | AC 3x400 V / 16 A |

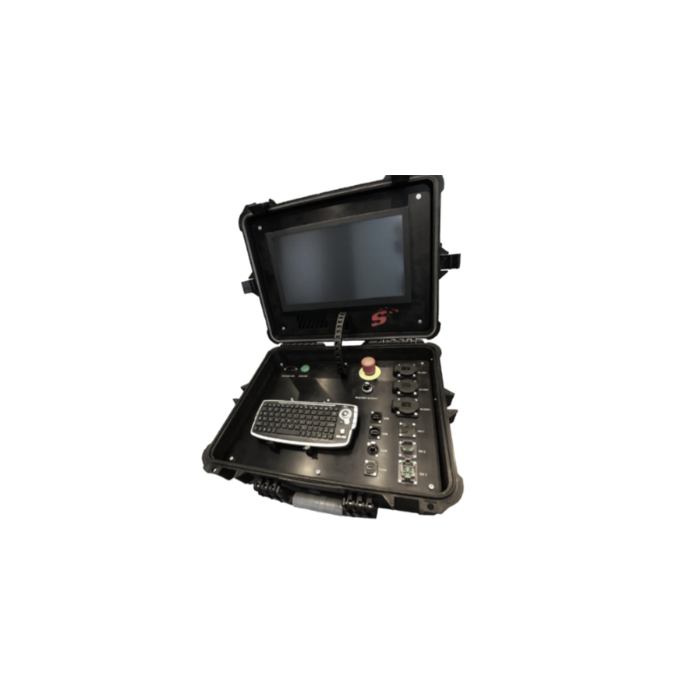

| Overall dimensions of the case | 550 x 430 x 210 mm |
