Oil Filter Sandwich Plate Cooler Adapter with Thermostat FMIC.Pro AN10
Oil Filter Sandwich Plate Cooler Adapter with Thermostat FMIC.Pro

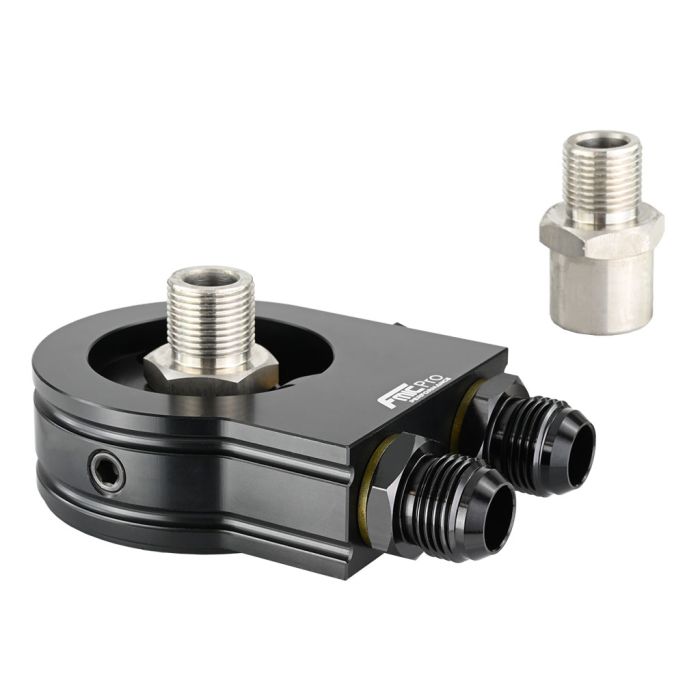

The FMIC.Pro oil cooler adapter is a high-quality component designed for sports cars, tuned vehicles, and all performance-oriented drivers who demand uncompromising reliability. It allows the installation of an external oil cooler, improving oil cooling efficiency and enhancing engine durability under high load.
The adapter is CNC-machined from a solid block of 6061-T6 aluminum and finished with anodizing, providing exceptional strength, corrosion resistance, and precision fitment.
This version features an integrated thermostat that opens at 85°C, regulating oil flow to the cooler. This helps the oil reach optimal operating temperature faster after a cold start, while cooling is only activated when necessary – especially important during regular road use and in colder climates.
The adapter includes four threaded ports:
-
Two ports for connecting external oil cooler lines,
-
Two side ports with 1/8" NPT threads for installing oil pressure and temperature sensors.
It is compatible with the most common oil filter types – the kit includes thread inserts for M20x1.5 and 3/4-16 UNF.

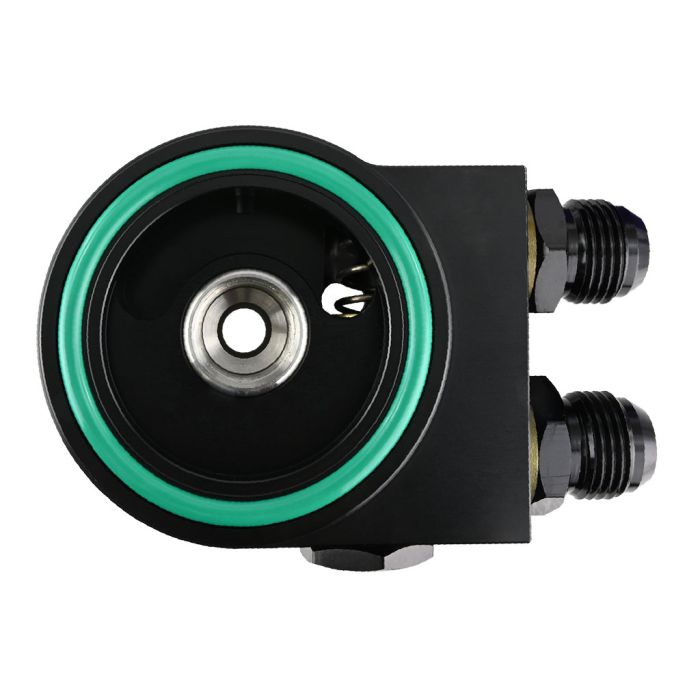

Also included is a Viton gasket, a material known for its exceptional resistance to high temperatures, oils, and chemicals – eliminating common leakage problems seen with standard rubber seals.
FMIC.Pro products are rigorously tested under motorsport conditions, ensuring top-level performance even in extreme environments.
Key Features:
-
FULL CNC – precisely machined from a single billet of aluminum
-
Material: 6061-T6 aluminum
-
Compatibility: M20x1.5 and 3/4-16 UNF thread inserts included
-
Finish: anodized – corrosion protection
-
Gasket: Viton® – high chemical and thermal resistance
-
Integrated thermostat – opens at 85°C
-
Two 1/8" NPT ports for sensors
-
Includes AN10 fittings
Dimensions: 85 × 95 mm
Thickness: 31.5 mm
O-ring (inner / outer diameter): 62 / 72 mm
More Information
Manufacturer | FMIC.Pro |
---|
