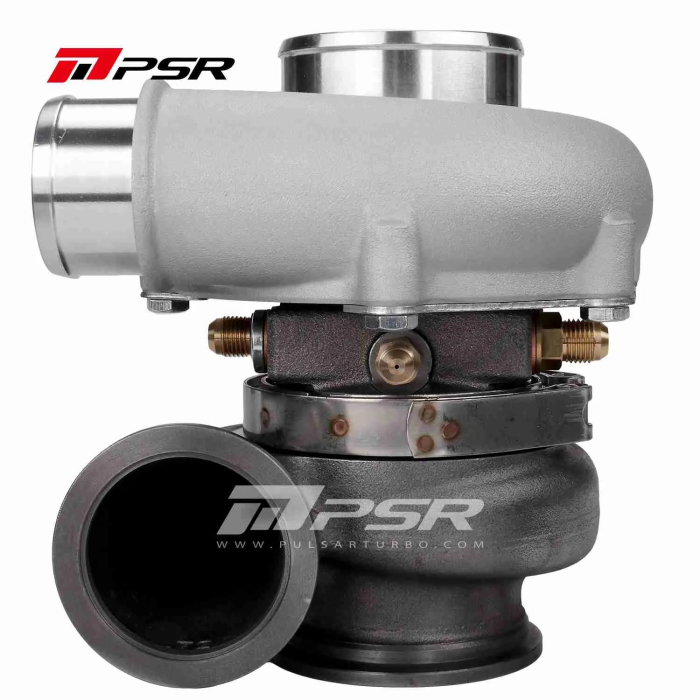

Turbocharger Pulsar PSR 6262G Dual Ball Bearing 900 HP Forward Rotation T51R 0.75A/R 2.5" Outlet Dual V-Band 1.01A/R

PSR Forward Rotation 6262G Dual Ball Bearing Turbocharger HP Rating 900

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

Compressor Housing: T51R 0.75A/R 2.5" Outlet

Turbine Housing: Dual V-Band 1.01A/R

Rotation: Forward

• Compressor Wheel: 62*76mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4” Hose
• Compressor Outlet: 2” Hose or 2.5″ Hose for Choose
• Turbine Inlet: T3/T4/V-Band
• Turbine Outlet: 3” V-Band
• Water Ports: 2-M14 x 1.5
• Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
• Oil Drain: Std T3
• 7 options of turbine housing: T3 0.83A/R; T4 0.82A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T4 divided 0.85A/R; T3 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T3); T4 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T4)

Weight: 24 lbs

Dimensions: 11 x 11 x 13 in
