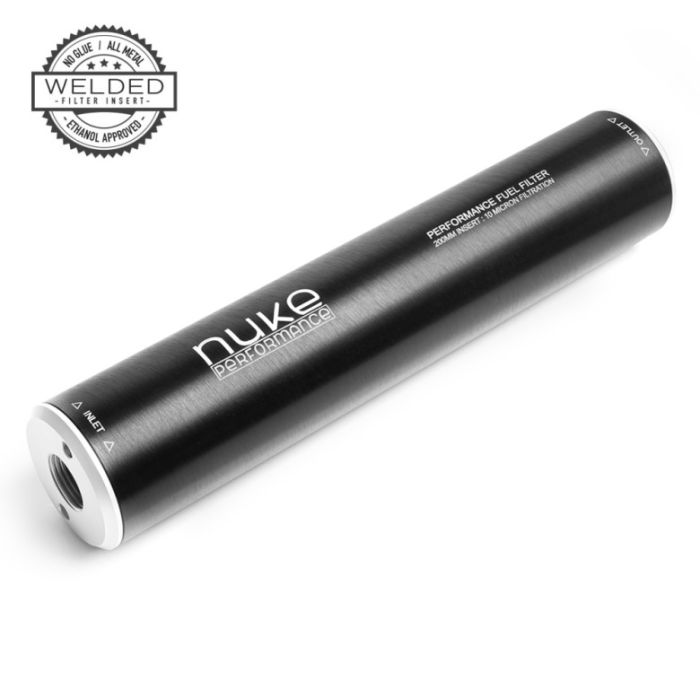

Nuke Performance Fuel Filter PF200 10 micron AN-10 - Welded stainless steel element

Manufacturer Nuke PerformanceNuke Performance
SKU NP-200-03-201
EAN FM0011407

  On demand



Nuke Performance Fuel Filter PF200 10 micron AN-10 - Welded stainless steel element

Nuke Performance high flow motorsports PF200 fuel filter: Maximum filtration, minimal flow loss, and 100% proof for alcoholic fuels.

This lightweight high-flow in-line fuel filter is equipped with the unique Nuke Performance welded fuel filter insert that is 100% proof for alcoholic fuels such as ethanol.

  •  Lightweight slim-design motorsports in-line fuel filter
  •  Safe for all type of fuels, including ethanol and methanol
  •  Welded stainless steel 10-micron filter insert
  •  Now with AN-10 ORB, for the highest possible flow
  •  200mm oversized filter element
  •  150 sq. inches of filtering area
  •  1800 LPH, extremely high flow with close to no flow loss

The Nuke Performance Slim-series fuel filters are suitable for those with high demands for fuel flow and maximum filtration, and with the PF200 you get a massive 150sq. inches of filtering area and up to 1800 LPH flow capacity. The Nuke Performance high-quality fuel filters act like a affordable insurance that protects your engine and should never be overlooked, without proper filtration it does not take long before something goes very wrong in your setup.

 The right filter for your motorsport fuel system, suitable for builds up to 1500 horsepower with only one in-line fuel filter

The high-flow slim series fuel filter is delivered with the unique Nuke Performance welded filter inserts. When running alcoholic fuels, such as ethanol, methanol, and race fuels, you should choose one of our fuel filters with the unique welded filter element. These elements are now made of 100% stainless steel with unique end caps that exclude the common glue that can dissolve when changing from petrol to ethanol or when running aggressive fuels such as race fuel. When running the PF200 fuel filters from Nuke performance you do not have to worry about failing filter elements ever again.

  •  10-micron stainless steel filter element for all type of fuels
  •  Over 150 sq. inches of filtration area
  •  New improved design, lower weight, and higher flow

The new improved slim design grants high flow with close to no flow loss even when running high flowing high-pressure fuel pumps such as Deatschwerks DW400 and Ti Automotive GST450 / GST520 (Walbro) fuel pumps. This fuel filter is recommended when running a brushless fuel pump from Protec, Fuelab, or Deatschwerks.

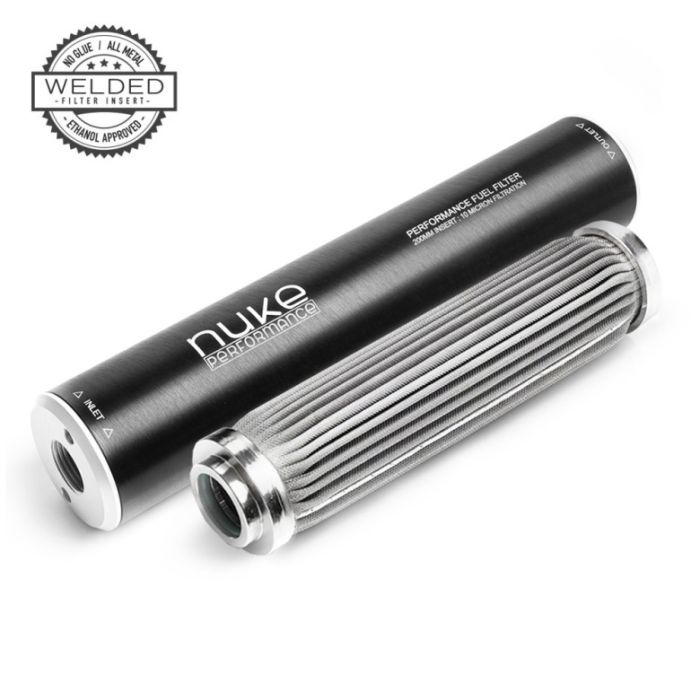

10-micron Stainless steel filter inserts with welded end caps, the perfect choice for high demanding fuel systems for high power output

The high-flow 200mm 10 microns stainless steel filter element is now made of 100% stainless steel with unique welded end caps that exclude the common glue that would dissolve when changing from petrol to ethanol or when running aggressive fuels such as race fuel. When running the new upgraded fuel filters from Nuke Performance you do not have to worry about failing filter elements ever again.

When running alcoholic fuels, you should always use a stainless steel filter element, the more common cellulose elements are meant for petrol, and should only be used for petrol.

Nuke Performance also offers the same fuel filter inserts in a series of fuel filters with or without integrated brackets, same functionality in a nice and functional design in different sizes and mounting options.

Easy and accessible mounting with a wide variety of options and fuel filter brackets, for all motorsports fuel systems

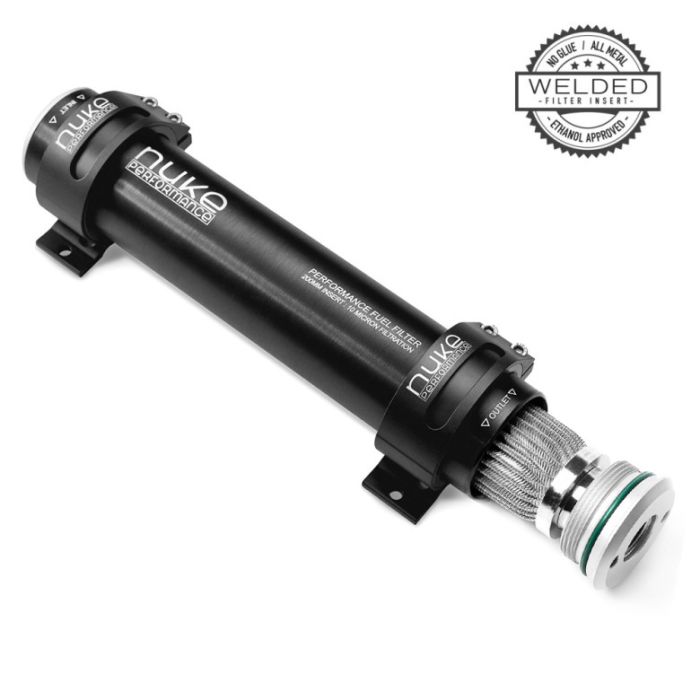

To mount the Slim-series fuel filters from Nuke Performance it's recommended that you go with the Nuke Performance Fuel Filter Bracket that is available in a single or dual design to fit your every filtering need. The universal, lightweight, billet bracket from Nuke Performance comes with a variation of inserts to fit your fuel filters and also fuel pumps such as the popular in-line fuel pumps such as Bosch 044, Deatschwerks DW350il, etc. Make sure to place your fuel filter at a safe location that prevents the filter from being deformed in case of an accident. We also offer an affordable and simpler bracket solution with two stainless steel p-clamp brackets that fit perfectly together with Nuke Performance fuel filters.

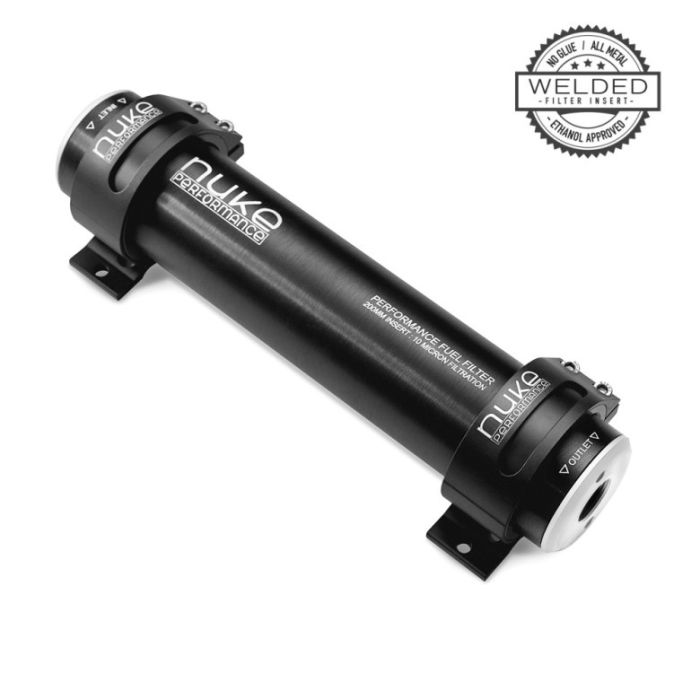

Single Nuke Performance fuel filter bracket Part # : 950-01-201

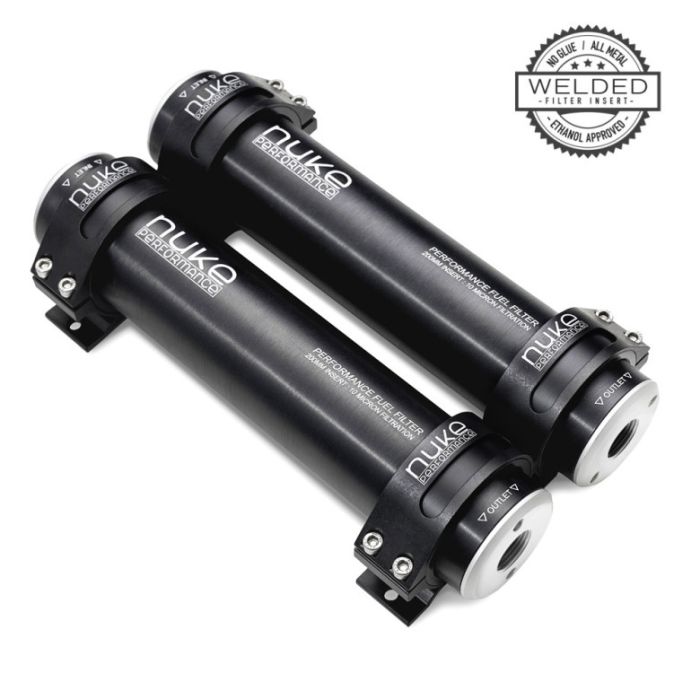

Dual Nuke Performance fuel filter bracket Part # : 950-02-201

Stainless steel fuel filter brackets 2pcs Part # : 200-20-102

Now with over-dimensioned AN-10 ORB fuel line fittings

Overdimensioned AN-10 inlet/outlet threads made for the highest fuel flow capacity possible. Since 2021 our fuel filters are now ready to use AN-10 ORB fittings for the highest possible flow and available in a large variation. Additional AN-10 ORB to AN-6, AN-8, AN-10, and AN-12 fittings are sold separately as accessories.

AN-10 ORB to AN-6 Male Part # : 700-01-108

AN-10 ORB to AN-8 Male Part # : 700-01-109

AN-10 ORB to AN-10 Male Part # : 700-01-110

AN-10 ORB to AN-12 Male Part # : 700-01-111

Complete your high flow fuel system with Nuke Performance Full Flow series fuel lines, hose ends, and fittings

Nuke Performance offers a wide variation of both PTFE and nitrile fuel line systems for your every fueling need. The Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 is a perfect match to the Nuke Performance Full Flow-series fuel lines. Available in AN-4 to AN-12 and in a wide variation of available fittings and accessories. And with the handy selection of fuel line tools, it has never been as easy to assembly your fuel system.

 Developed upon high demands from worldwide motorsports

Made in Sweden and co-developed with worldwide motorsports teams, the true high-performance fuel filter PF200 from Nuke Performance has never stopped evolving. Always ready to give you maximum function, filtration, and quality even in demanding conditions. The Nuke Performance Slim-series fuel filters are made with the same hallmark as all other parts in the lightweight Nuke Performance motorsports range.

There is no substitute for the quality of Nuke Performance!

!Changing your fuel filter insert due to heavy contamination!

We strongly recommend cleaning the internal filter unit once a season, especially when using ethanol due to its dissolving contaminations within the fuel system. If needed, due to heavy contamination you can buy a spare 200mm insert.

Replacement Filter Insert 10-micron Part #: 200-10-104

O-ring for fuel filter endcaps Part #: 200-10-103

Pin wrench for opening fuel filters Part #: 200-20-101

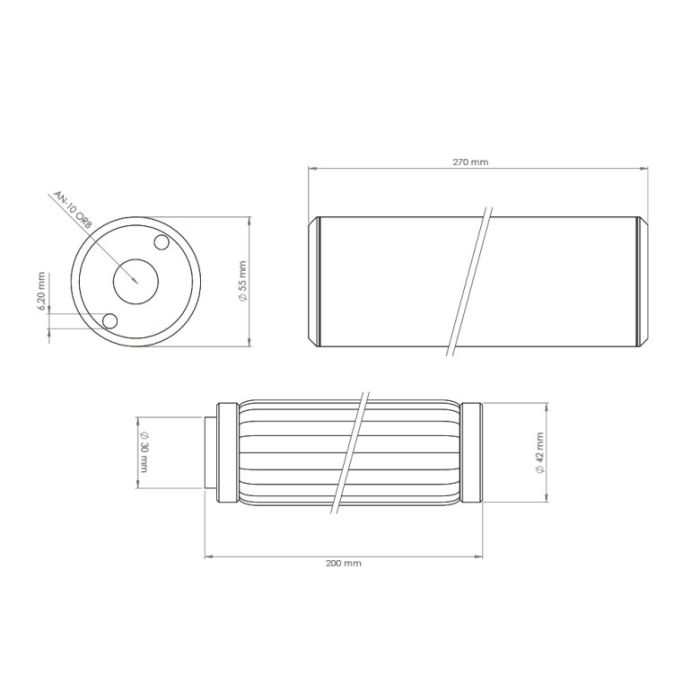

 Nuke Performance Fuel Filter PF200 10 micron AN-10 Specifications

For more information about specifications, contact us directly.

 PF200 Fuel Filter Part # 200-03-201

 Replacement filter element Part # 200-10-104

 Filter element micron μm 10-micron

 Fuel compatibility Gasoline, Methanol, Ethanol, Diesel

 Length 270mm (10.63")

 Diameter Ø 55mm (2.16”)

 Inlet thread AN-10 ORB, view range

 Outlet thread AN-10 ORB, view range

 Weight 1099g (2.42lb)

 Filter area 150 sq. in

 Work pressure / Max pressure 8 BAR (116 PSI) / 21 BAR (305 PSI)

 Flow capacity 1800 LPH

 Pressure drop ≈0.15 BAR (≈2.17 PSI)



 Nuke Performance Fuel Filter PF200 10 micron AN-10 Includes:

1 x Fuel Filter housing with AN-10 ORB threads

1 x 10-micron stainless steel filter element
