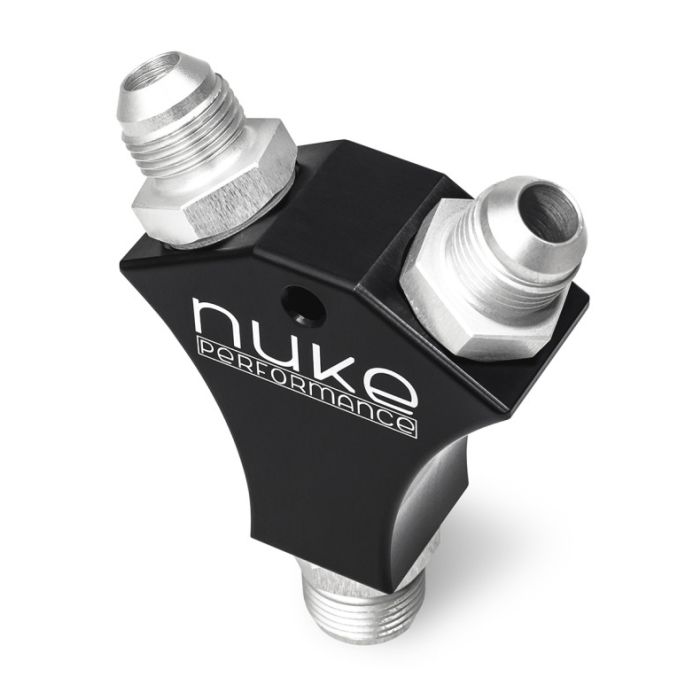

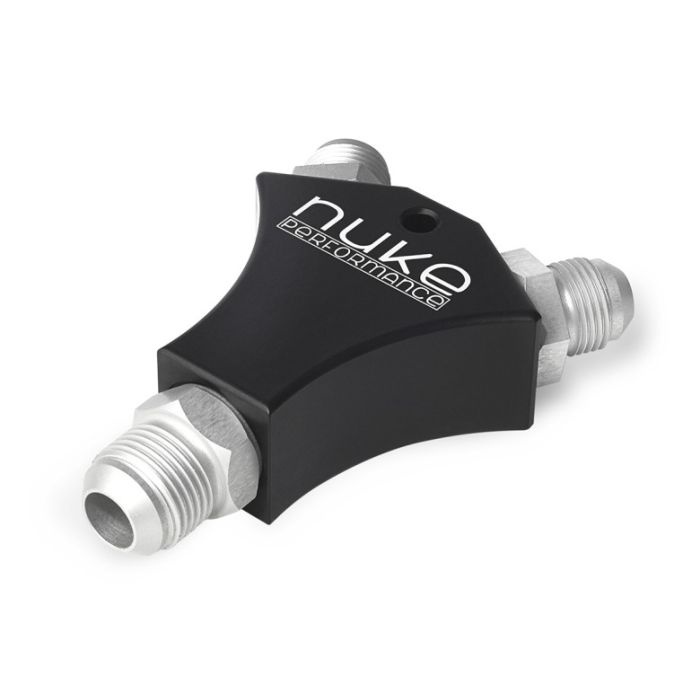

Nuke Performance Y-Block Adapter Fitting with 2x AN-8 and 1x AN-10

Choose for yourself if you´re looking to divide, or gather up two lines to one. Nuke Performance Y-Adapter Fitting let you do this with minimum flow loss.

Delivered with 2x 3/4 AN-8 and 1x 3/4 AN-10. Available Fittings to adapt to AN-6, AN-8 or AN-10 are sold separately.

Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol. But can also be used for multiple fluids like coolant, water, oil and air etc.

The body and all components are CNC-machined from 6082 aluminum alloy.

The design of the Nuke Performance Y-Fitting gives a very clean and high performance appearance in combination with top quality and steady mounting.

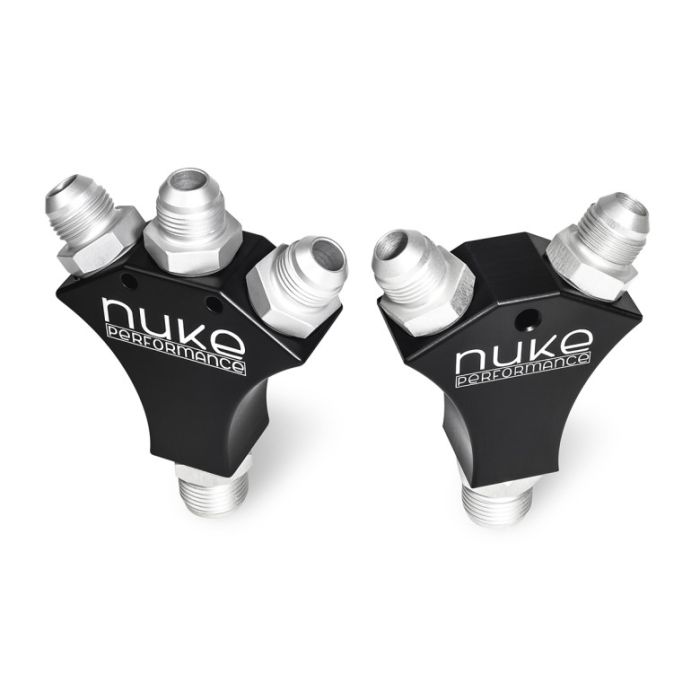

Also available with three outputs, the Nuke Performance X-Block Adapter Fitting.

Technical information :

• CNC manufactured from aluminum alloy 6082.

• 3/4 UNF Thread in all ends.

• Available with either two ( Y ) or three ( X ) output ports.

• Delivered with 2x 3/4 AN-8 and 1x 3/4 AN-10

• 3/4 UNF Ports, available to AN-6, AN-8 or AN-10 line.

• Laserengraved.

Measurements :

Height : 116 mm

Width : 80 mm

Depth : 29 mm

Weight : 200 g

* All measurements including the supplied fittings.
