Toyota 6cyl 2JZ high-performance bolt-on Fuel Rail kit for the popular 6cyl 2JZ engine. This kit is for the popular Bosch / 14mm injectors. Lightweight fuel rail with unique injector safety clips that fit straight on the intake without heavy modifications. 100% safe for alcoholic fuels such as ethanol.
Lightweight aluminum fuel rail
Unique injector safety clips
Bolt-on brackets included for non-VVTi
Injector seats included
Made in Sweden
100% E85 Proof
Delivered with AN-8 fittings
Bolt-on fitment, everything is included for :
• Toyota 2JZ with Bosch injectors (non VVTi version)
Kit made for the type of injectors :
• Bosch EV14 L
Give your engine over-dimensioned fuel flow for serious power outtake and the looks that are the Nuke Performance signum. Designed to look awesome and perform even better, this motorsports-grade fuel rail is the Toyota 2JZ fuel rail with the most functionality and delivered with unique injector safety clips and bolt-on brackets for a safe and easy mount to this popular 6cyl engine from Toyota that was mounted in the iconic Toyota Supra MKIV.
Delivered with AN-8 fittings and bolt-on brackets
Co-developed with worldwide 2JZ specialists, this fuel rail is set to perform under all conditions and for any horsepower requirement. This is the best fuel rail on the market for the 2JZ Toyota straight-six engine with the highest flow capacity. Delivered with 2x 3/4 UNF to AN-8 Male fittings. AN-6 and AN-10 fittings are optional and sold as additional accessories.
3/4 UNF to AN-6 Male Part # : 700-01-101
3/4 UNF to AN-8 Male Part # : 700-01-102
3/4 UNF to AN-10 Male Part # : 700-01-103
For applications where space is an issue, we also have a range of banjo fittings that saves a lot of space. AN-6, AN-8, and AN-10 banjo fittings are optional and sold as additional accessories.
3/4 UNF Banjo to AN-6 Male Part # : 700-03-101
3/4 UNF Banjo to AN-8 Male Part # : 700-03-102
3/4 UNF Banjo to AN-10 Male Part # : 700-03-103
Made in Sweden, guaranteeing the highest possible quality
The 2JZ engine fuel rail is developed, designed, and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!

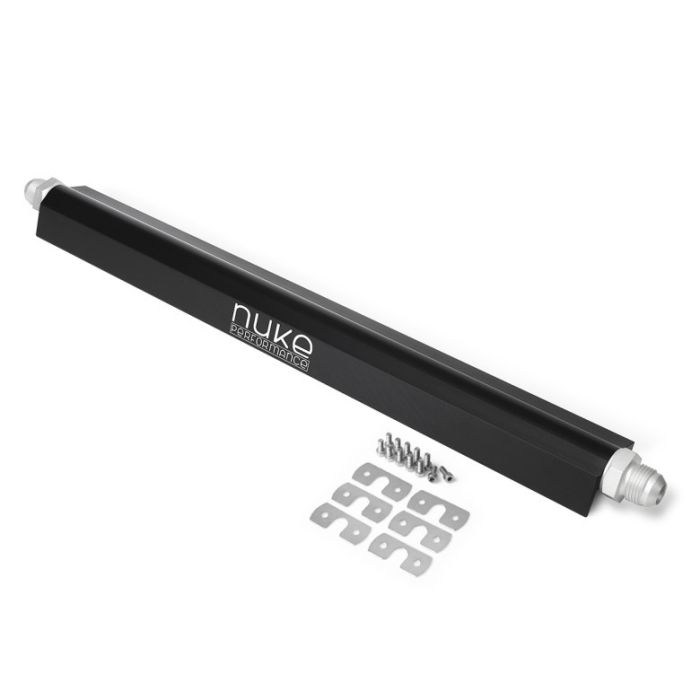

Toyota 6cyl 2JZ 14mm Injectors (non VVTi) Fuel Rail - Bolt-On includes:
1x Fuel rail 505mm profile for 6cyl
6x Injector safety clips
12x Stainless steel bolts for safety clips
2x Aluminum brackets
2x Stainless steel bolts for brackets
2x Stainless steel bolts for intake
6x Injector adapters with Viton o-rings
2x AN-8 (3/4 UNF) to AN-8 Male fittings
Article replaces Part # : 100-05-201 + 99-05-101
Technical information :
• Machined aluminium extrusion 6082-T6.
• Delivered with 2x 3/4 UNF AN-8 Male fittings, 1x 1/4 BSPP plug.
• 100% safe for alcoholic fuels such as E85.
• Stainless injector safety clips for safe seal operation.
• Anodized finish for long lasting function and corrosion free appearance.
• 17.5mm internal diameter which guarantees high and reliable flow.
Measurements : *
Length : 505 mm (19.88")
Height : 36 mm (1.41")
Depth : 33 mm (1.29")
Weight : 645 g (22.75oz)
* All weights and measurements are excluding fittings.
