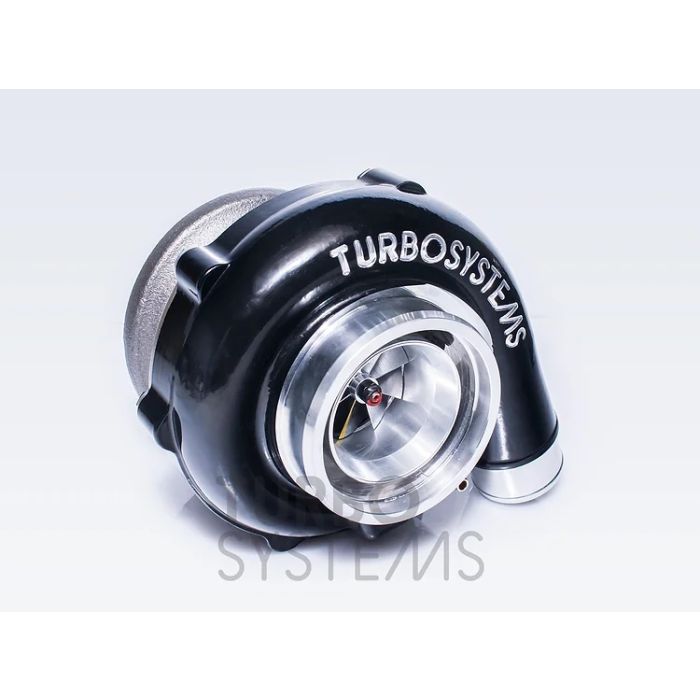

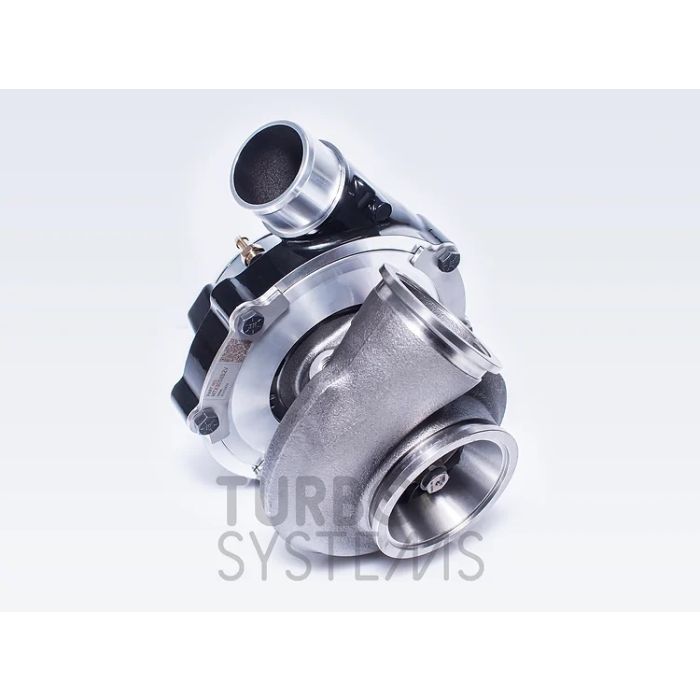

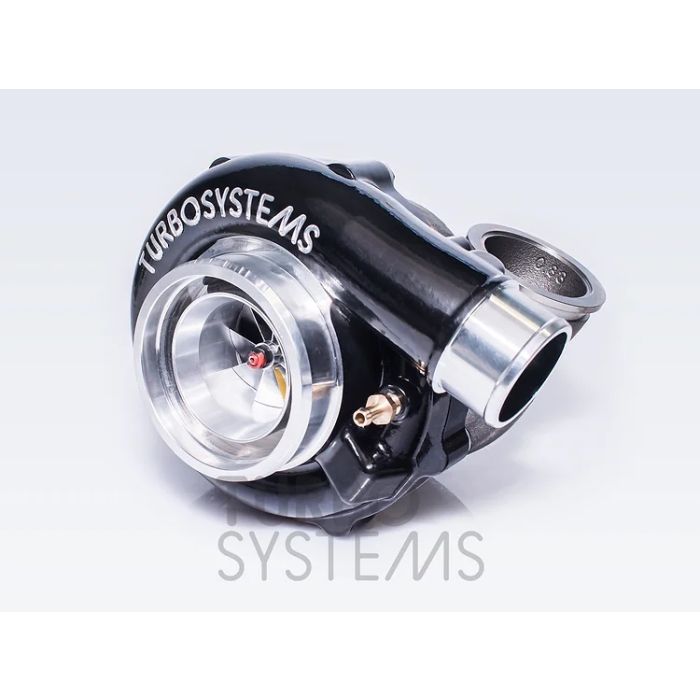

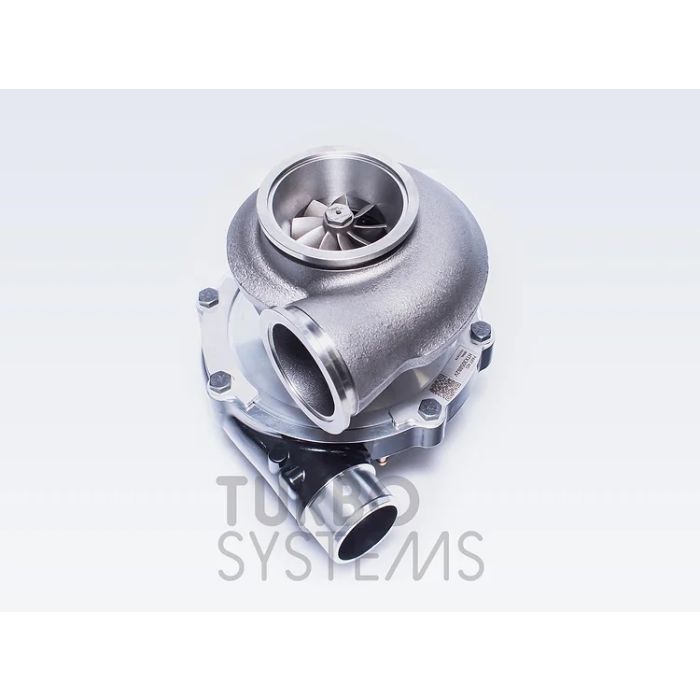

Turbocharger TurboSystems HTX3058B2V

Manufacturer Turbosystems
SKU HTX3058B2V

  On demand



Turbocharger TurboSystems HTX3058B2V

High performance turbocharger with 10cm2, 0.83 AR 2.25" V-band turbine housing designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

  • Power range: 450-650 HP;

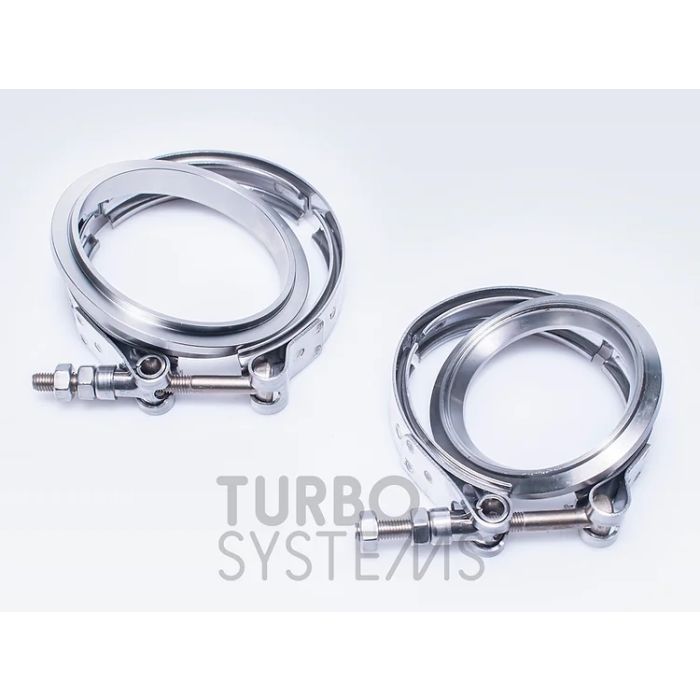

This turbocharger comes with 2 V-band sets (for turbine flange and exhaust).

Compressor side:

  • Ported shroud compressor housing;
  • Compressor wheel: in-house made, reinforced 58/72 mm 9+0 blades machined from the solid aluminium;
  • Intake:  101mm (4");
  • Air outlet: 51mm (2");

Core:

  • Bearings: dual ceramic ball bearings;
  • Cooling: water cooling with 2 x M14x1.5 ports;
  • Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

  • Housing: single scroll, 10cm2 AR: 0.83;
  • Turbine wheel: custom design 60/55mm 9 blades;
  • Flange: 2.25" V-band single scroll;
  • Exhaust connection: 3" V-band clamp;


More Information

Manufacturer Turbosystems
