Wilwood 140-11018 FDL Pro Series Front Brake Kit Undrilled Rotors Red
Manufacturer
Wilwood
Wilwood SKU WIL-140-11018-R
Price: AED 4,643.89
On demand
Wilwood 140-11018 FDL Pro Series Front Brake Kit Undrilled Rotors Red

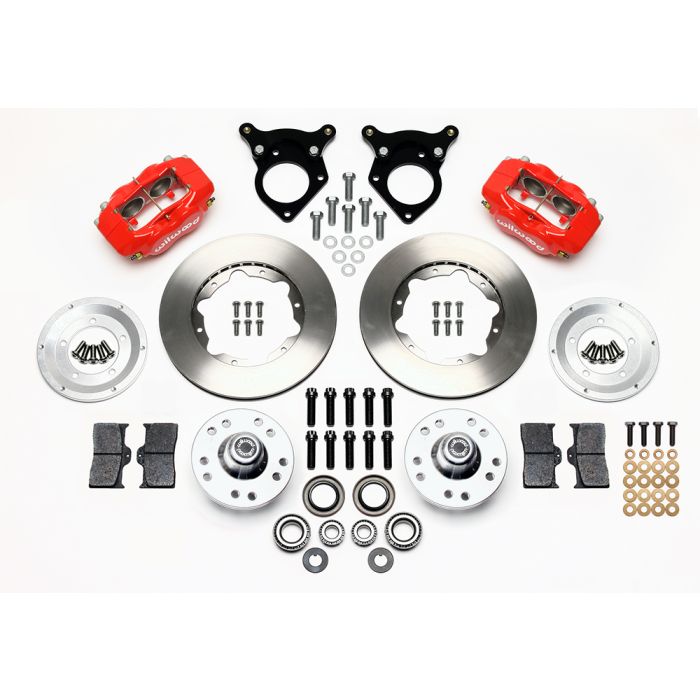

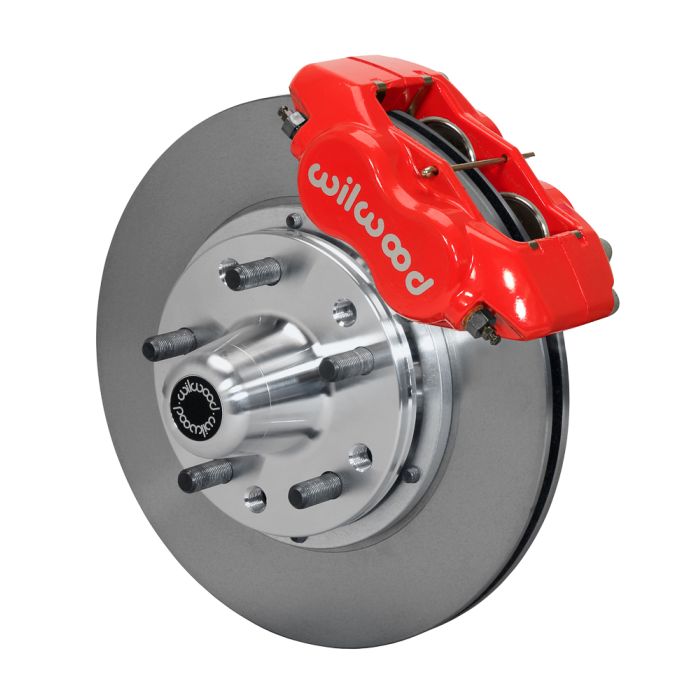

Forged Dynalite Pro Series Front Brake Kit
FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.
| Kit Summary | |
|---|---|
| OE Hub Offset: | +.24 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 11.00 |
| Min Wheel Diameter Req'd*: | 14 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13844-RD |
| Right Hand - Part No: | 120-13844-RD |
| Type: | Forged Dynalite Internal |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.75 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-5840 |
| Right Hand - Part No: | 160-5840 |
| Type: | Ultralite HP 30 |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11.00 |
| Width (in): | 0.81 |
| Vane Count: | 30 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-11256 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
| Stud Diameter - BC 3: | |
