DynoSW QUAD-03i Dynamometer
Dynamometer QUAD-03i
The QUAD-03I dynamometer is a device designed for braking four-wheeled vehicles with single axle drive or 4WD, which have a disconnectable drive, with a power output of up to 150 hp. The dynamometer has a motorbike braking function.
| Specifications | |
| Power measurement method: | inertial |
| Maximum braked power | 150 KM |
| Power adjustments with standard: | SAE J1349 |
| Rollers' dimensions (2 pcs) | fi 273 x 700 mm |
| Moment of inertia of the rollers | 3,5 kgm/2 |
| Weight of the roller module | 295 KG |

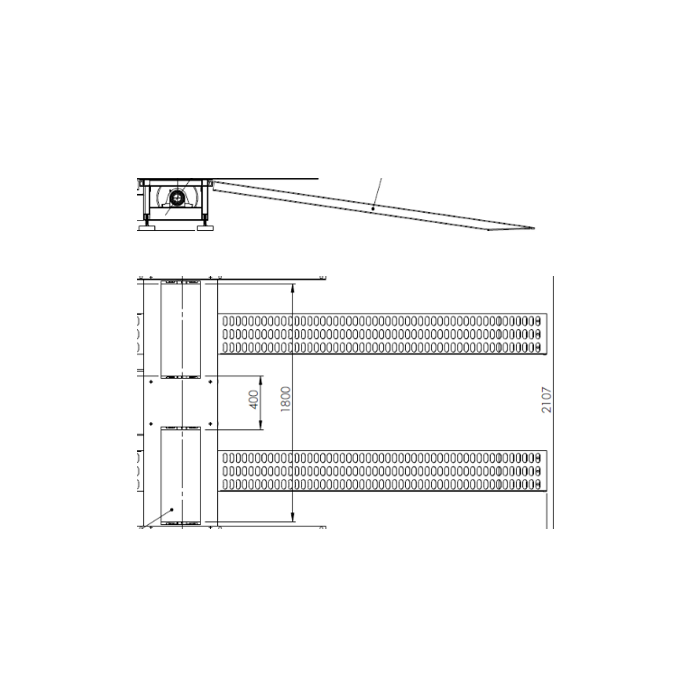

| Dimensions of roller module (L x W x H) | 560 x 2107 x 341 mm |
