Wilwood 140-17568-R NDPR Front UTV Brake Kit Red for Polaris RZR
Manufacturer
Wilwood
Wilwood SKU USA-WIL-140-17568-R
Price: AED 6,504.87
Price: د.إ. 6,504.87
The lowest price of the last 30 days before the discount: AED 6,504.87
On demand

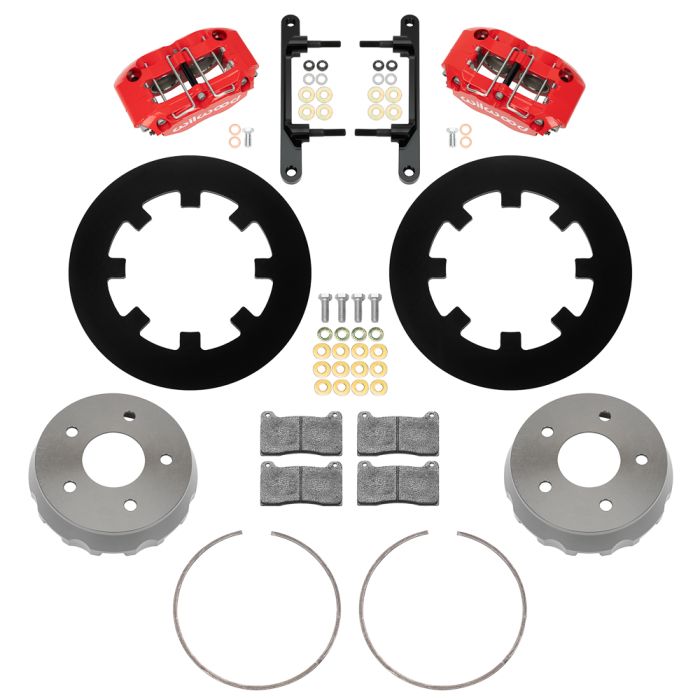

Wilwood 140-17568-R NDPR Front UTV Brake Kit Red for Polaris RZR
NDPR Front UTV Brake Kit Red
Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.
Kit Summary
| Spindle Type: | Disc |
| Mount Type: | Radial |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 11.25 |
| Min Wheel Diameter Req'd*: | 14 |
Calipers
| Left Hand - Part No: | 120-17565-RD |
| Right Hand - Part No: | 120-17565-RD |
| Type: | NDPR |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.75 |
| Piston 3 Bore (in): | 0 |
| Piston Area (In2): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In2): | 6.36 |
| Brake Pad Volume (In3): | 2.1 |
| Pad Compound: | BP-10 |
Rotors
| Left Hand - Part No: | 160-16515 |
| Right Hand - Part No: | 160-16515 |
| Type: | Solid Steel Rotor |
| Style: | Plain Face |
| Surface Finish: | Black Electro Coat |
| Material: | Steel |
| Outside Diameter (in): | 11.25 |
| Width (in): | 0.25 |
| Vane Count: | Solid |
| Design Type: | Solid |
| Bedded: | No |
| Dynamincally Balanced: | No |
Rotor Hat
| Hat - Part No: | 170-17569 |
| Type: | Big Brake Dynamic Lug Drive - Flared Bell |
| Material: | Aluminum |
| Finish Color: | Type III Anodize |
| Hat Offset Dimension (in): | 1.220 |
| Bolt Circle 1: | 5 X 4.50 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 0.520 |
| Stud Diameter - BC 2: | 0.000 |
| Stud Diameter - BC 3: | 0.000 |
More Information
| Manufacturer | Wilwood |
|---|---|
| Brand | Polaris |
