036103B: Full suspension bush kit

Manufacturer StrongflexStrongflex
SKU 036103B
EAN FM0019009

  On demand

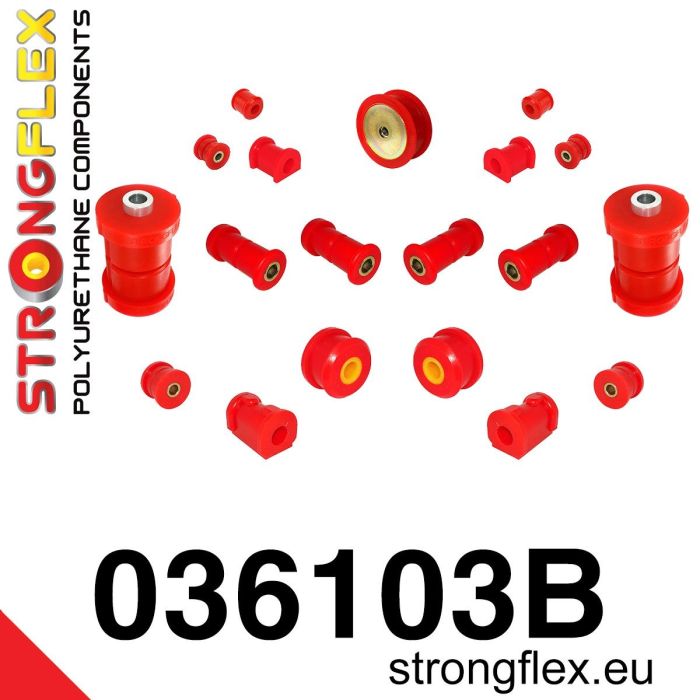

036103B: Full suspension bush kit

KIT ID: 036103B

Name: Full suspension bush kit

Fit:
BMW E30 82-91
Include:
2 x 031195B Front wishbone bush
or
2 x 031369A Front lower arm bushes M3 eccentric SPORT*

2 x 031318B Front anti roll bar bush
Diameters:
18mm
19mm
20mm
21mm
22mm
23mm
24mm
2 x 031525B Front anti roll bar link bush *

2 x 031336B Rear beam mounting bush
4 x 031314B Rear trailing arm bush

2 x 031313B Rear anti roll bar bush
Diameters:
12mm
13mm
14mm
15mm
16mm
18mm
19mm
2 x 031789B Rear anti roll bar link to anti roll bar bush
2 x 031790B Rear anti roll bar link to arm bush
1 x 031342B Rear diff mounting bush

Pcs/prod: 17/19

Required/car: 1

Diagrams:

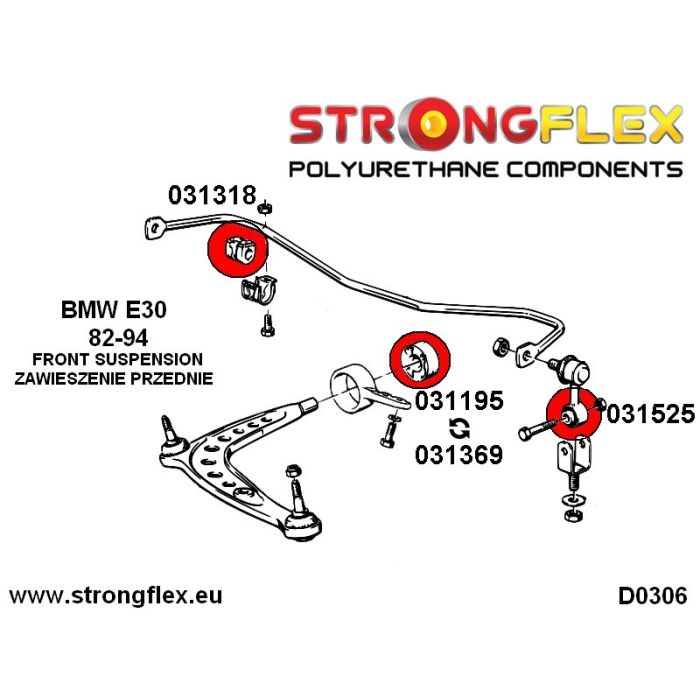

D0306

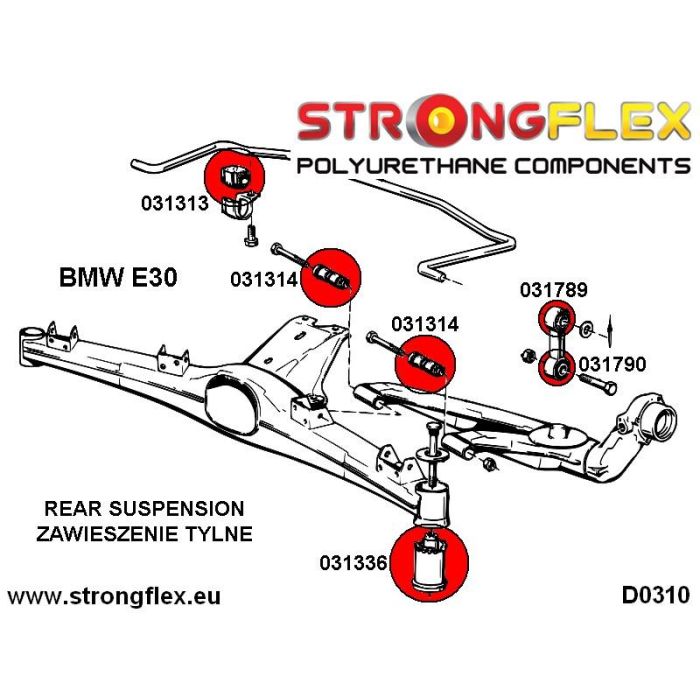

D0310

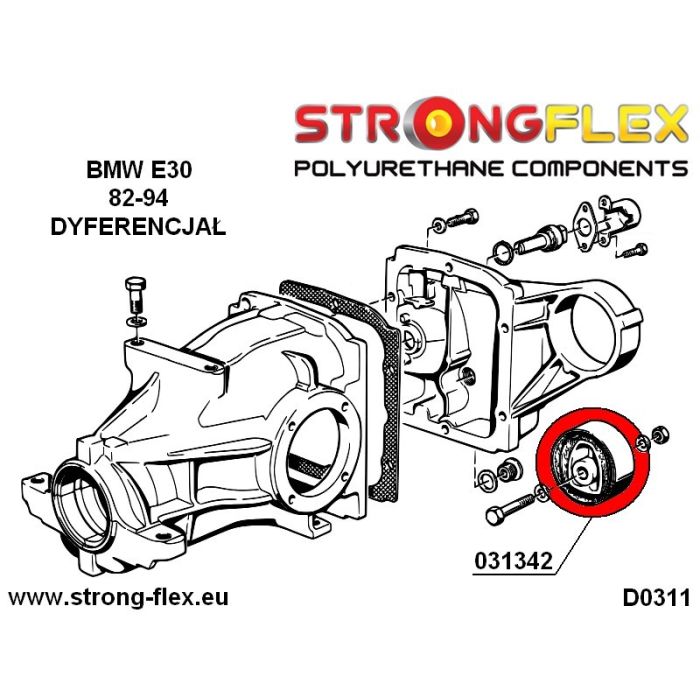

D0311

NOTE! *

Bush 031369 is only present in SPORT version 90ShA

Bush 031525 works only with anti roll bar link mount to lower arm, not the shock absorber.
Not fit the E36 M3 and Z3M models.

NOTE!
Measure Anti Roll Bar diameter before placing order.

NOTE! RELATED MAINLY WITH drift, motorsport ect.

Front Wishbone Bushes (031195 or 031369) can be prepared to fit the arm from the E46 model.
E46 Control Arm is longer and larger negative (wheel angle) can be achieved in comparison to the mass and E30/E36 geometry.
Place a note in the order if you are interested in such bushings.
Equivalent of "centric" bush is No. 031,737, and "eccentric" 031738.
These bushes can also be purchased separately.


Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
