036108B: Full suspension bush kit
On demand
036108B: Full suspension bush kit

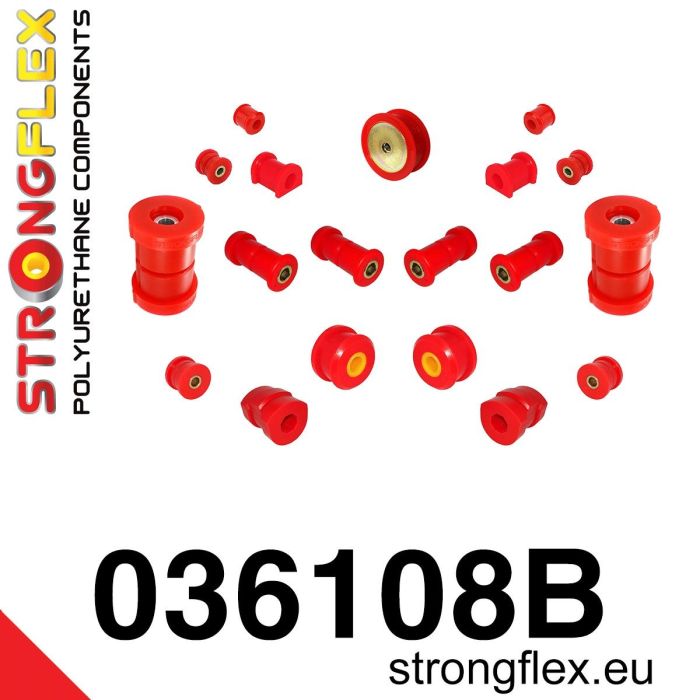

KIT ID: 036108B
Name: Full suspension bush kit
- Fit:
- BMW E36 Compact
- Include:
- 2 x 031195B Front wishbone bush
or - 2 x 031369A Front lower arm bushes M3 eccentric SPORT*
- 2 x 031183B Front anti roll bar bush
- Diameters:
- 19mm
- 20mm
- 22mm
- 23mm
- 24mm
- 25mm
- 26mm
- 27mm
2 x 031525B Front anti roll bar link bush *
2 x 031415B Rear beam mounting bush- 4 x 031314B Rear trailing arm bush
2 x 031313B Rear anti roll bar bush
- Diameters:
- 12mm
- 13mm
- 14mm
- 15mm
- 16mm
- 18mm
- 19mm
- 1 x 031342B Rear diff mounting bush
2 x 031789B Rear anti roll bar link to anti roll bar bush
2 x 031790B Rear anti roll bar link to arm bush
Pcs/prod: 17/19
Required/car: 1
- Diagrams:

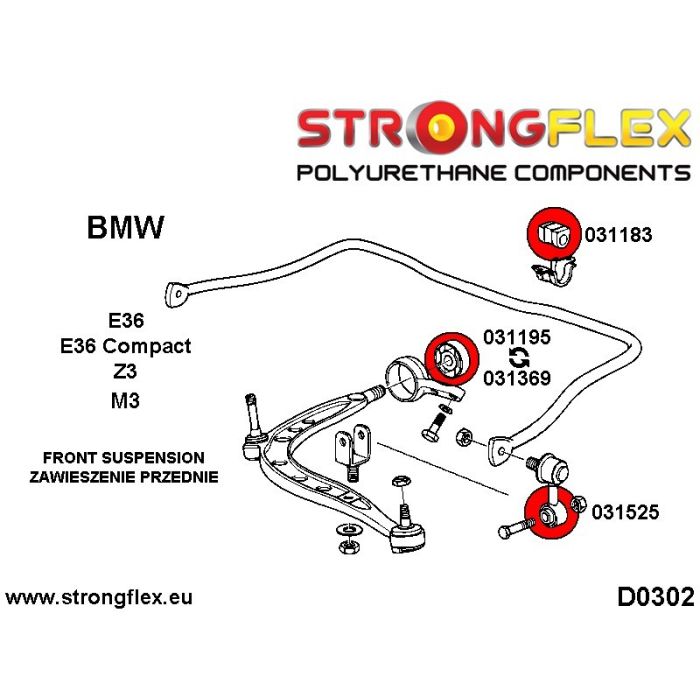

- D0302
- D0314
NOTE! *
Bush 031369 is only present in SPORT version 90ShA
Bush 031525 works only with anti roll bar link mount to lower arm, not the shock absorber.
Not fit the E36 M3 and Z3M models.
NOTE!
Measure Anti Roll Bar diameter before placing order.
NOTE! RELATED MAINLY WITH drift, motorsport ect.
Front Wishbone Bushes (031195 or 031369) can be prepared to fit the arm from the E46 model.
E46 Control Arm is longer and larger negative (wheel angle) can be achieved in comparison to the mass and E30/E36 geometry.
Place a note in the order if you are interested in such bushings.
Equivalent of "centric" bush is No. 031,737, and "eccentric" 031738.
These bushes can also be purchased separately.
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
More Information
EAN | 5902553519082 |
---|---|
Manufacturer | Strongflex |
