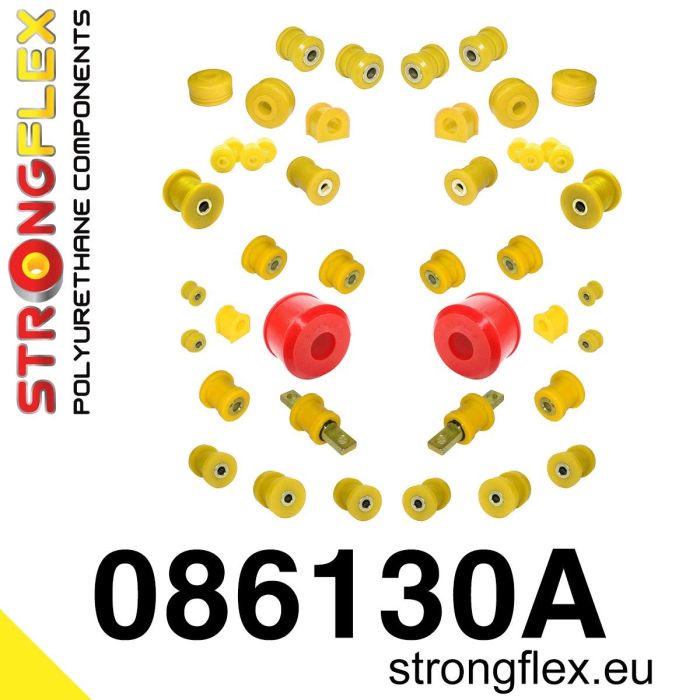

086130A: Full suspension bush kit polyurethane SPORT

KIT ID: 086130A

Name: Full suspension bush kit polyurethane SPORT

Fits:

• Honda Civic 88-91
• Honda CRX 88-91

Include:

• 4x 081192A Front upper wishbone bush SPORT
• 2x 081094A Front wishbone outer bush SPORT
• 2x 081164A Front wishbone inner bush SPORT
• 2x 081165A Front tie bar to chassis bush SPORT
• 2x 081109A Front eye bolt mounting bush SPORT


• 2x 081229A Front anti roll bar bush 18mm SPORT
  or
• 2x 081237A Front anti roll bar bush 19mm SPORT

• 4x 081101A Outer arm to hub bush and inner track arm bush 31mm SPORT
  or
• 4x 081107A Outer arm to hub bush and inner track arm bush 35mm SPORT

• 2x 081102A Rear lower shock mounting bush SPORT
• 4x 081108A Rear toe link arm bush SPORT
• 2x 081103A Rear upper outer link/hub bush SPORT
• 2x 081104A Rear trailing arm mount bush SPORT
• 2x 081105B Rear trailing arm mount bush

• 2x 081171A Rear anti roll bar bush 13mm SPORT
  or
• 2x 081172A Rear anti roll bar bush 15mm SPORT

• 2x 081196A Rear anti rol bar link bush SPORT
• 2x 081521A Rear anti rol bar link bush SPORT

NOTE!

For mounting this polyurethane bushes (081105B) you need old metal parts from your original bushes.
The inner diameter polyurethane bushings is 30mm.
Before ordering, check out the original diameter of the inner metal sleeve

Before purchase check front anti roll bar diameter (081227 18mm or 081237 19mm) and rear (081171 13mm or 081172 15mm).
Also check rear lower control arm bush diameter (081101 31mm or 081107 35mm)

Pcs / KIT: 36

Diagrams:

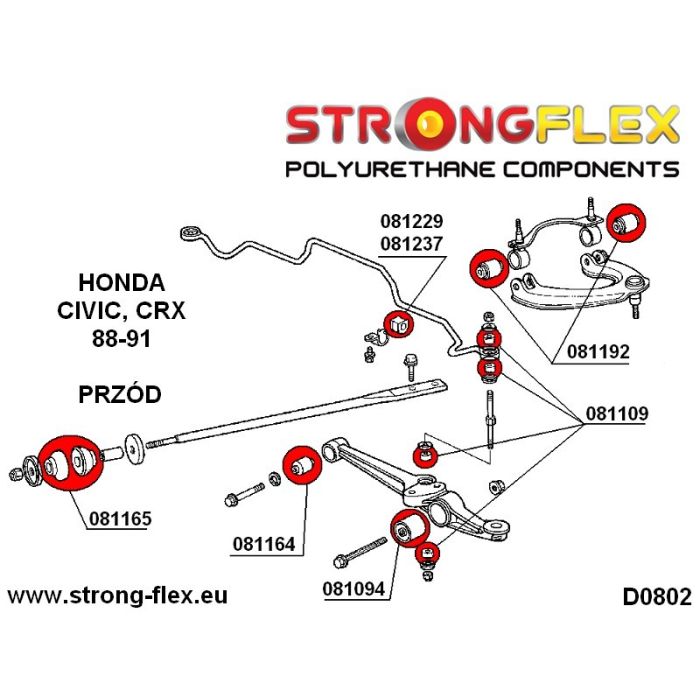

D0802 Front suspension Polyurethane Honda Civic CRX EC EE ED

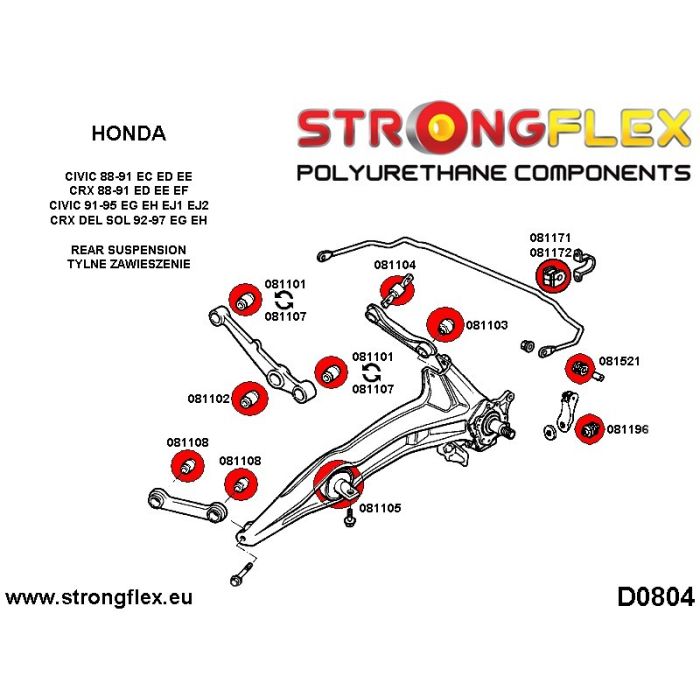

D0804 Rear suspension Polyurethane Honda Civic CRX delSol

Hardness: 90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
