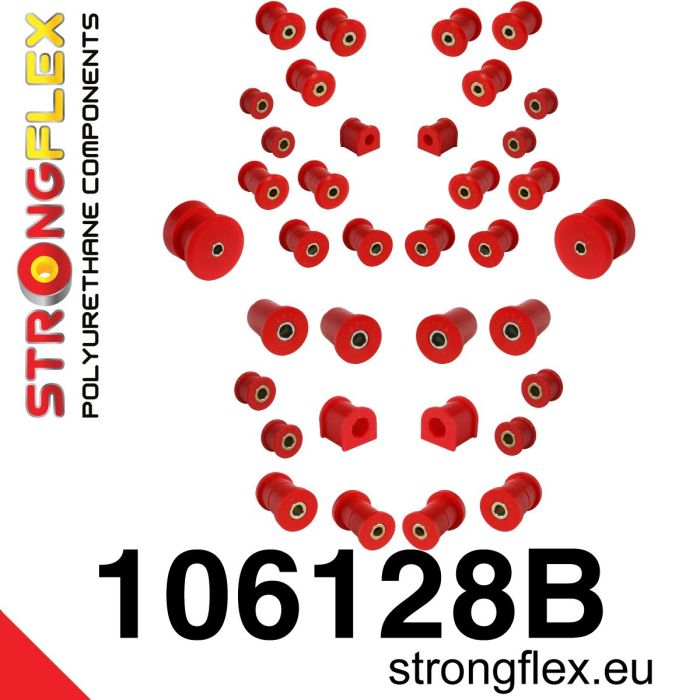

106128B: Full suspension polyurethane bush kit

KIT ID: 106128B

Name: Full Suspension Polyurethane bush KIT

Fits:

• Mazda MX-5
• Mazda NA 89-98

Include:

• 2x 101358BFront anti roll bar bush
  • Notes: Measure Anti Roll Bush diameter before placing order
• 8x 101359B Front and rear anti roll bar link bush
• 2x 101360B Front lower front suspension bush
• 2x 101361B Front lower rear suspension bush
• 4x 101362B Front upper arm bush
• 4x 101363B Rear lower inner suspension bush
• 4x 101364B Rear lower outer suspension bush
• 6x 101366B Rear upper inner & outer suspension bush
• 2x 101367BRear anti roll bar bush 11-22mm
  • Notes: Measure Anti Roll Bush diameter before placing order
• 2x 101368B Rear diff mount bush

Pcs / KIT: 36

Notes:

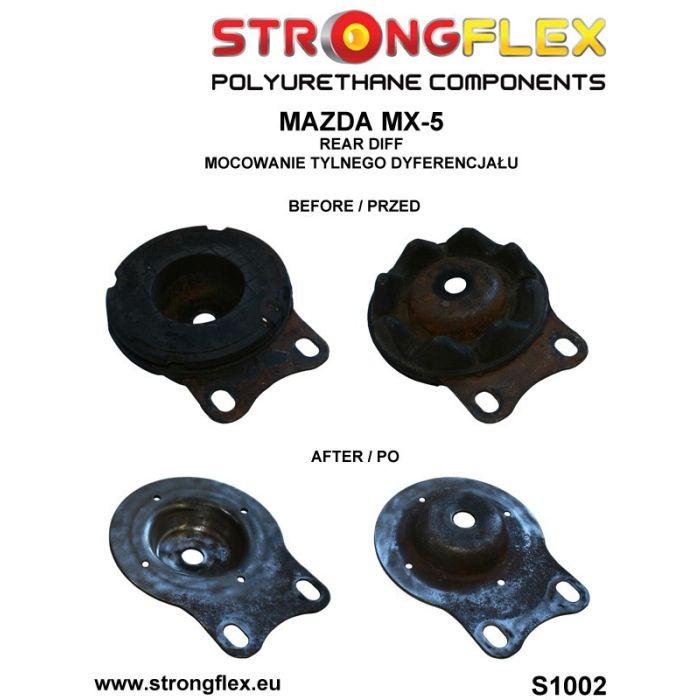

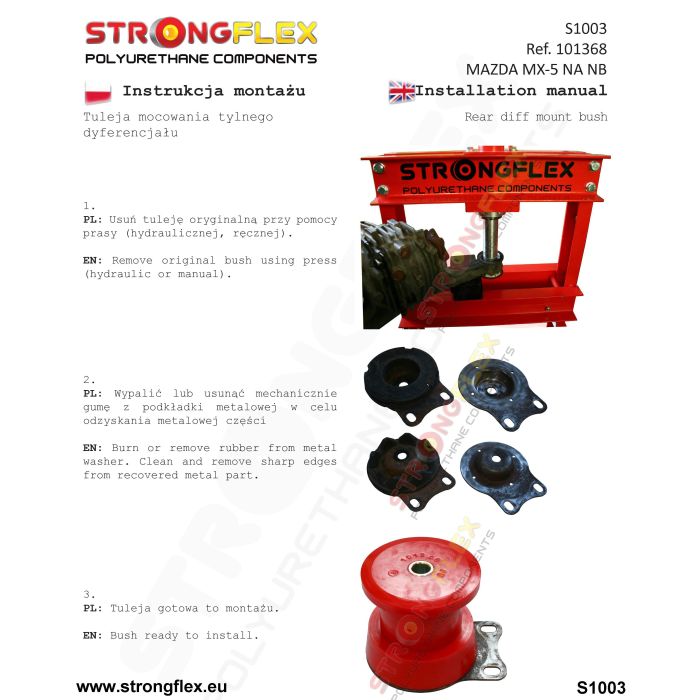

For mounting this polyurethane bushes (101368) you need old metal parts from your original bushes.

Diagrams:

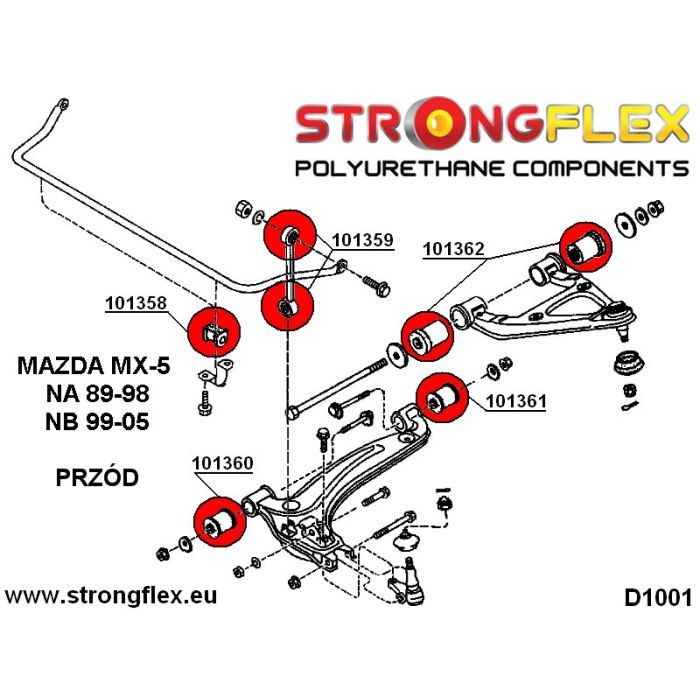

D1001 Front suspension Polyurethane Mazda MX-5 NA 89-98

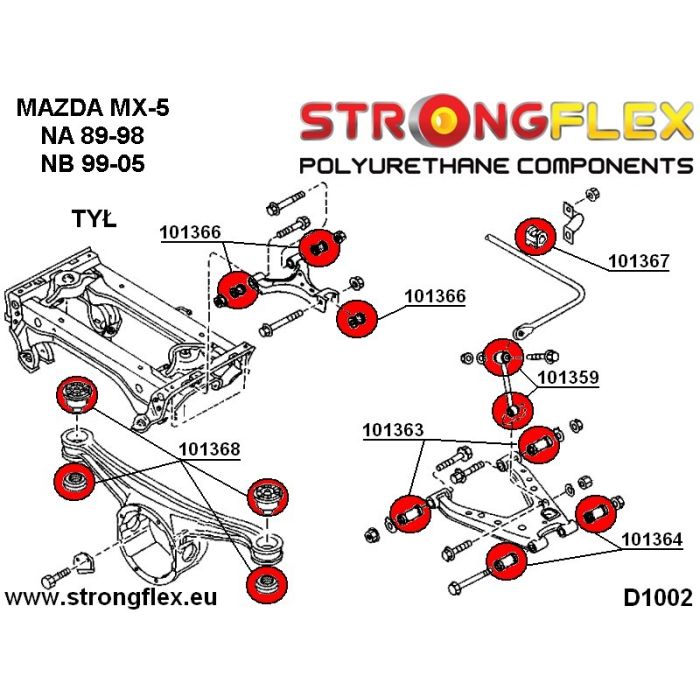

D1002 Rear suspension Polyurethane Mazda MX-5 NA 89-98

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
