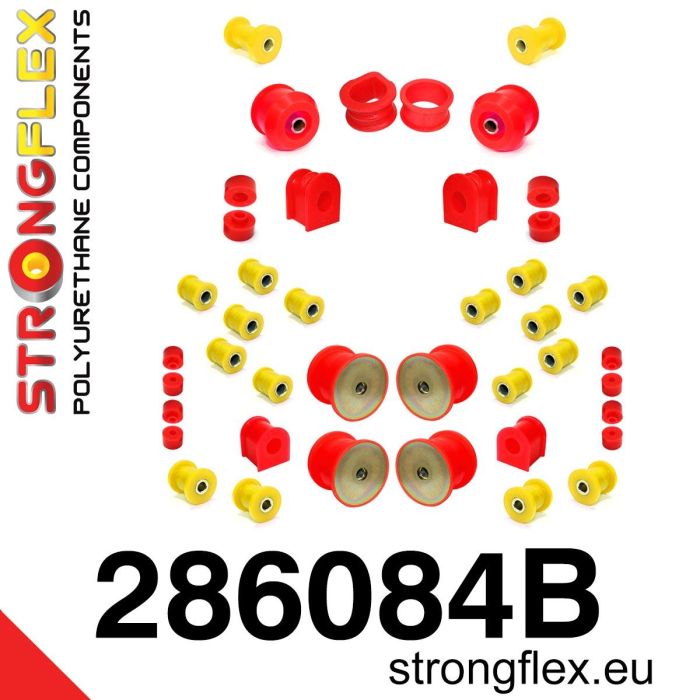

286084B: Full suspension bush kit

KIT ID: 286084B

Name: Full suspension bush kit

Fits:

• Nissan 200SX S13 88-93

Include:

• 2x 281207B Front Anti Roll Bar Bush 19-27mm
• NOTE! Measure Anti Roll Bush diameter before placing order.

• 1x 281261B Steering rack mount bush
• NOTE! Measure steering rack diameter before placing order

• 2x 281262B Front lower radius arm to chassis bush

• 2x 281263A Front inner track control arm bush 31.6mm SPORT
• or
• 2x 281397A Front inner track control arm bush 35mm SPORT

• 2x 281265B Front anti roll bar link bush
• 12x 281218A Rear upper control arm bush SPORT
• 4x 281267A Rear lower control arm bush SPORT
• 2x 281268B Rear anti roll bar mount 15-18mm
• NOTE! Measure Anti Roll Bush diameter before placing order

• 2x 281269B Rear anti roll bar link bush
• 4x 281270B Rear beam mounting bush


NOTE!
There are two different bushes of front wishbone 31,6mm (281263) and 35mm (281397).
Before placing order, please check bushes in your car.

To install the polyurethane bushing 281263 or 281397 you must burn the old rubber bush.
Do not remove the outer metal sleeve, it must be reused for this bushing!

Pcs / KIT: 33

Diagrams:

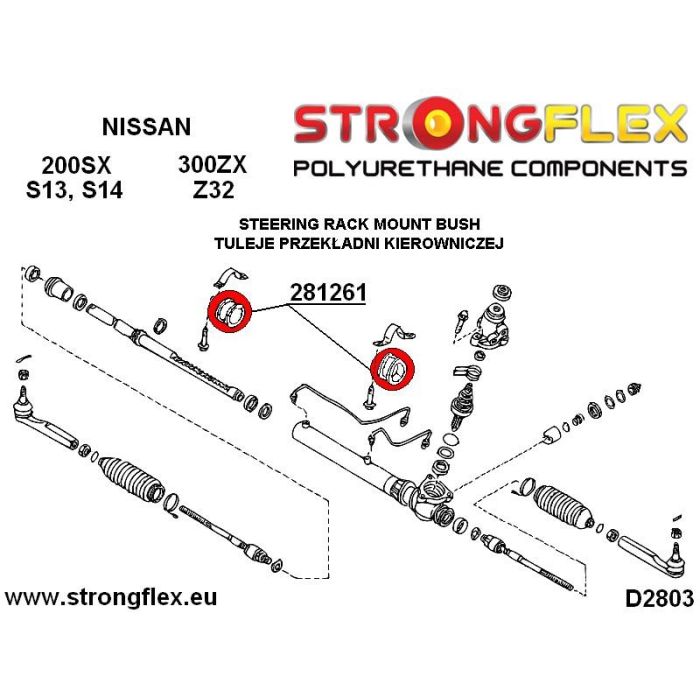

D2803 Steering rack mount Polyurethane Nissan 200SX S13 S14 300ZX Z32

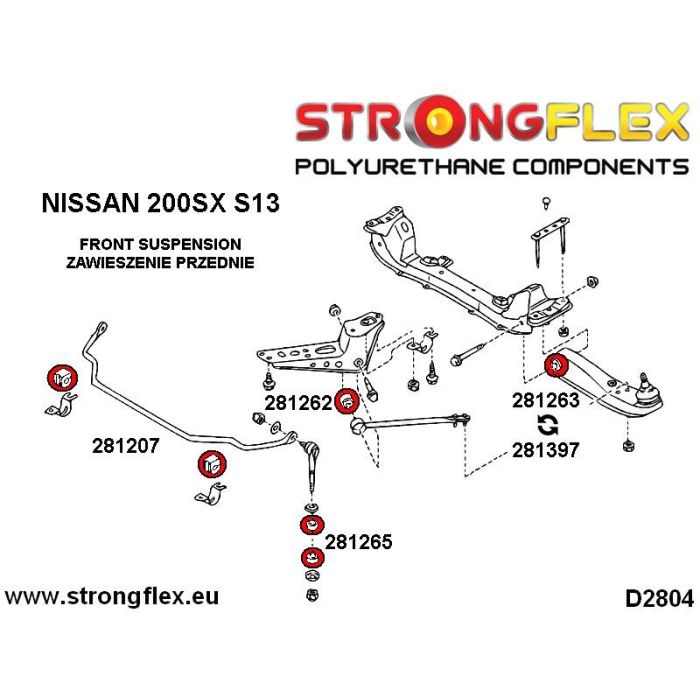

D2804 Front suspension Polyurethane Nissan 200SX S13

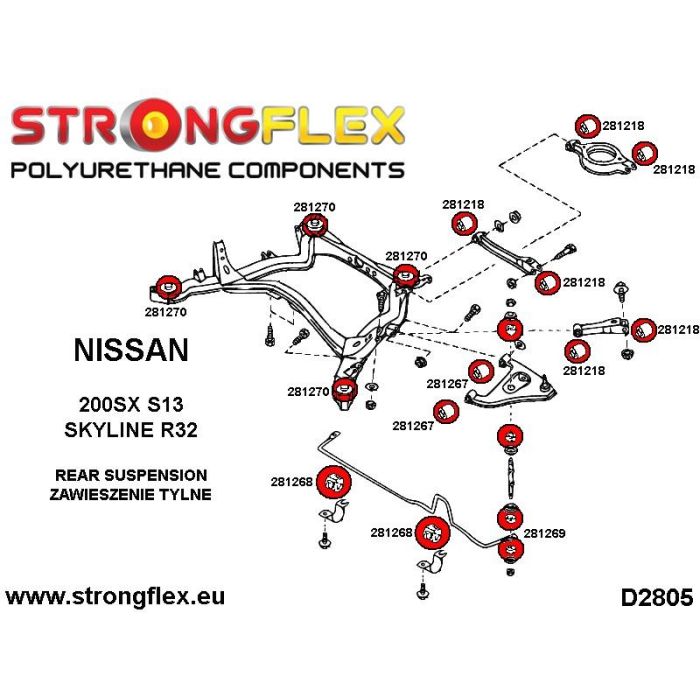

D2805 Rear suspension Polyurethane Nissan 200SX S13

Hardness: 80/90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
