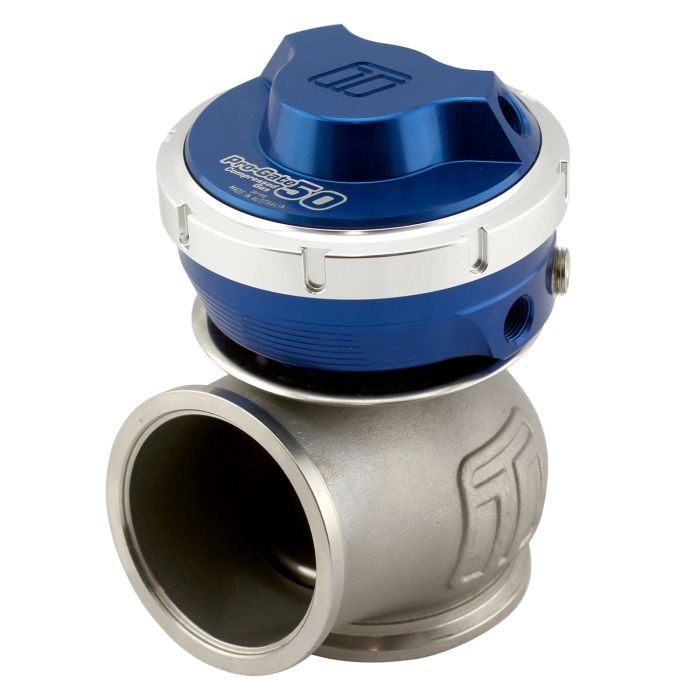

Turbosmart wastegate WG50CG GenV Progate 50 5psi Compressed Gas Blue

Manufacturer TurbosmartTurbosmart
SKU TS-0554-1201

  On demand



Turbosmart wastegate WG50CG GenV Progate 50 5psi Compressed Gas Blue

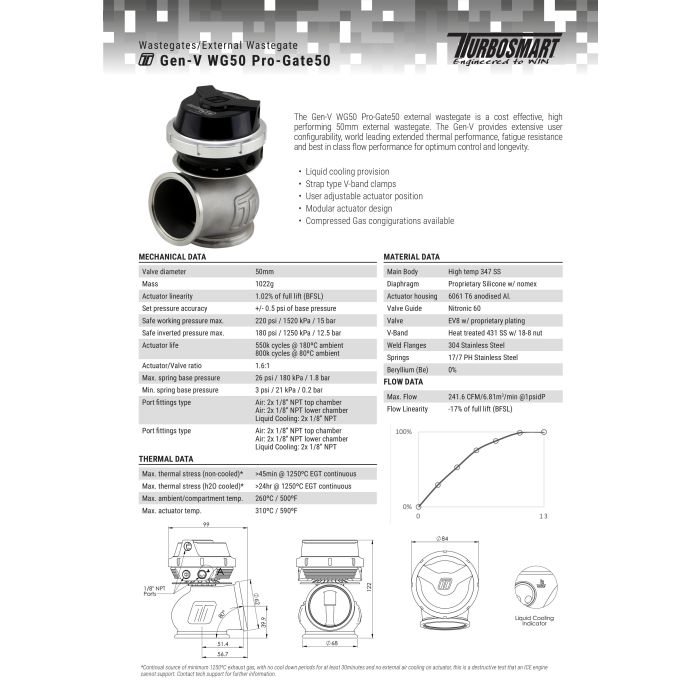

The Gen-V WG50CG Pro-Gate50 Compressed Gas external wastegate is a cost effective, high performing 50mm external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing, or compressed air WRC applications.


• Liquid cooling provision
• Strap type V-band clamps
• User adjustable actuator position
• Modular actuator design
• Compressed Gas congigurations available

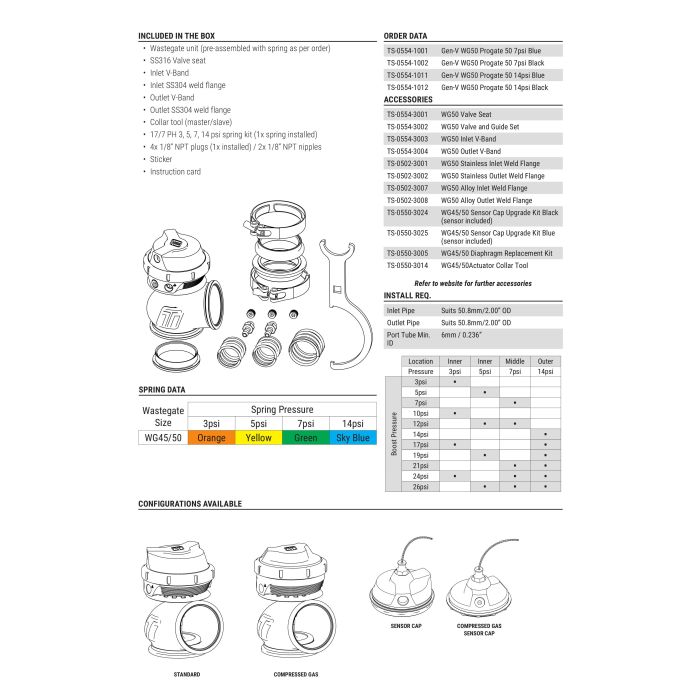

Included in the Box:
• Wastegate unit
• SS316 Valve seat
• Inlet V-Band
• Inlet SS304 weld flange
• Outlet V-Band
• Outlet SS304 weld flange
• Collar tool (master/slave)
• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
• Sticker
• Instruction card

More Information

Manufacturer TurbosmartTurbosmart
Wastegate Size 50-60mm
