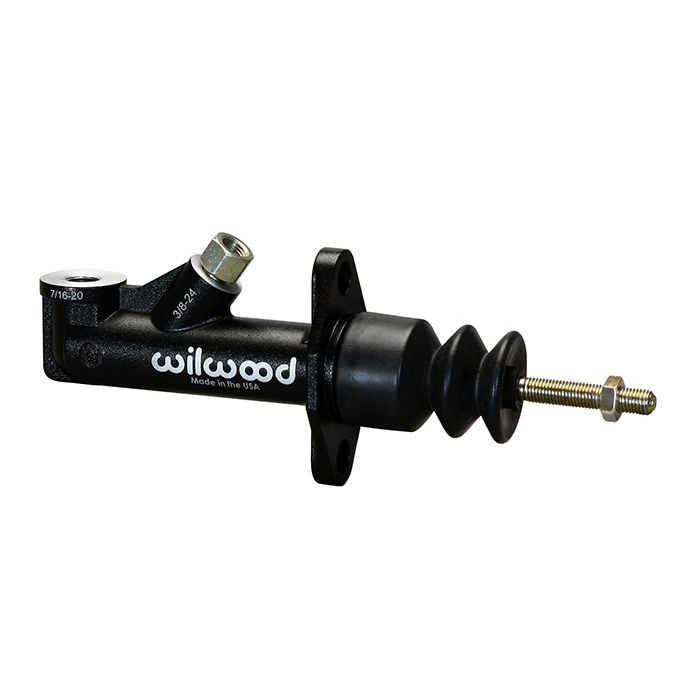

GS Compact Remote Reservoir Master Cylinder Wilwood 260-15089 0.625"

GS Compact Remote Master Cylinder - Product Summary

Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

Master Cylinder Dimensions

Bore Size 5/8"

Area (in²) 0.310

Stroke 1.25

Volume (cu in) 0.39

Master Cylinder Description

Type Single Outlet

Outlets 1

Material Aluminum

Finish Black E-coat

Reservoir

Res Type Remote

Additional Dimensions

Overall Length(in) 7.85"

Flange to End Length (in) 4.10

Inlet Size (in) 7/16-20

Outlet Size 1 (in) 3/8-24

Outlet Fit 1 (in) 3/8-24 IF Female
