Competition Intercooler Kit Wagner Tuning for Audi A4 B9/A5 F5 2,0TFSI

Manufacturer Wagner TuningWagner Tuning
SKU WT-200001126
EAN FM0000433

  On demand



Competition Intercooler Kit Wagner Tuning for Audi A4 B9/A5 F5 2,0TFSI

Boost the performance of your Audi A4 B9 2.0TFSI to a new level with our Competition high performance intercooler.

This engineering masterpiece is the key to a dramatic increase in performance.

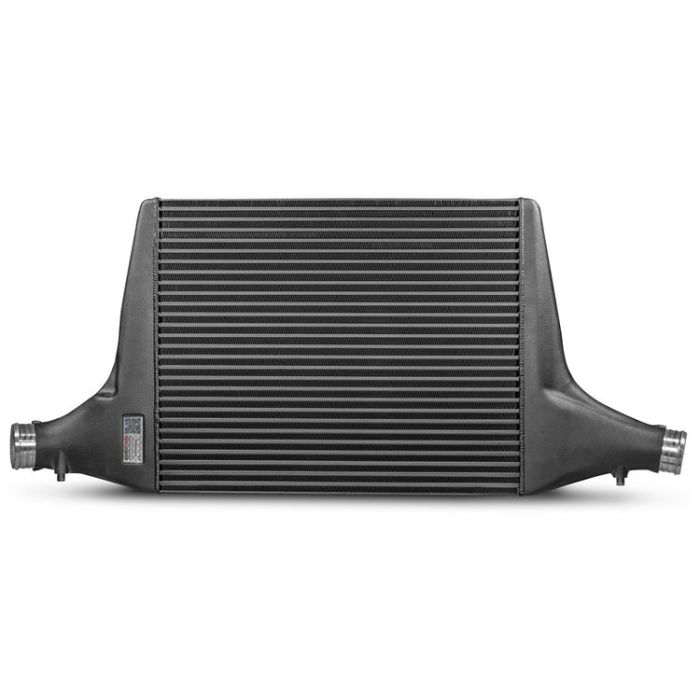

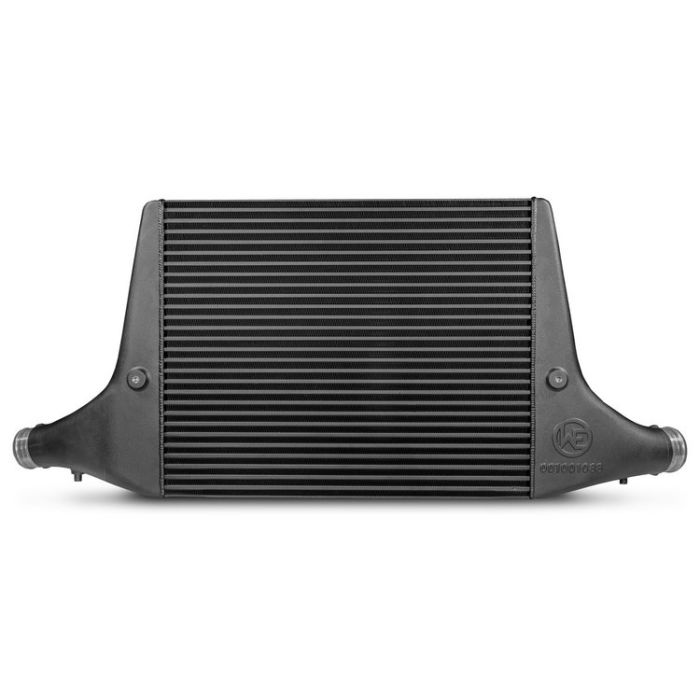

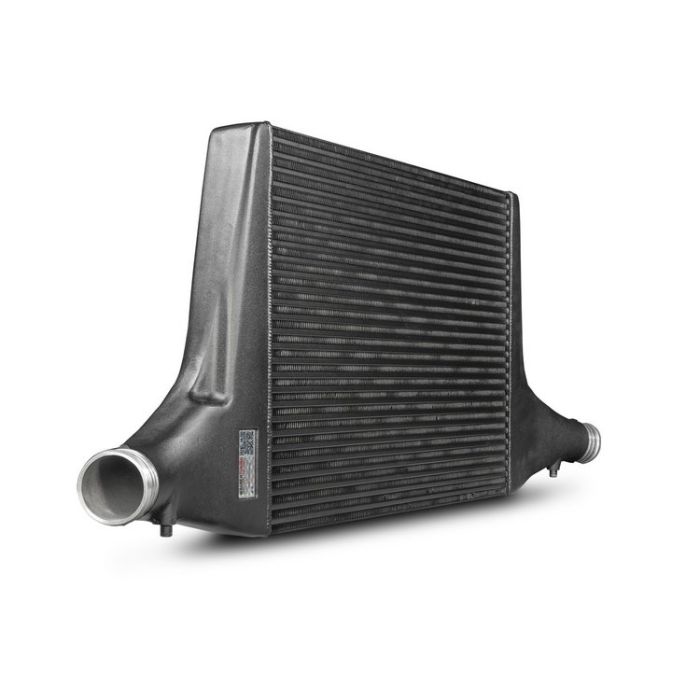

With impressive core dimensions of 550 mm x 445 mm x 70 mm (equivalent to 17,130 cc), this intercooler offers a 134% larger flow area and an astonishing 105% more charge air volume compared to the stock intercooler. The Competition high performance intercooler core, equipped with internal turbulators, guarantees the highest quality and efficiency. Although this intercooler is impressively large, it weighs just a light 9.5 kg. The end boxes are made of high-quality cast aluminum and have been optimized using CFD flow analysis to ensure optimal performance.

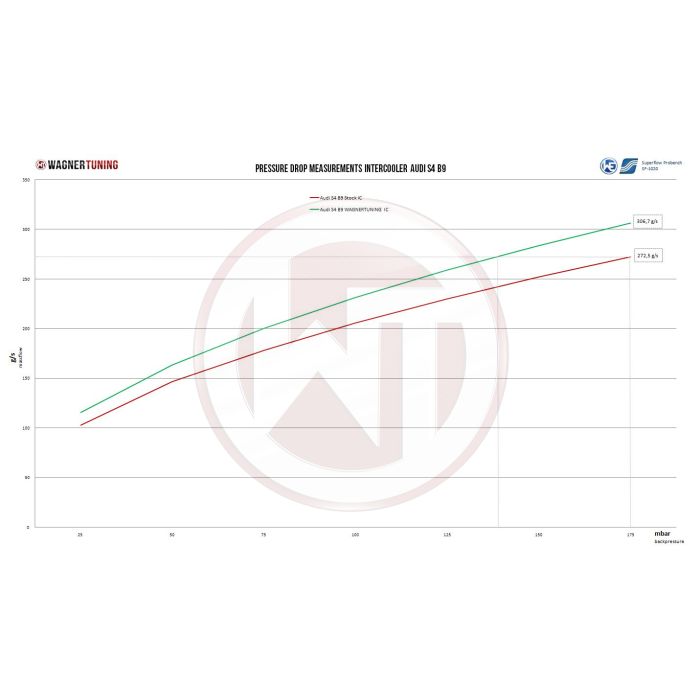

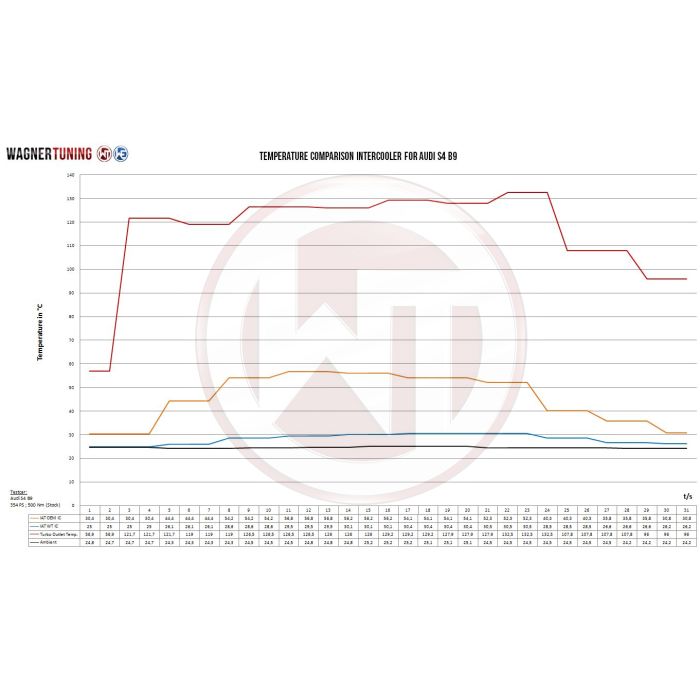

With connection diameters of Ø62 mm at the intercooler inlet and Ø67 mm at the intercooler outlet, this intercooler ensures smooth airflow. The result? Outstanding cooling performance with minimal back pressure. All our intercoolers are equipped with an anti-corrosion coating that not only protects against environmental influences, but also offers excellent heat conduction properties. This guarantees lasting and optimal cooling, resulting in an impressive increase in performance. This intercooler kit is completely ready to install and can be easily replaced with the stock intercooler - a true plug-and-play experience. Testing up to 6 bar and proven pressure stability, this intercooler is perfect for racing.

Prepare yourself for a whole new driving experience. With our Competition high-performance intercooler for the Audi A4 B9 2.0TFSI, you can reach the pinnacle of performance enhancement.

Your Audi deserves nothing but the best, treat it to the Wagner Tuning Competition high-performance intercooler.

The Wagner Tuning Competition intercooler kit for Audi A4 B9/A5 F5 suitable for the following vehicles:

Audi A4 B9 2,0TFSI ultra 140KW/190PS (2015-2018)
Audi A4 B9 2,0TFSI 185KW/252PS (2015-2018)
Audi A4 B9 35TFSI 110KW/150PS (2018+)
Audi A4 B9 40TFSI 140KW/190PS (2018+)
Audi A4 B9 45TFSI 180KW/245PS (2019+)
Audi A5 F5 2,0TFSI ultra 140KW/190PS (2016-2018)
Audi A5 F5 2,0TFSI 185KW/252PS (2016-2018)
Audi A5 F5 35TFSI 110KW/150PS (2018+)
Audi A5 F5 40TFSI 140KW/190PS (2018+)
Audi A5 F5 45TFSI 180KW/245PS (2019+)


Core dimensions original intercooler:
720mm x 145mm x 80mm
V=8,35 liter
A=1044 cm²

Core dimensions Wagner Tuning intercooler:
550mm x 445mm x 70mm
V=17,13 Liter
A=2447 cm²

Part number 200001126

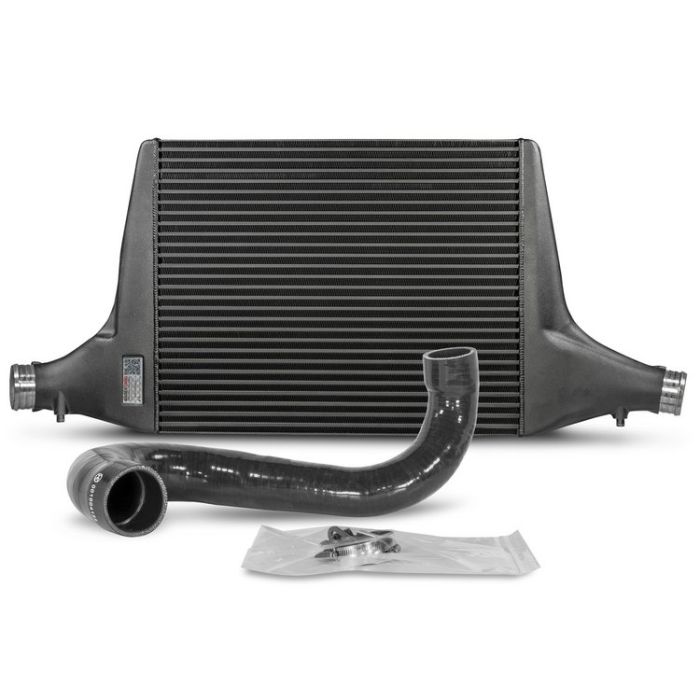

Kit comes with:
1 intercooler (black coated)
1 silicone hose (black)
1 mounting material
1 assembly instruction

More Information

EAN FM0000433
Manufacturer Wagner TuningWagner Tuning
Brand Audi
Model Audi A4, Audi A5
