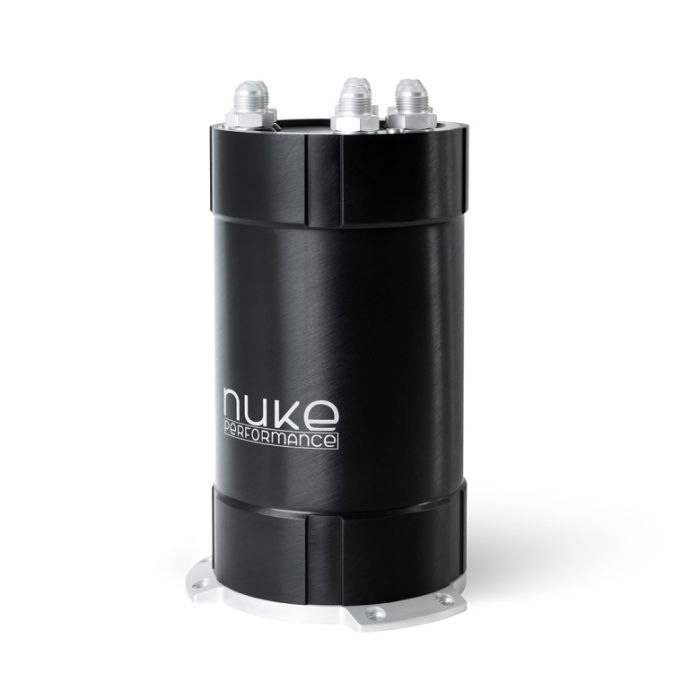

Nuke Performance 2G Fuel Surge Tank 3.0 liter for internal fuel pumps

The 2nd generation Nuke Performance 3.0 liter Fuel Surge Tank, now for 1, 2 or 3 internal high-pressure fuel pumps, top quality combined with outstanding performance.

This new updated version is the first of its kind specially developed and designed to mount up to three internal fuel pumps within the same unit. Every fuel pump uses its own AN-8 outlet that lets you choose between the most various setups thinkable.

•  Lightweight motorsports surge tank
•  Fits a single, dual or triple high-pressure fuel pump
•  Every fuel pump has its own AN-8 outlet
•  3.0 liter surge tank capacity
•  Made in Sweden
•  100% Safe for all type of fuels
•  Delivered with AN-8 to AN-8 Male fittings

With the possibility to mount up to three high-pressure fuel pumps, this over-sized fuel surge tank is ready to deliver fuel for more than 3500hp, this is the most universal fuel surge tank on the market.

Choose between single, dual or triple internal fuel pump setup

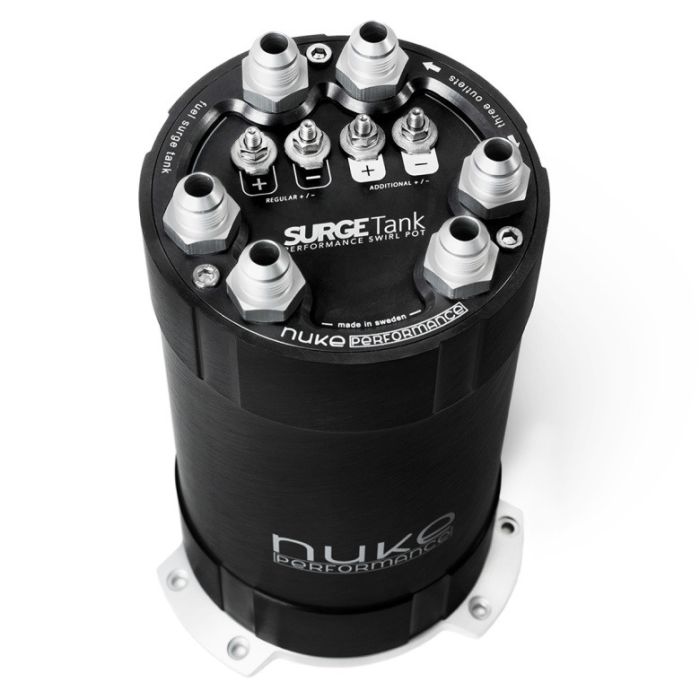

Run one, two or three fuel pumps individual or in two steps with multi electrical connectors on the top lid. Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance products.

Everything you need to mount a single, dual or triple high-pressure in-tank 39mm fuel pump is included, such as the AEM 320l, DW200, DW300, Walbro GST400, GST450, GST520, Aeromotive Stealth series and many more. The internal billet bracket fits up to three 39mm fuel pumps.

•  1-3 x Deatschwerks DW200 / DW300
•  1-3 x AEM 320L
•  1-3 x Aeromotive Stealth 325 / 340 / 450
•  1-3 x Ti Automotive Walbro GST400 / GST450 / GST520
•  1-3 x many other 39mm fuel pumps...

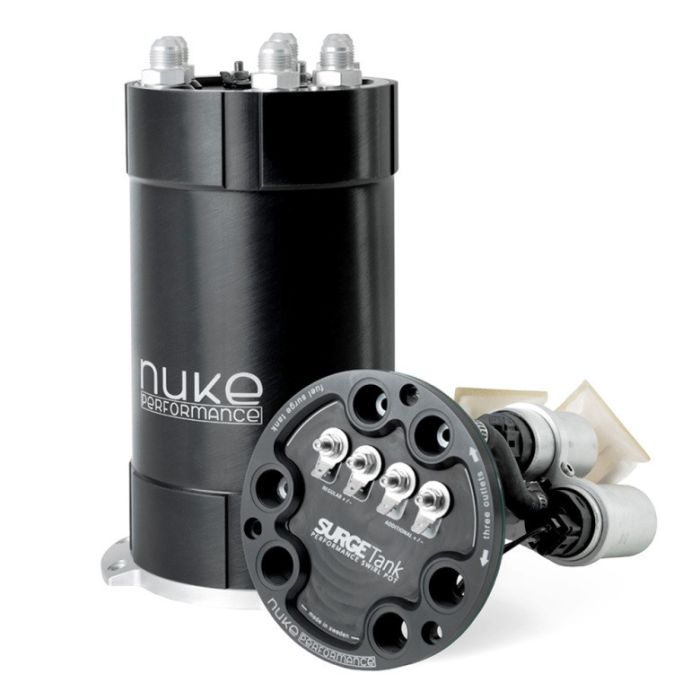

Fuel pumps are mounted with the billet internal mounting bracket

This second-generation Nuke Performance Fuel Surge Tank comes with an internal bracket for up to three internal fuel pumps with an outer diameter of 39mm, this is the most common fuel pump size and makes a perfect fit and combination for most setups thinkable. It also fits the very popular Ti Automotive, Walbro GST400, GST450 and GST520 fuel pumps and its design siblings such as Aeromotive Stealth 450.

High flow fuel pumps without customization of the OEM fuel tank

With our external fuel surge tank, you minimize the risk when running at a low fuel level, that the system does not cope with the extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which could result in fuel loss. With this setup, you can rely on maximum fuel delivery, a safe solution for your engine and setup even when the conditions are as demanding as they get. That you are able to mount high flow in-tank fuel pumps without larger customization of your stock fuel tank is almost as important, this is really the only setup you need. With this setup, you are able to deliver extreme fuel flow to your engine and thanks to the fuel surge tanks over-dimensioned 3.0 liter design you will have enough fuel at all conditions and at all times.

The 2G Fuel Surge Tank 3.0 liter for internal fuel pumps works as a buffer so the fuel pumps are always supplied with fuel for high outputs as the return line from your engine routs straight back into the FST, it stays full at all times.

How to mount fuel pumps within a Fuel Surge Tank?

The Surge Tanks from Nuke Performance comes delivered with everything you need to easily install all common fuel pumps, but we recommend adding one of our fuel pump mounting kits for optimal functionality and serviceability. For the 2G Fuel Surge Tank 3.0 liter for internal fuel pumps you need a single fuel pump kit for each fuel pump, so if you run, for example, two fuel pumps you need two single kits. All fuel pumps are securely mounted in all conditions thanks to the internal aluminum billet fuel pump bracket.

Single Fuel Pump Mounting Kit Part # : 150-20-103

How does a fuel surge tank work and how does it flow?

Your stock fuel pump or your aftermarket lift fuel pump within your stock fuel tank or your aftermarket fuel cell functions as a pickup fuel pump that fills the surge tank and ensures that the high-pressure fuel pumps within the oversized surge tank always have enough fuel to maximize fuel flow and minimize the risk of starvation that can seriously harm your engine. For more information, visit our guide that explains it even more.

Available in various setups to fill your every possible need

Our Fuel Surge Tank is available in several different setups, each one designed to perform to the maximum. It comes with a billet aluminum mounting bracket with a six-bolt pattern making a secure fitment in any installation. Depending on which setup you choose they come with a various number of electrical connects, but regardless of the model, it is always equipped with our over-dimensioned electrical connectors that can manage x10 the current used. For the 2G Fuel Surge Tank 3.0 liter for internal fuel pumps version, it is equipped with dual step connectors, letting you choose if you want to run the different fuel pumps on differents steps, fuses or at the same time.

Delivered with 6 x AN-8 fittings and plugs for all setups possible

Delivered with a billet aluminum mounting bracket for effortless mounting and 6 x AN-8 (3/4 UNF) to AN-8 Male fittings and 2 x AN-8 (3/4 UNF) Plugs to use when running 1 or 2 fuel pumps and want to block the left-over outlets. Other sized fittings are sold separately as accessories.

AN-8 (3/4 UNF) to AN-6 Male Part # : 700-01-101

AN-8 (3/4 UNF) to AN-8 Male Part # : 700-01-102

AN-8 (3/4 UNF) to AN-10 Male Part # : 700-01-103

Developed with high demands from motorsports

Co-developed with worldwide motorsports teams, this fuel surge tank is set to perform under all conditions and for any horsepower requirement. Used in all type of motorsports such as drag racing, drifting, GT racing, time attack and more. Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.

Made in Sweden, guaranteeing the highest possible quality

The 2G Fuel Surge Tank 3.0 liter for internal fuel pumps are developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!

Fuel Surge Tank for internal fuel pumps includes:

1 x 3.0 liter fuel surge tank

1 x 6 bolt pattern aluminum mounting bracket

6 x AN-8 (3/4 UNF) to AN-8 Male fittings

2 x AN-8 (3/4 UNF) Plugs

1 x Tripple mounting bracket for 39mm fuel pumps

3 x 1/4 BSPP to 8mm Barb (fuel hose) fittings

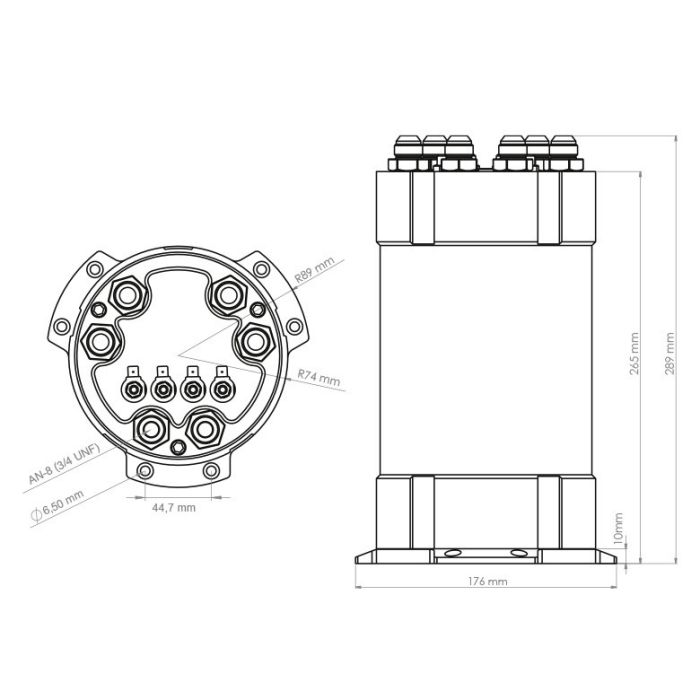

 Fuel Surge Tank Specifications

 Part # 150-01-206

 Length 265mm (10.43”)

 FST diameter Ø 148mm (5.82”)

 Bracket diameter Ø 178mm (7.00”)

 Mounting points 6 x M6 (Ø 6.5 mm / 0.25")

 Weight 2880g (6.12lb)

 Outlet thread AN-8 (3/4 UNF)

 Inlet thread AN-8 (3/4 UNF)

 Return thread AN-8 (3/4 UNF)

 Electrical connector M6, Max ≈125 Ampere / each



SPECIFICATIONS

Technical information :

• CNC manufactured from aluminium alloy 6063.

• Stainless steel bolts for long lasting function and appearance.

• Holds a volume of approximately 3 liters.

• Single outlets for all three internal fuel pumps.

• All fittings (6x) ar of AN-8 (3/4 UNF) thread.

• Delivered with 6 x AN-8 (3/4 UNF) to AN-8 Male and 2 x AN-8 (3/4 UNF) Plugs.

• Billet aluminium mounting bracket with 6x mounting points.

• Internal fuel pump bracket, for three fuel pumps.

• 2+2 electrical connector, run fuel pumps together or one by one.

• Laserengraved.

Measurements :

Height : 255 mm *

Diameter : 148 mm

Weight : 2780 g

* All measurements excluding the supplied fittings.

Fits fuel pumps:

1 - 3 x AEM 320L

1 - 3 x Aeromotive Stealth 325

1 - 3 x Aeromotive Stealth 340

1 - 3 x Aeromotive Stealth 450

1 - 3 x Deatschwerks DW200

1 - 3 x Deatschwerks DW300

1 - 3 x Deatschwerks DW300c

1 - 3 x Ti Automotive Walbro GSS340

1 - 3 x Ti Automotive Walbro GSS341

1 - 3 x Ti Automotive Walbro GSS342

1 - 3 x Ti Automotive Walbro GST400

1 - 3 x Ti Automotive Walbro GST400

1 - 3 x Ti Automotive Walbro GST450

1 - 3 x Ti Automotive Walbro GST520
