Universal Check Valve Kit 6AN Radium Engineering

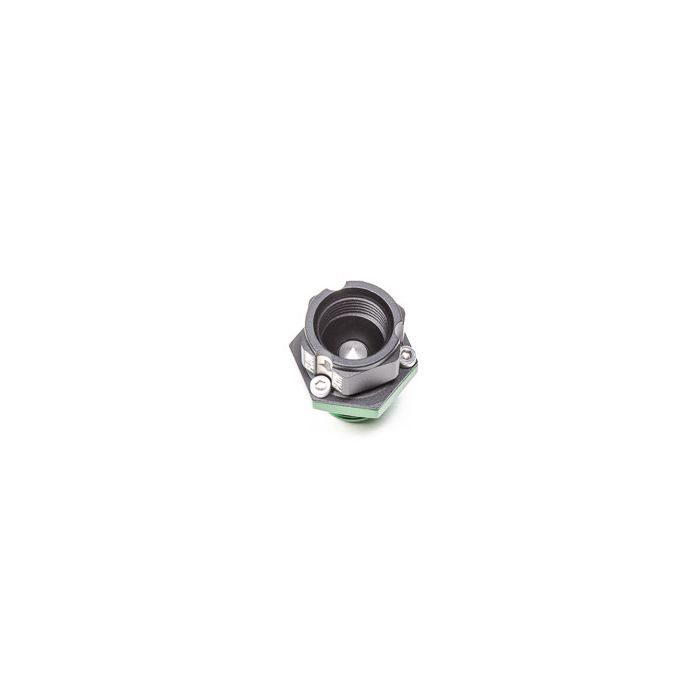

A 1-way check valve permits flow in 1 direction only. The Radium Engineering universal check valve features a lightweight anodized aluminum body with FKM seals and stainless steel hardware. As shown below, the internal plunger's aerodynamic shape warrants a smooth laminar stream.

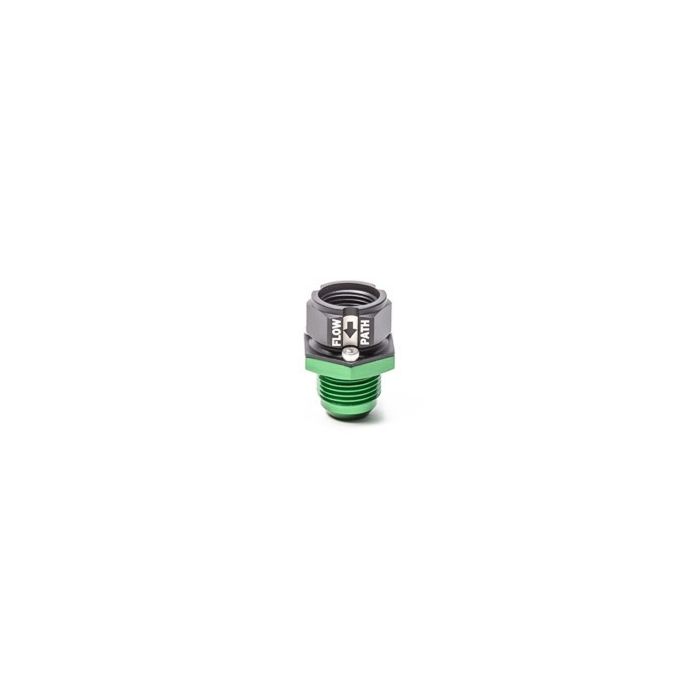

As seen all female -AN ports can accept 37 degree flare male fittings and/or ORB (O-ring boss) male fittings. As depicted below, the flow direction is laser etched on the side of the part.

The check valve is compatible in multiple applications including gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

SPECIFICATIONS

Body Seal: FKM

Plunger Seal: FKM

Hardware: Stainless Steel

Spring Material: Stainless Steel

Plunger Material: Stainless Steel

Body Material: Anodized Aluminum

Check Valve Type: Spring-Loaded Piston

Large Hex: 30mm (or 1-3/16")

Length, No Adapters: 1.72" (43.6mm)

Cracking Pressure: 0.3 psi @ 70F

Max Operating Pressure: 1000+psi @ 70F

Backflow Holding Pressure: 1000+psi @ 70F

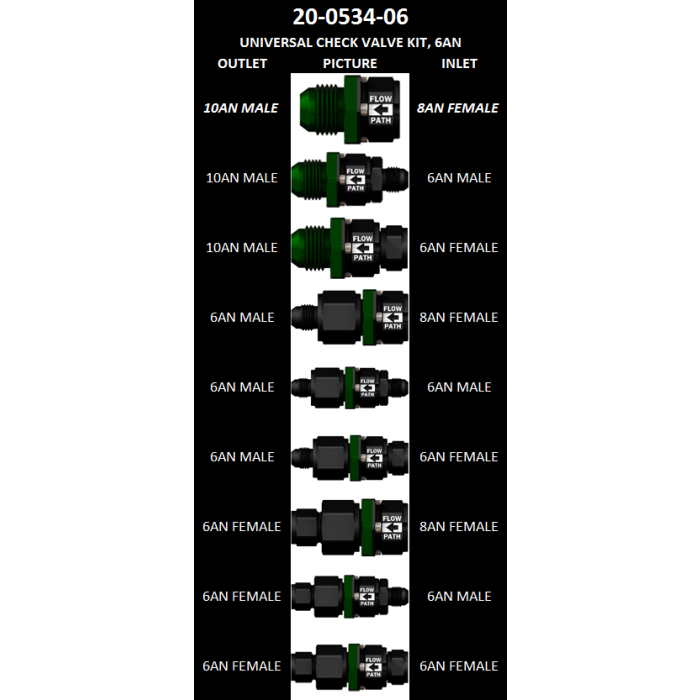

In it's native form without adapter fittings, the universal check valve uses a 10AN male outlet and a 8AN female inlet.

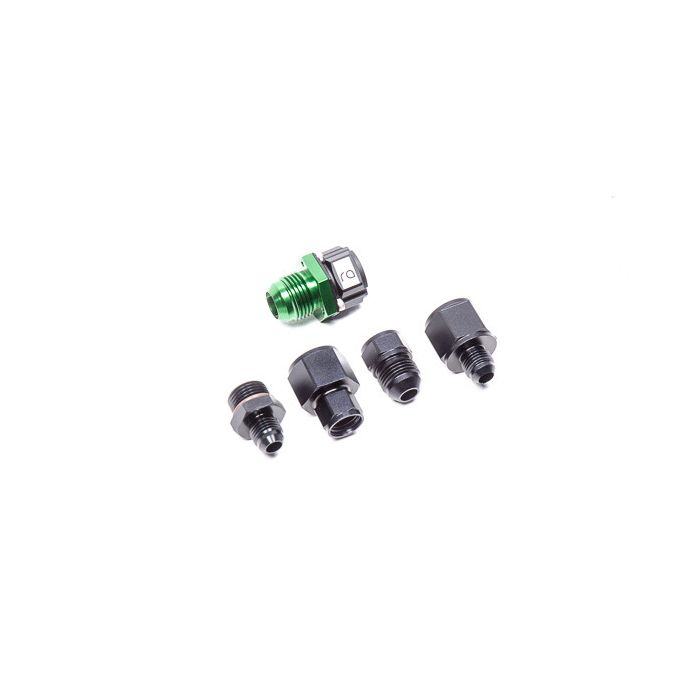

The 6AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 6AN male and/or 6AN female.
