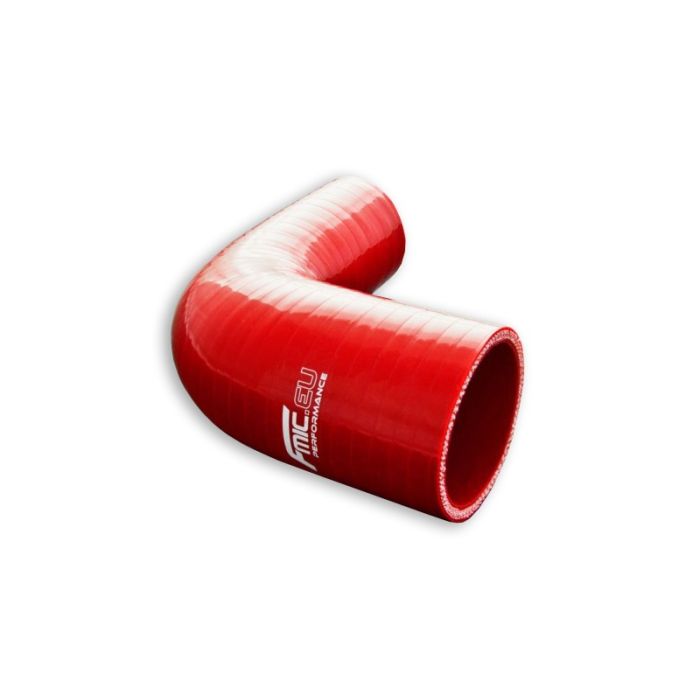

Silicone Reducer elbow 90' 54/76mm Red

FMIC.EU silicone connectors are a professional product made from highest grade of silicone with multi-layer reinforcement. Years of research and development and working with the best drifters and drag racers across Europe resulted in silicone connectors able to withstand tremendous pressures generated in the intake systems. Additional resistance to coolant, fuel fumes, grease and engine oil extends the use of our silicones to cooling systems, crankcase vents and many more. All FMIC.EU silicones are reinforced with 5 or 6 layers (depending on the diameter) of our unique pattern, developed in-house braid that despite being very strong provides high flexibility.
FMIC.EU silicones are a perfect choice when building a professional intake or cooling systems and are used by many renowned tuning workshops from all over the world.

Type: 90' Reducer Elbow

Interior dimensions: 54mm / 76mm (external + 12mm)

Length: 150mm each leg

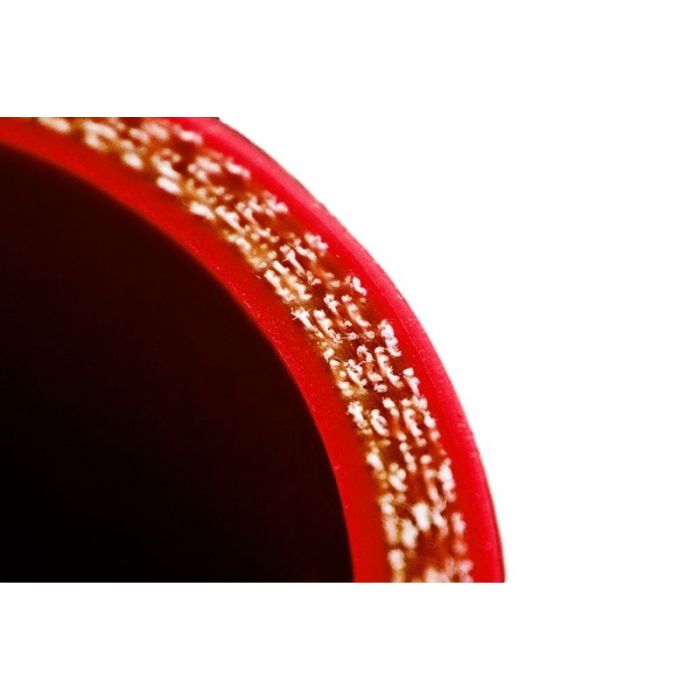

Wall thickness: 6mm, 5x braid

Tested up to 7 bar at temperatures from -60°C up to +260°C

For this size You need clamp	SGB	T-clamp	American
54mm	64-67mm	64-72mm	51-70mm
76mm	86-91mm	83-91mm	76-92mm

Kolor - Red
