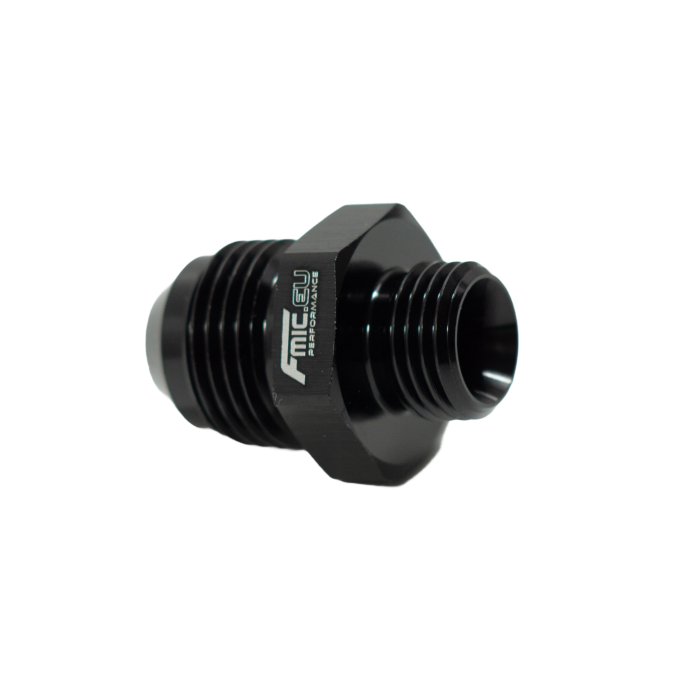

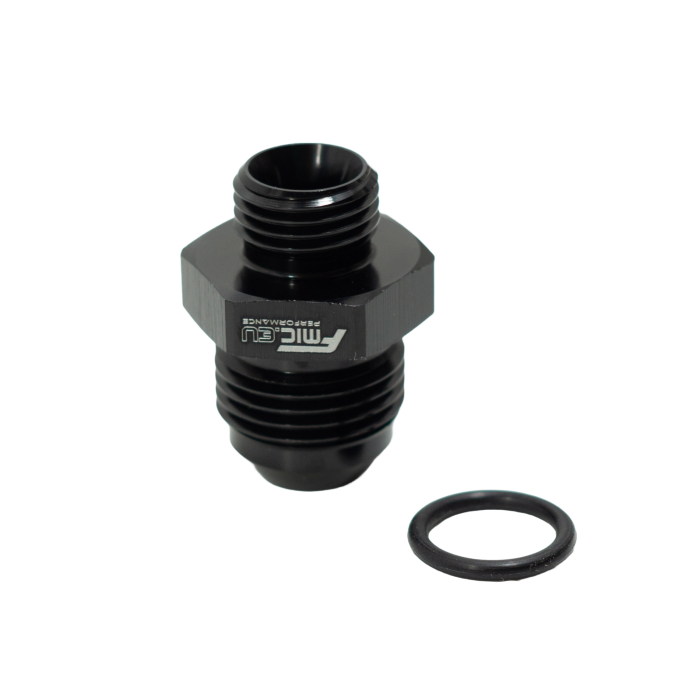

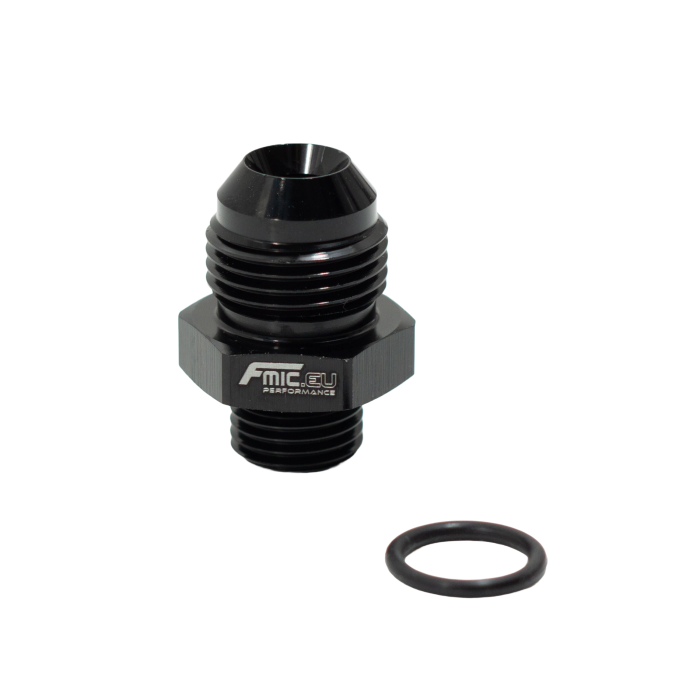

AN6 ORB Male To AN8 Male JIC Hose Fitting Adapter Black
In stock
AN6 ORB Male To AN8 Male JIC Hose Fitting Adapter Black
AN6 ORB Male To AN8 Male JIC Hose Fitting Adapter Reusable.
Application:
-Fuel, oil, lubrication systems, etc.
Product specification:
- Male thread AN6 ORB
- Male thread AN8
- Lightweight, durable aluminium alloy
- CNC machined to aerospace grade
- High quality anodizing for durability and strength
- Colour: blue or black
All our aluminium connectors and adapters are precisely CNC machined to the highest standards to Aerospace Grade, which ensures a durable, tight, safe and leak free connection.
Other related fittings, connectors and adapters are available in our shop.
AN size | Hose size | Thread size UNF |
AN3 | AN3 3,2mm (1/8") | 3/8" |
AN4 | AN4 5mm (3/16") | 7/16" |
AN6 | AN6 8mm (5/16") | 9/16" |
AN8 | AN8 10mm (3/8") | 3/4" |
AN10 | AN10 12,7mm (1/2") | 7/8" |
AN12 | AN12 15,9mm (5/8") | 1-1/16" |
Kolor - Black
More Information
Manufacturer | FMICEU |
---|---|
Brand Sort Order | 8990 |
