Setrab Proline intercooler core 316x329x70mm

Manufacturer SetrabSetrab
SKU SE-58-11828
The lowest price of the last 30 days before the discount: AED 1,877.19

  Out of stock

Setrab Proline intercooler core 316x329x70mm

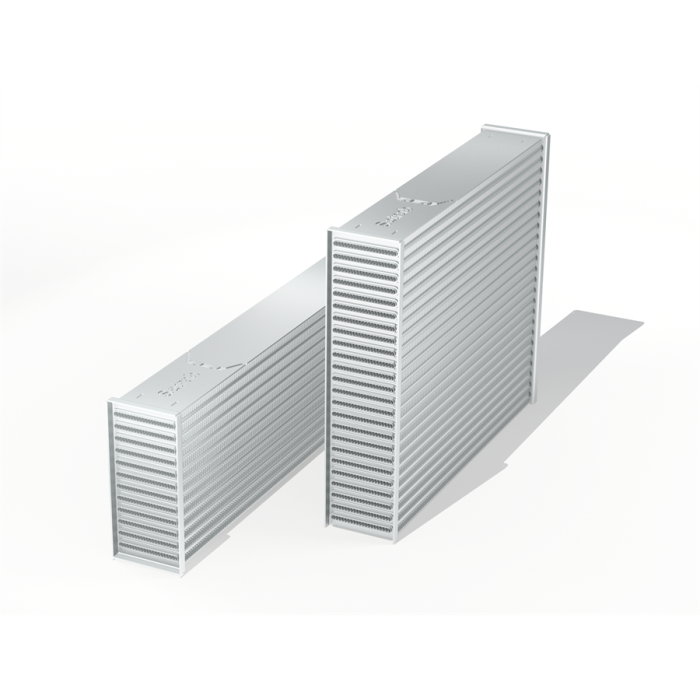

The Setrab ProLine intercooler core is the latest Setrab solution for those who want maximum performance and maximum cooling, thanks to the highly efficient "bar and plate" core that reduces air turbulence and very low resistance, effectively cools the air and keeps it at a constant temperature.

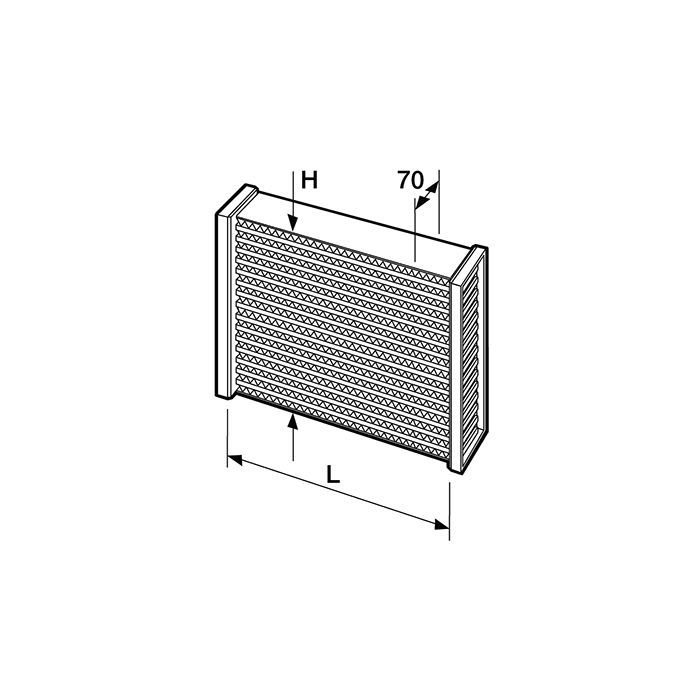

316mm x H 329mm x T 70mm

Technical Specifications
Working Pressure

0-2.5 bar(g) dynamic

Pressure Pulsation Endurance 100k pulsations, 0-3 bar(g), 0.5-1Hz, 200°C air temp
Max Pressure  4 bar(g)
Burst Pressure 6 bar(g)
Leak Test 1.5 bar(g) (core)
Working Temperature -40°C to 220°C

Corrosion Endurance

20 days SWAAT G85-94 A3
960h ISO 9227 NSS

Inner Cleanliness

ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10mg impurities total

General Dimensional Tolerances

ISO 2768-v

Material  Aluminium alloys
