Setrab Proline intercooler core 382x170x70mm
Manufacturer
Setrab
Setrab SKU SE-58-11824
Price: AED 1,902.81
The lowest price of the last 30 days before the discount: AED 1,902.81
On demand
Setrab Proline intercooler core 382x170x70mm

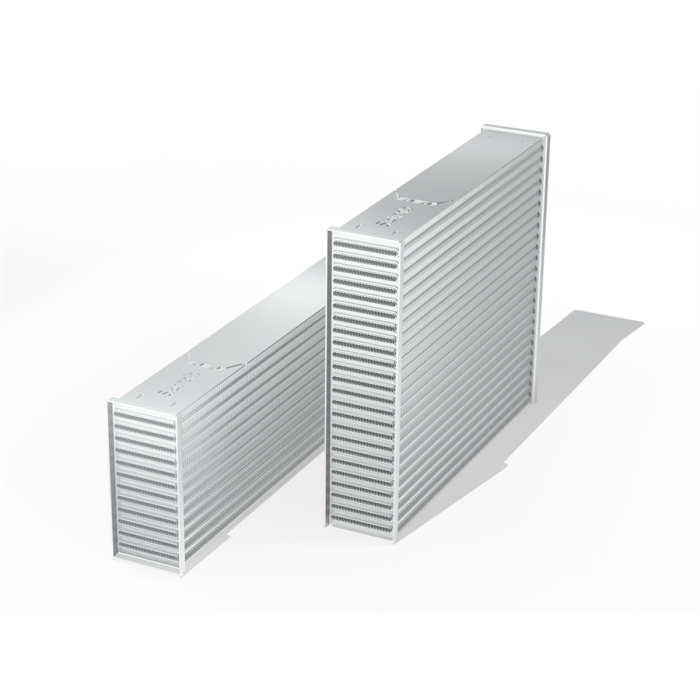

The Setrab ProLine intercooler core is the latest Setrab solution for those who want maximum performance and maximum cooling, thanks to the highly efficient "bar and plate" core that reduces air turbulence and very low resistance, effectively cools the air and keeps it at a constant temperature.

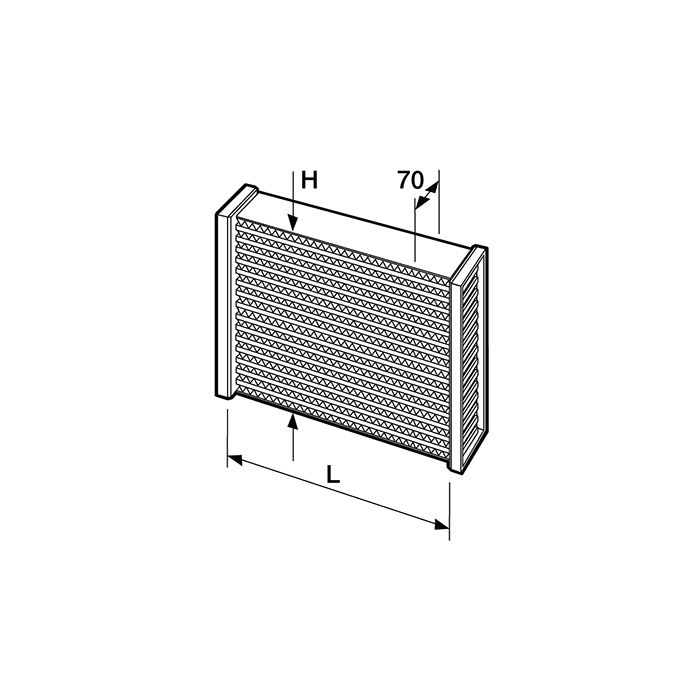

L 250mm x H 382mm x T 70mm
| Technical Specifications | |
| Working Pressure |
0-2.5 bar(g) dynamic |
| Pressure Pulsation Endurance | 100k pulsations, 0-3 bar(g), 0.5-1Hz, 200°C air temp |
| Max Pressure | 4 bar(g) |
| Burst Pressure | 6 bar(g) |
| Leak Test | 1.5 bar(g) (core) |
| Working Temperature | -40°C to 220°C |
|
Corrosion Endurance |
20 days SWAAT G85-94 A3 |
| Inner Cleanliness |
ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10mg impurities total |
| General Dimensional Tolerances |
ISO 2768-v |
| Material | Aluminium alloys |
More Information
| Manufacturer | Setrab |
|---|
