Setrab Proline intercooler core 382x170x70mm
Setrab Proline intercooler core 382x170x70mm
Manufacturer
Setrab
Setrab
SKU
SE-58-11838
Price:
AED 2,625.80
The lowest price of the last 30 days before the discount:
AED 2,625.80
On demand
Setrab Proline intercooler core 382x170x70mm
The Setrab ProLine intercooler core is the latest Setrab solution for those who want maximum performance and maximum cooling, thanks to the highly efficient "bar and plate" core that reduces air turbulence and very low resistance, effectively cools the air and keeps it at a constant temperature.

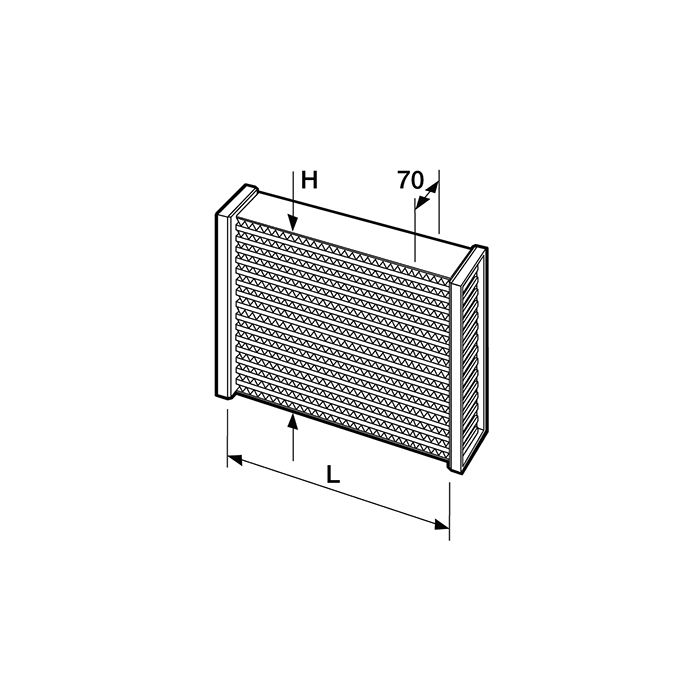

L 514mm x H 329mm x T 70mm
Technical Specifications
Working Pressure
0-2.5 bar(g) dynamic
Pressure Pulsation Endurance
100k pulsations, 0-3 bar(g), 0.5-1Hz, 200°C air temp
Max Pressure
4 bar(g)
Burst Pressure
6 bar(g)
Leak Test
1.5 bar(g) (core)
Working Temperature
-40°C to 220°C
Corrosion Endurance
20 days SWAAT G85-94 A3
960h ISO 9227 NSS
Inner Cleanliness
ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10mg impurities total
General Dimensional Tolerances
ISO 2768-v
Material
Aluminium alloys
The Setrab ProLine intercooler core is the latest Setrab solution for those who want maximum performance and maximum cooling, thanks to the highly efficient "bar and plate" core that reduces air turbulence and very low resistance, effectively cools the air and keeps it at a constant temperature.
L 514mm x H 329mm x T 70mm
| Technical Specifications | |
| Working Pressure |
0-2.5 bar(g) dynamic |
| Pressure Pulsation Endurance | 100k pulsations, 0-3 bar(g), 0.5-1Hz, 200°C air temp |
| Max Pressure | 4 bar(g) |
| Burst Pressure | 6 bar(g) |
| Leak Test | 1.5 bar(g) (core) |
| Working Temperature | -40°C to 220°C |
|
Corrosion Endurance |
20 days SWAAT G85-94 A3 |
| Inner Cleanliness |
ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10mg impurities total |
| General Dimensional Tolerances |
ISO 2768-v |
| Material | Aluminium alloys |
