COMPATIBILITY
99-06 BMW E46 3-series or M3
*NOT COMPATIBLE WITH CONVERTIBLES

This comprehensive installation kit includes everything needed to install a Radium fuel surge tank. The base price is for the installation kit ONLY. The fuel surge tank (FST) is sold separately.

The BMW install kit locates the FST in a collision-safe area of the trunk behind the rear seat. The bolt-on aluminum mounting bracket features rubber isolating grommets to reduce fuel pump noise. Also included is a weatherproof fuse and relay to drive the new FST fuel pump. A Delphi weatherpak connector is also provided for the fuel pump trigger activation to make the entire system modular.

The PTFE hoses mate at a junction point in the trunk using the bulkead plate and 4 bulkheads fittings for interior aesthetics.

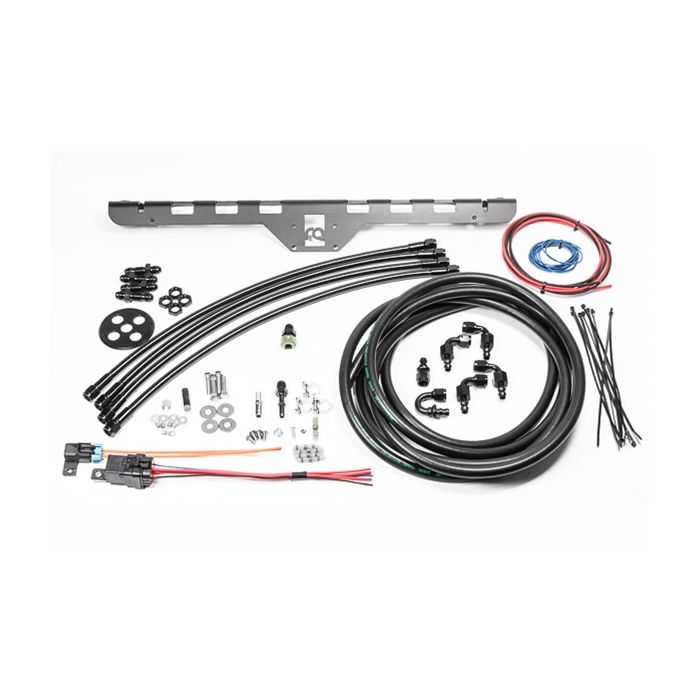

INCLUDES

-Preassembled 3/8" PTFE Hoses
-Aluminum Mounting Bracket with Vibration Isolators
-AN Bulkhead and Adapter Fittings
-Stainless Steel Hardware
-40 amp Relay and 25 amp Fuse
-Anodized Aluminum Bulkhead Plate

Instruction PDF
