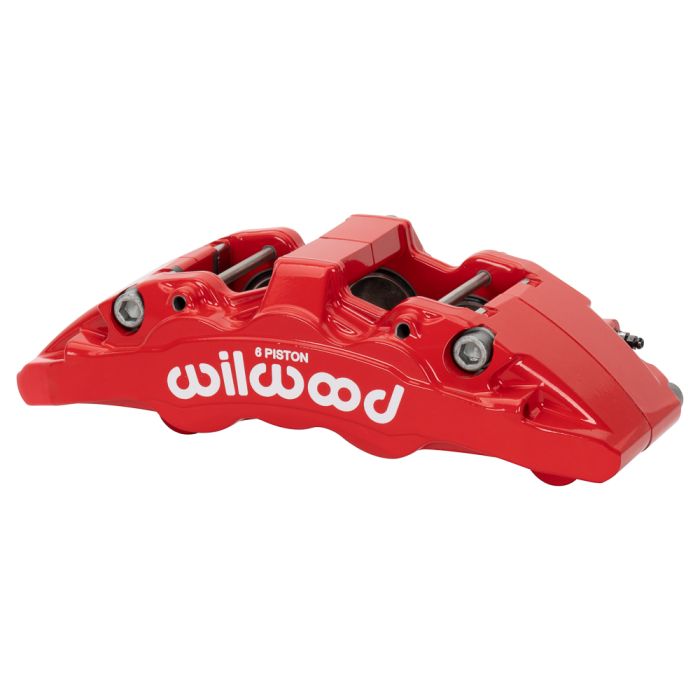

Wilwood 120-16825 AeroDM Lug Mount Caliper Right 6 Pistons Red
AeroDM Lug Mount
The new AeroDM forged six piston calipers deliver heavy duty stopping power for the street and off road. The caliper incorporates race technology into a body design with widespread adaptability. With variable lug geometry the AeroDM offers direct spindle mounting with proprietary 13.38” diameter rotors on many late model trucks with multiple options for piston volume give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new AeroDM the latest innovation to the Aero4/6 series of calipers. It has been designed with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly for extra rigidity.
The body of Aero series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
Pistons
Piston Count
6
Piston Area (in²)
6.52
Piston Type
Stainless
Dust Boot
No
Rotor Dimensions
Rotor Width (in)
1.25
Rotor Diameter(in)
13.38
Pad Dimensions
Pad Area (in²)
11.1
Pad Volume (in³)
5.2
Duty Rating & Material
Material
Forged Aluminium
Weight(Lbs)
8.7
Colors & Finish
Color
Red
Finish
Red Powder Coat
Mounting
Mount Center(in)
7.56
Mount Position
Mount Side
Right Hand
Mount Type
Lug
Specifications
Rotor Compatibility
Rotor Width (in)
1.25
Maximum Rotor Width (in)
1.28
Minimum Rotor Width (in)
1.10
Maximum Rotor Diameter(in)
13.38
Minimum Rotor Diameter(in)
12.19
Brake Pad Specifications
Brake Pad Type 1
6617
Brake Pad Type 2
N-A
Brake Pad Type 3
N-A
Total Pad Area (in²)
11.1
Total Pad Volume (in³)
5.2
Mount
Piston Specifications
Piston 1 Bore (in)
1.75
Piston 2 Bore (in)
1.62
Piston 3 Bore (in)
1.62
Total Piston Area (in²)
6.52
Mounting Specifications
Mount Type
Lug
Mount Side
Right Hand
Mount Center(in)
7.56
Mount Hole Size(in)
0.55
Mount Height(in)
Inlet Thread Size
1/8-27 NPT
AeroDM Lug Mount
The new AeroDM forged six piston calipers deliver heavy duty stopping power for the street and off road. The caliper incorporates race technology into a body design with widespread adaptability. With variable lug geometry the AeroDM offers direct spindle mounting with proprietary 13.38” diameter rotors on many late model trucks with multiple options for piston volume give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new AeroDM the latest innovation to the Aero4/6 series of calipers. It has been designed with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly for extra rigidity.
The body of Aero series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
Pistons
| Piston Count | 6 |
| Piston Area (in²) | 6.52 |
| Piston Type | Stainless |
| Dust Boot | No |
Rotor Dimensions
| Rotor Width (in) | 1.25 |
| Rotor Diameter(in) | 13.38 |
Pad Dimensions
| Pad Area (in²) | 11.1 |
| Pad Volume (in³) | 5.2 |
Duty Rating & Material
| Material | Forged Aluminium |
| Weight(Lbs) | 8.7 |
Colors & Finish
| Color | Red |
| Finish | Red Powder Coat |
Mounting
| Mount Center(in) | 7.56 |
| Mount Position | |
| Mount Side | Right Hand |
| Mount Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 1.25 |
| Maximum Rotor Width (in) | 1.28 |
| Minimum Rotor Width (in) | 1.10 |
| Maximum Rotor Diameter(in) | 13.38 |
| Minimum Rotor Diameter(in) | 12.19 |
Brake Pad Specifications
| Brake Pad Type 1 | 6617 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 11.1 |
| Total Pad Volume (in³) | 5.2 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.75 |
| Piston 2 Bore (in) | 1.62 |
| Piston 3 Bore (in) | 1.62 |
| Total Piston Area (in²) | 6.52 |
Mounting Specifications
| Mount Type | Lug |
| Mount Side | Right Hand |
| Mount Center(in) | 7.56 |
| Mount Hole Size(in) | 0.55 |
| Mount Height(in) | |
| Inlet Thread Size | 1/8-27 NPT |
More Information
Manufacturer
Wilwood
Series
Aero6-DM
