Wilwood 120-16846 FNSL6R Radial Mount Caliper Left 6 Pistons

Manufacturer WilwoodWilwood
SKU WIL-120-16846

  Out of stock

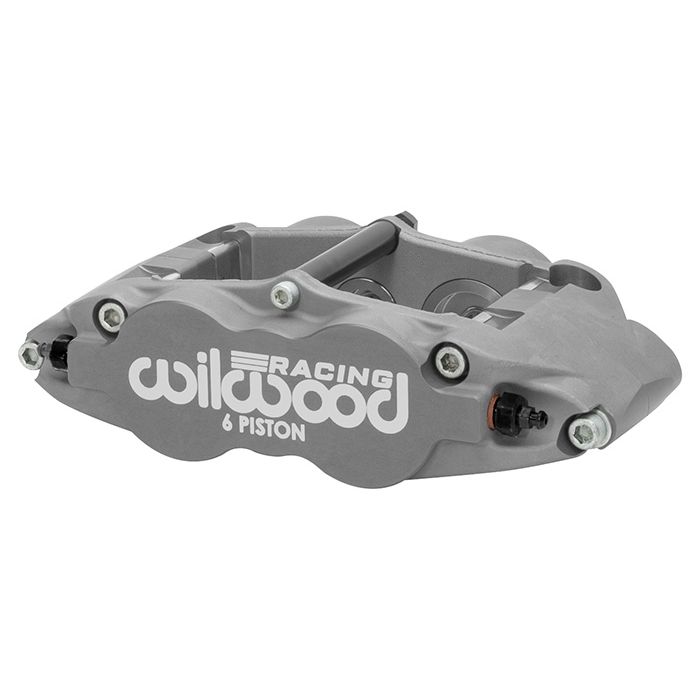

Wilwood 120-16846 FNSL6R Radial Mount Caliper Left 6 Pistons

Forged Narrow Superlite 6 Radial Mount

The Forged Narrow Superlite 6R/ST (FNSL6R/ST) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate Wilwood's latest technology and the addition of Thermlock insulated pistons to generate big stopping power in extreme high temperature environments over a broad range of vehicle and racing applications.

The key to the superior performance of the FNSL6R series of calipers, comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.

A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The FNSL6R/ST calipers feature Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade.

Pistons
Piston Count 6
Piston Area (in²) 4.04
Piston Type Thermlock
Dust Boot No
Rotor Dimensions
Rotor Width (in) 1.10
Rotor Diameter(in) 14.00
Pad Dimensions
Pad Area (in²) 8.2
Pad Volume (in³) 3.8
Duty Rating & Material
Material Forged Aluminium
Weight(Lbs) 5.0
Colors & Finish
Color Anodize
Finish Type III Anodize

Mounting
Mount Center(in) 5.98
Mount Position
Mount Side Left Hand
Mount Type Radial



Rotor Compatibility
Rotor Width (in) 1.10
Maximum Rotor Width (in) 1.10
Minimum Rotor Width (in) 1.00
Maximum Rotor Diameter(in) 14.00
Minimum Rotor Diameter(in) 11.75


Piston Specifications
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Total Piston Area (in²) 4.04
