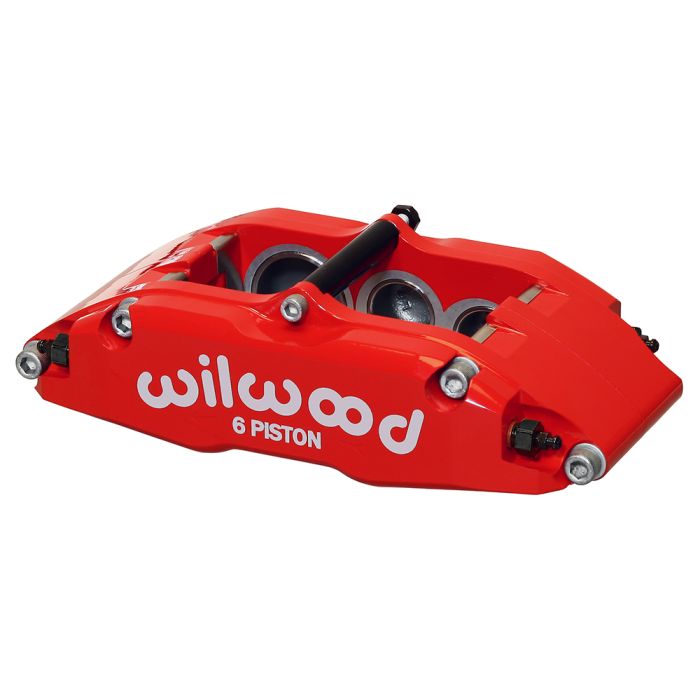

Wilwood 120-13383 Billet Narrow Superlite Lug Mount Caliper Left 6 Pistons Red
Manufacturer
Wilwood
Wilwood SKU WIL-120-13383-RD
Price: AED 1,860.12
The lowest price of the last 30 days before the discount: AED 1,860.12
Out of stock
Wilwood 120-13383 Billet Narrow Superlite Lug Mount Caliper Left 6 Pistons Red
| Pistons | |
|---|---|
| Piston Count | 6 |
| Piston Area (in²) | 4.04 |
| Piston Type | Stainless |
| Dust Boot | No |
| Rotor Dimensions | |
| Rotor Width (in) | 1.10 |
| Rotor Diameter(in) | 14.00 |
| Pad Dimensions | |
| Pad Area (in²) | 8.2 |
| Pad Volume (in³) | 3.8 |
| Duty Rating & Material | |
| Material | Billet Aluminium |
| Weight(Lbs) | 5.2 |
| Colors & Finish | |
| Color | Red |
| Finish | Red Powder Coat |
| Mounting | |
|---|---|
| Mount Center(in) | 3.50 |
| Mount Position | |
| Mount Side | Left Hand |
| Mount Type | Lug |
| Rotor Compatibility | |
|---|---|
| Rotor Width (in) | 1.10 |
| Maximum Rotor Width (in) | 1.10 |
| Minimum Rotor Width (in) | 1.00 |
| Maximum Rotor Diameter(in) | 14.00 |
| Minimum Rotor Diameter(in) | 11.75 |
| Piston Specifications | |
|---|---|
| Piston 1 Bore (in) | 1.62 |
| Piston 2 Bore (in) | 1.12 |
| Piston 3 Bore (in) | 1.12 |
| Total Piston Area (in²) | 4.04 |
More Information
| Manufacturer | Wilwood |
|---|---|
| Series | Billet Narrow Superlite 6 Lug Mount |
