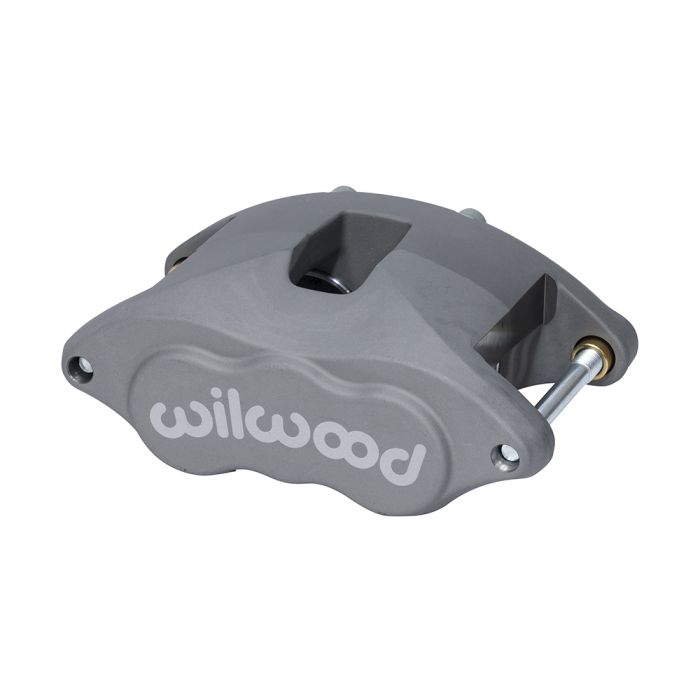

Wilwood 120-10938 D52 Universal Floating Mount Caliper 2 Pistons
D52 Dual Piston Floater
The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track.
D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The rear calipers with 1.25” piston provide 2.46 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.
Pistons
Piston Count
2
Piston Area (in²)
2.46
Piston Type
Stainless
Dust Boot
No
Rotor Dimensions
Rotor Width (in)
1.28
Rotor Diameter(in)
12.19
Pad Dimensions
Pad Area (in²)
10
Pad Volume (in³)
3.9
Duty Rating & Material
Material
Forged Aluminium
Weight(Lbs)
5.5
Colors & Finish
Color
Anodize
Finish
Type III Anodize
Mounting
Mount Center(in)
7.06
Mount Position
Mount Side
Universal
Mount Type
Floating
Specifications
Rotor Compatibility
Rotor Width (in)
1.28
Maximum Rotor Width (in)
1.28
Minimum Rotor Width (in)
1.19
Maximum Rotor Diameter(in)
12.19
Minimum Rotor Diameter(in)
11.00
Brake Pad Specifications
Brake Pad Type 1
D52
Brake Pad Type 2
N-A
Brake Pad Type 3
N-A
Total Pad Area (in²)
10
Total Pad Volume (in³)
3.9
Mount
Piston Specifications
Piston 1 Bore (in)
1.25
Piston 2 Bore (in)
1.25
Piston 3 Bore (in)
Total Piston Area (in²)
2.46

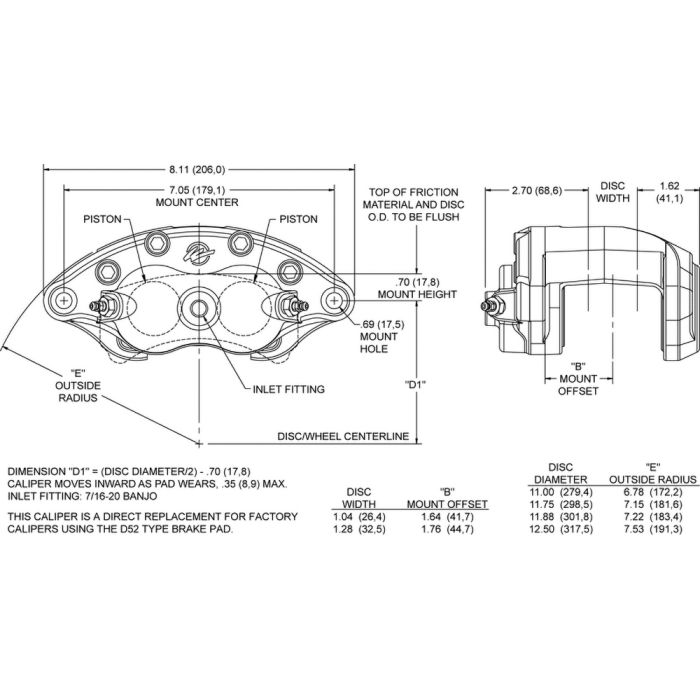

Mounting Specifications
Mount Type
Floating
Mount Side
Universal
Mount Center(in)
7.06
Mount Hole Size(in)
0.69
Mount Height(in)
0.77
Inlet Thread Size
7/16-20
D52 Dual Piston Floater
The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track.
D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The rear calipers with 1.25” piston provide 2.46 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.
Pistons
| Piston Count | 2 |
| Piston Area (in²) | 2.46 |
| Piston Type | Stainless |
| Dust Boot | No |
Rotor Dimensions
| Rotor Width (in) | 1.28 |
| Rotor Diameter(in) | 12.19 |
Pad Dimensions
| Pad Area (in²) | 10 |
| Pad Volume (in³) | 3.9 |
Duty Rating & Material
| Material | Forged Aluminium |
| Weight(Lbs) | 5.5 |
Colors & Finish
| Color | Anodize |
| Finish | Type III Anodize |
Mounting
| Mount Center(in) | 7.06 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 1.28 |
| Maximum Rotor Width (in) | 1.28 |
| Minimum Rotor Width (in) | 1.19 |
| Maximum Rotor Diameter(in) | 12.19 |
| Minimum Rotor Diameter(in) | 11.00 |
Brake Pad Specifications
| Brake Pad Type 1 | D52 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 10 |
| Total Pad Volume (in³) | 3.9 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.25 |
| Piston 2 Bore (in) | 1.25 |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 2.46 |
Mounting Specifications
| Mount Type | Floating |
| Mount Side | Universal |
| Mount Center(in) | 7.06 |
| Mount Hole Size(in) | 0.69 |
| Mount Height(in) | 0.77 |
| Inlet Thread Size | 7/16-20 |
More Information
Manufacturer
Wilwood
Series
GM D52 Dual Piston
| Manufacturer |
Wilwood
|
|---|---|
| Series | GM D52 Dual Piston |
