Billet Crankshaft ZRP for Volkswagen / Audi 2.0L TFSI EA888 C-AUD-004L

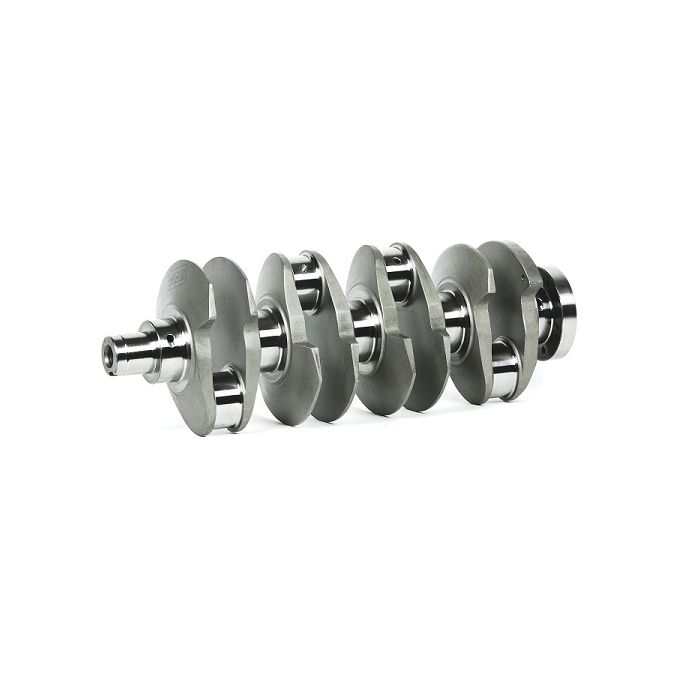

ZRP Stroker Crankshaft – Audi / VW 2.0L TFSI (Belt Driven)
The ZRP stroker crankshaft for Audi / VW 2.0L TFSI (belt driven) increases the capacity to 2.1L (82.5mm x 98.0mm). It is manufactured from aerospace grade 4340 solid billet steel, with no compromises made to material quality to ensure the best possible product. This crankshaft is carefully designed based on extensive experience to deliver optimal engine performance. The production process involves very strict inspections to maintain high quality and tight tolerances for perfect fitment.
The Audi crankshaft is fully balanced to 1gr.cm ± 0.1 using state-of-the-art Sunnen machines. A balance results report is included.
Product Features and Design:
-
Knife edged profiled counterweights to reduce weight and increase crankshaft aerodynamics
-
Straight oil holes for better oiling of the rod journals
-
Chamfered oil holes
-
Journal radius to disperse load stress
-
Tapered rod journals for weight reduction
Technical Features of ZRP Crankshafts:
-
Full CNC machining
-
ION (Plasma) Nitride process for hardening
-
Multi Stage Heat Treatment
-
Shot peening for stress release
-
100% Magna-fluxing for flawless surface finish
-
Heat treatment for superior wear resistance
-
Micro-polishing for longer bearing life
-
Sonic tested and X-rayed to ensure a reliable end product
Technical Specification:
-
Application: Audi / Volkswagen 2.0L TFSI / TSI (belt-driven engine)
-
Engine: 2.0 TFSI (EA113) Gen.1 / Gen.2
-
Stroke: 98.00 mm
-
Rod Journal Diameter: 47.80 mm
-
Main Journal Diameter: 54.00 mm
-
Material: 4340 Billet Steel
-
Note: Stroker crankshaft – increases engine displacement
