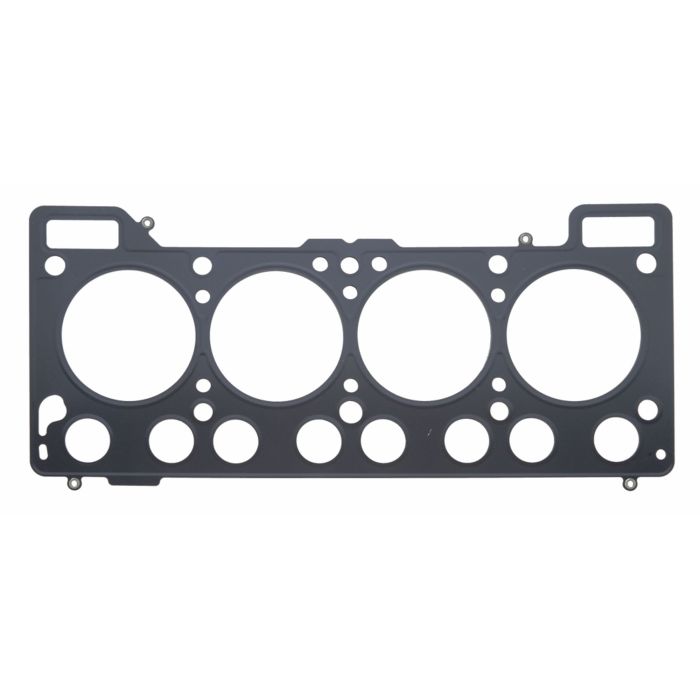

Athena Head Gasket MLS for Renault 9 / 11 / 18 / 19 / 21 / Super 5 / Rapid / Volvo 340-360 1.8mm 77mm 338249R

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets feature a combination of 3 to 5 layers made of different types of raw materials.

Outer and inner layers combination is designed to perform at higher compression levels than stock configuration and type of steels that are used may vary upon the engine requirements.

Athena MLS gaskets provide an even torque load across the sealing surface to compensate any type of bore distortion.

Athena MLS gasket is the best solution for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

Manufacturing Process

Athena New Design MLS Head Gaskets are made from high grade 301 stainless steel full hard material.

Each layer is individually formed using a state-of-the-art laser cutting and embossed with an optimized formation process.

2 head gasket layers go through a stress relieving process to significantly reduce embossment forming induced stress.

Proprietary two-part polymer coating is applied after the stress relieving process and ensures uniform coverage of the outer layers providing no break in the coating.This process ensures the micro seal of engine coolant/oil fluids.

Athena MLS gaskets are tested and analyzed on Engine Dynos and endurance performances.

Gas Stopper Technology

Gas stopper technology is a key design factor of racing MLS head gaskets. The stainless-steel stopper layer features a state of the art “active fold”. which delivers a high-pressure seal around the cylinder bore when tightening the cylinder head. Gas stopper is located around the combustion chamber. allowing cylinder head and engine block to clamp tighter and preventing gases to leak out of the combustion chamber.

This also avoids component distortion by means of a quicker equalization of the various components’ temperature.

Benefits

Superior sealing properties under high pressure conditions

Higher elasticity and constant load resistance

Optimized load balance

Improved engine performance

Longer durability

Proprietary Coating Technology



Our two-part polymer coating is applied after the stress relieving process and ensures uniform coverage of the outer layers providing no break in the coating. This process ensures the micro seal of engine coolant/oil fluids and meets the demands of a variety of harsh environments.

The first layer is a high temperature compound that will conform to fill engine block deck surface and cylinder head surface irregularities. (Typical MLS head gaskets require a surface finish of 30 Ra. while Athena’s will seal surface finishes up to 60 Ra).

The second layer itself releases easily and will not stick to mating surfaces when disassembling the engine.”

Fits to :

RENAULT 11 (B/C37_) 1.2 (B37S, C375) 1237 cc 1984/1988
RENAULT 11 (B/C37_) 1.4 (B/C372, B/C37C) 1397 cc 1983/1988
RENAULT 11 (B/C37_) 1.4 (B/C373) 1397 cc 1983/1985
RENAULT 11 (B/C37_) 1.4 (B/C373, B/C37R) 1397 cc 1983/1988
RENAULT 18 (134_) 1.4 (1340) 1397 cc 1978/1986
RENAULT 18 Variable (135_) 1.4 (1350) 1397 cc 1979/1986
RENAULT 19 I (B/C53_) 1.4 (B/C53P) 1397 cc 1989/1993
RENAULT 19 I (B/C53_) 1.4 Cat (B/C532) 1390 cc 1989/1992
RENAULT 19 I Chamade (L53_) 1.2 1237 cc 1988/1992
RENAULT 19 I Chamade (L53_) 1.4 (L532, L53P) 1390 cc 1988/1992
RENAULT 19 II (B/C53_) 1.4 (B/C532) 1390 cc 1992/1995
RENAULT 19 II Chamade (L53_) 1.4 1390 cc 1992/1994
RENAULT 19 II Chamade (L53_) 1.4 (532) 1390 cc 1992/1995
RENAULT 21 (B48_) 1.4 (B48D) 1397 cc 1989/1993
RENAULT 21 Tre volumi (L48_) 1.4 (L48D) 1397 cc 1988/1993
RENAULT 5 (122_) 1.4 (1229, 1399) 1397 cc 1982/1985
RENAULT 5 (122_) 1.4 Automatik (1229, 1399) 1397 cc 1982/1984
RENAULT 847 700 1397 cc 1980/1989
RENAULT 847 701 1397 cc 1980/1989
RENAULT 847 712 1397 cc 1982/1985
RENAULT 847 720 1397 cc 1978/1986
RENAULT 847 722 1397 cc 1978/1986
RENAULT 847 725 1397 cc
RENAULT 9 (L42_) 1.2 (L42S) 1237 cc 1985/1988
RENAULT 9 (L42_) 1.4 Automatik (L423) 1397 cc 1981/1985
RENAULT 9 (L42_) 1.4 (L422, L42C) 1397 cc 1981/1988
RENAULT 9 (L42_) 1.4 (L423) 1397 cc 1981/1985
RENAULT 9 (L42_) 1.4 (L423, L42R) 1397 cc 1985/1988
RENAULT C1G 700 1237 cc 1984/1989
RENAULT C1G 710 1237 cc 1984/1989
RENAULT C1G 730 1237 cc
RENAULT C1J 700 1397 cc 1980/2025
RENAULT C1J 715 1397 cc 1981/1989
RENAULT C1J 742 1397 cc
RENAULT C1J 768 1397 cc
RENAULT C1J 780 1397 cc
RENAULT C1J 792 1397 cc 1981/1988
RENAULT C1J 796 1397 cc 1981/1988
RENAULT C2J 700 1397 cc 1987/2025
RENAULT C2J 713 1397 cc 1982/1985
RENAULT C2J 717 1397 cc 1983/1985
RENAULT C2J 718 1397 cc 1983/1985
RENAULT C2J 720 1397 cc 1986/1987
RENAULT C2J 730 1397 cc 1986/1988
RENAULT C2J 755 1397 cc 1982/1984
RENAULT C2J 757 1397 cc 1982/1984
RENAULT C2J 766 1397 cc 1984/1988
RENAULT C2J 767 1397 cc 1984/1989
RENAULT C2J 768 1397 cc 1985/1988
RENAULT C2J 770 1397 cc
RENAULT C2J 772 1397 cc 1989
RENAULT C2J 780 1397 cc 1984/1989
RENAULT C2J 781 1397 cc
RENAULT C2J 782 1397 cc 1987/1989
RENAULT C2J 784 1397 cc
RENAULT C2J 788 1397 cc 1984/1990
RENAULT C2J 789 1397 cc
RENAULT C2J 798 1397 cc 1986/1989
RENAULT C3J 700 1397 cc
RENAULT C3J 702 1397 cc 1988/2025
RENAULT C3J 710 1390 cc 1989/2025
RENAULT C3J 760 1390 cc
RENAULT C3J 762 1390 cc 1991/2025
RENAULT FUEGO (136_) 1.4 TL/GTL 1397 cc 1980/1985
RENAULT RAPID Cassone/Limousine spaziosa (F40_, G40_) 1.4 Cat (F407) 1390 cc 1988/1998
RENAULT RAPID Cassone/Limousine spaziosa (F40_, G40_) 1.4 (F402) 1397 cc 1985/1991
RENAULT RAPID Cassone/Limousine spaziosa (F40_, G40_) 1.4 (F40M) 1397 cc 1986/1991
RENAULT SUPER 5 (B/C40_) 1.4 (B/C402) 1397 cc 1984/1988
RENAULT SUPER 5 (B/C40_) 1.4 (B/C403) 1397 cc 1984/1989
RENAULT SUPER 5 (B/C40_) 1.4 (B/C40J) 1397 cc 1987/1989
RENAULT SUPER 5 (B/C40_) 1.4 (B/C40M) 1397 cc 1987/1990
RENAULT SUPER 5 (B/C40_) 1.4 Cat (B/C/407) 1390 cc 1985/1996
RENAULT SUPER 5 Furgone/hatchback (S40_) 1.4 1397 cc 1985/1986
RENAULT TRAFIC Autobus (T_, P_, V_) 1.4 1397 cc 1980/1989
RENAULT TRAFIC Furgone (T_, P_, V_) 1.4 1397 cc 1980/1989
RENAULT TRAFIC Furgone (T_, P_, V_) 1.4 1397 cc 1989/1991
RENAULT TRAFIC Pianale piatto/Telaio (T_, P_, V_) 1.4 1397 cc 1980/1989
VOLVO 340-360 (343, 345) 1.4 1397 cc 1975/1983
VOLVO 340-360 (343, 345) 1.4 1397 cc 1979/1983
VOLVO 340-360 (343, 345) 1.4 1397 cc 1982/1985
VOLVO 340-360 (343, 345) 1.4 1397 cc 1983/1986
VOLVO 340-360 (343, 345) 1.4 1397 cc 1986/1988
VOLVO 340-360 (343, 345) 1.4 1397 cc 1987/1988
VOLVO 340-360 Tre volumi (344) 1.4 1397 cc 1983/1986
VOLVO 340-360 Tre volumi (344) 1.4 1397 cc 1986/1988
VOLVO 340-360 Tre volumi (344) 1.4 1397 cc 1987/1988
VOLVO B 14.3 E 1397 cc
VOLVO B 14.4 S 1397 cc 1976/1988
