Wilwood 120-8728 Powerlite Universal Radial Mount Caliper 4 Pistons

Powerlite Radial Mount

The Powerlite four piston radial mount caliper starts at 2.26 pounds with a sleek profile, superior strength, lightweight and durable in higher temperature situations. Easily adapted to a wide range of sports, rally, and off road driving applications.

Strength comes from a combination of process and design. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper separation under load.

The Powerlite uses a new 7912 type brake pad that is supported from the top by Quick-clip pad retainers. This eliminates the need for a pad support step in the bottom of the caliper and adds additional clearance for mounting closer to the hub on small wheel and rotor applications. The pad radius matches to rotor diameters between 9.45" (240,0 mm) and 11.75" (298,5 mm), and the caliper fits easily inside many 13.00" (330,2) wheel applications. The Quick-Clips also accommodate easy pad access without caliper removal. Brake pad compounds are available for the full range of sport and competition applications.

Pistons
Piston Count 4
Piston Area (in²) 2.46
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width (in) 0.86
Rotor Diameter(in) 11.00
Pad Dimensions
Pad Area (in²) 5
Pad Volume (in³) 1.8
Duty Rating & Material
Material Forged Aluminium
Weight(Lbs) 2.8
Colors & Finish
Color Anodize
Finish Type III Anodize

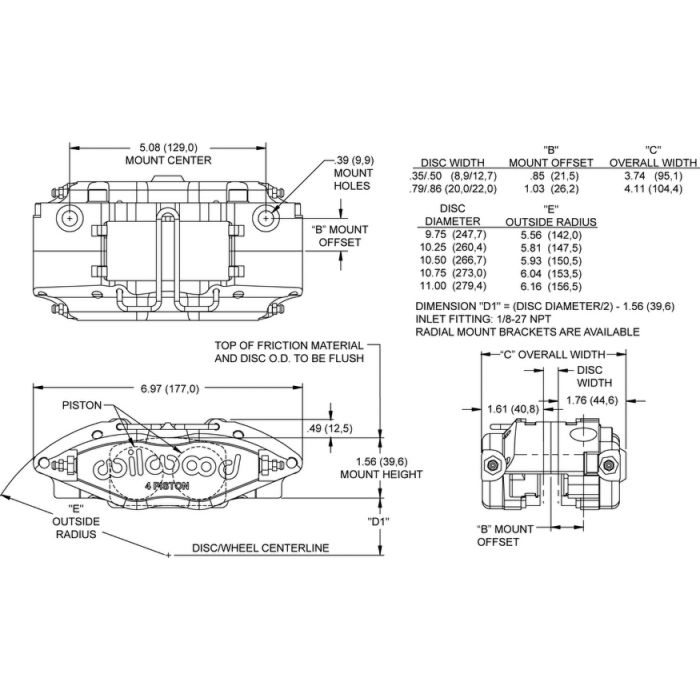

Mounting
Mount Center(in) 5.08
Mount Position
Mount Side Universal
Mount Type Radial



Rotor Compatibility
Rotor Width (in) 0.86
Maximum Rotor Width (in) 0.86
Minimum Rotor Width (in) 0.79
Maximum Rotor Diameter(in) 11.00
Minimum Rotor Diameter(in) 9.45


Piston Specifications
Piston 1 Bore (in) 1.25
Piston 2 Bore (in) 1.25
Piston 3 Bore (in)
Total Piston Area (in²) 2.46
