Wilwood 120-14023 Forged Dynapro 6A Lug Mount Caliper Right 6 Pistons Nickel
Wilwood On demand
Wilwood 120-14023 Forged Dynapro 6A Lug Mount Caliper Right 6 Pistons Nickel

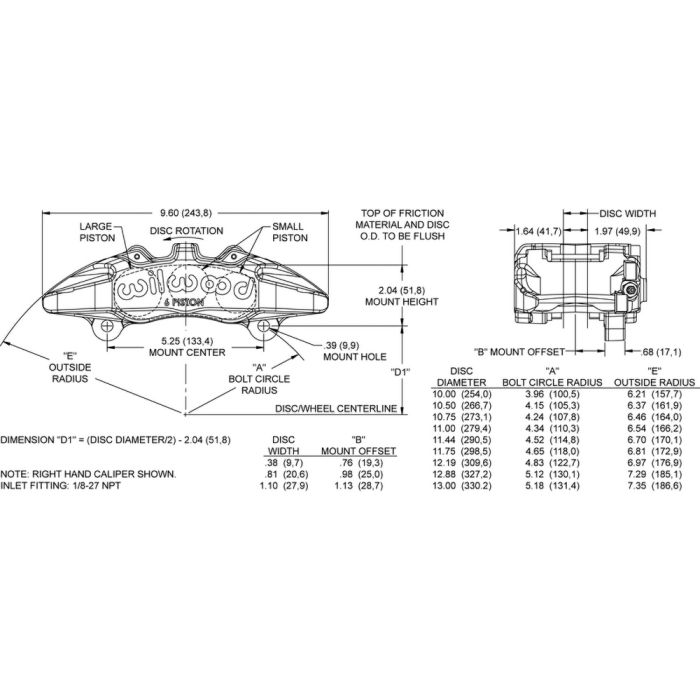

Forged Dynapro 6A Lug Mount
Wilwood's newest DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25” pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13”inch diameter and widths from .38” to 1.10”. DP6A calipers are available in gloss black or red powder coat or Type III Anodize.
| Pistons | |
|---|---|
| Piston Count | 6 |
| Piston Area (in²) | 5.06 |
| Piston Type | Thermlock |
| Dust Boot | No |
| Rotor Dimensions | |
| Rotor Width (in) | 0.38 |
| Rotor Diameter(in) | 13.00 |
| Pad Dimensions | |
| Pad Area (in²) | 7.3 |
| Pad Volume (in³) | 2.4 |
| Duty Rating & Material | |
| Material | Forged Aluminium |
| Weight(Lbs) | 4.9 |
| Colors & Finish | |
| Color | Nickel |
| Finish | Nickel Plate |
| Mounting | |
|---|---|
| Mount Center(in) | 5.25 |
| Mount Position | |
| Mount Side | Right Hand |
| Mount Type | Lug |
| Rotor Compatibility | |
|---|---|
| Rotor Width (in) | 0.38 |
| Maximum Rotor Width (in) | 0.38 |
| Minimum Rotor Width (in) | 0.25 |
| Maximum Rotor Diameter(in) | 13.00 |
| Minimum Rotor Diameter(in) | 10.00 |
| Piston Specifications | |
|---|---|
| Piston 1 Bore (in) | 1.62 |
| Piston 2 Bore (in) | 1.38 |
| Piston 3 Bore (in) | 1.38 |
| Total Piston Area (in²) | 5.06 |
More Information
| Manufacturer | Wilwood |
|---|
