Ecumaster GPS to CAN v2 module

GPS TO CAN V2

Ecumaster GPS module assures high-accuracy position tracking
with a 25 Hz update rate. The module can use four navigation systems
at the same time: GPS, GLONASS, Galileo, and BeiDou. An external,
active antenna with a magnetic base is included with the module.
Thanks to a built-in 3-axis accelerometer and gyroscope, the device
can deliver information about speed, position, heading, altitude,
accelerations, and angular velocities. All GPS data is transmitted via CAN bus.
The GPS module is intended to work with the ADU display/logger
and allows real-time lap timing, predictive timing, as well as
data analysis after the session with a track map visualization.

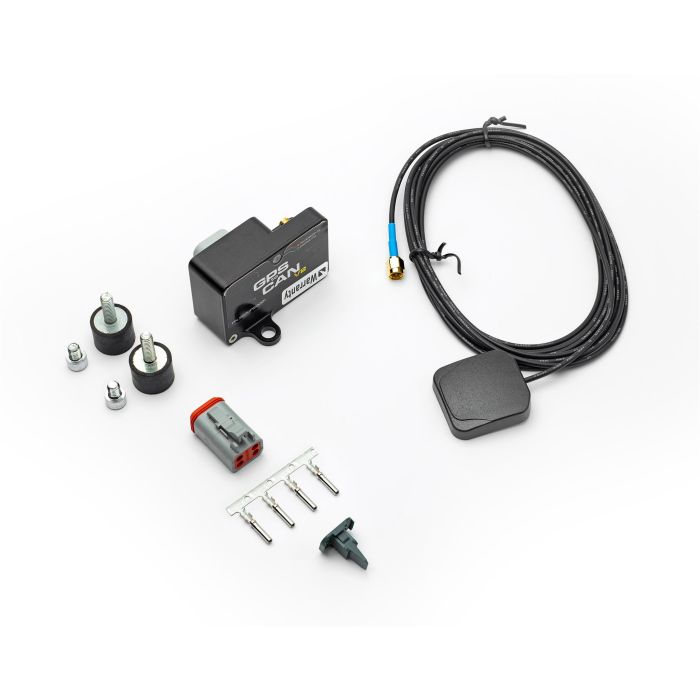

1x Ecumaster GPS to CAN V2
1x Mounting kit with vibration dampers
1x Grey 4pin connector with terminals
1x GPS antenna A.166
1x Pinout description
