RacingLine Oil Management Catch Can Kit for Audi B9 S4 S5 SQ5

The RacingLine Oil Catch Can System is exquisitely designed for Audi’s 3.0 TFSI V6T (EA839) as used in the S4, S5 & SQ5 B9. The Catch Can System features a complete PCV replacement block feeding to an internally-baffled can to keep your intercooler and inlet tracts free from oil build-up and provide clean airflow through to the inlet manifold.

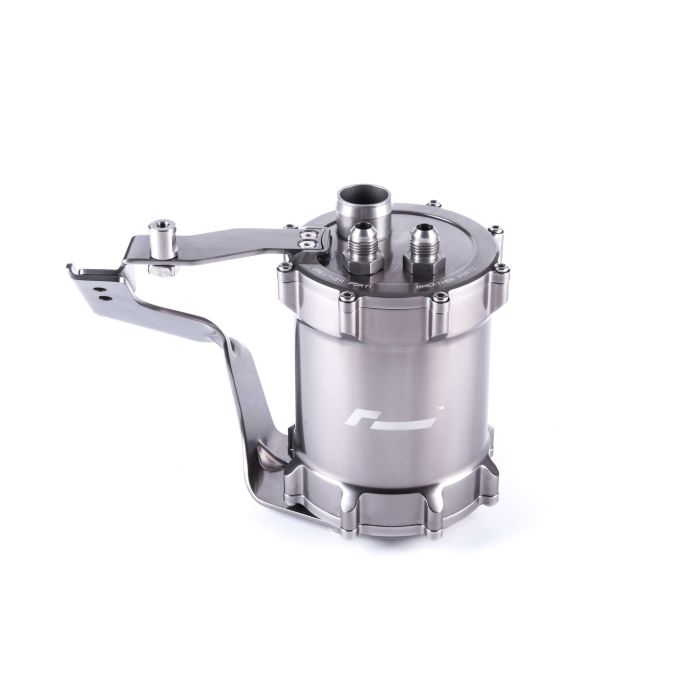

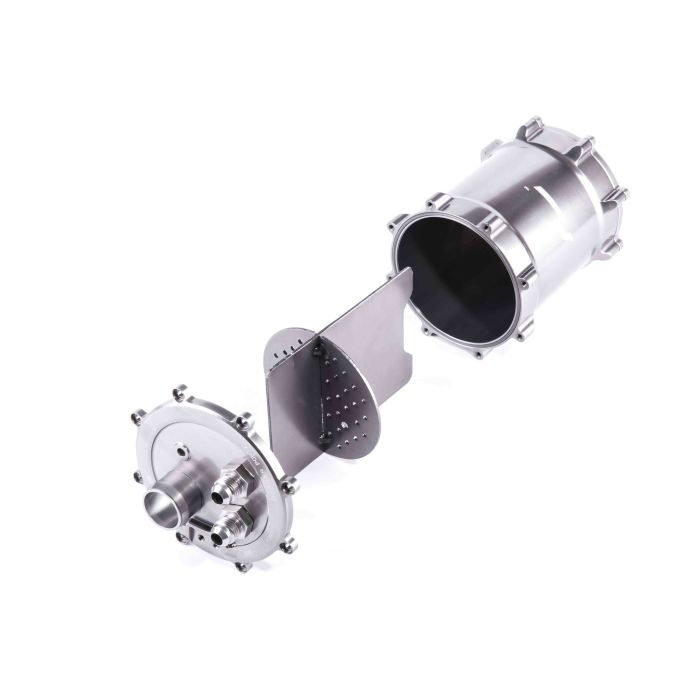

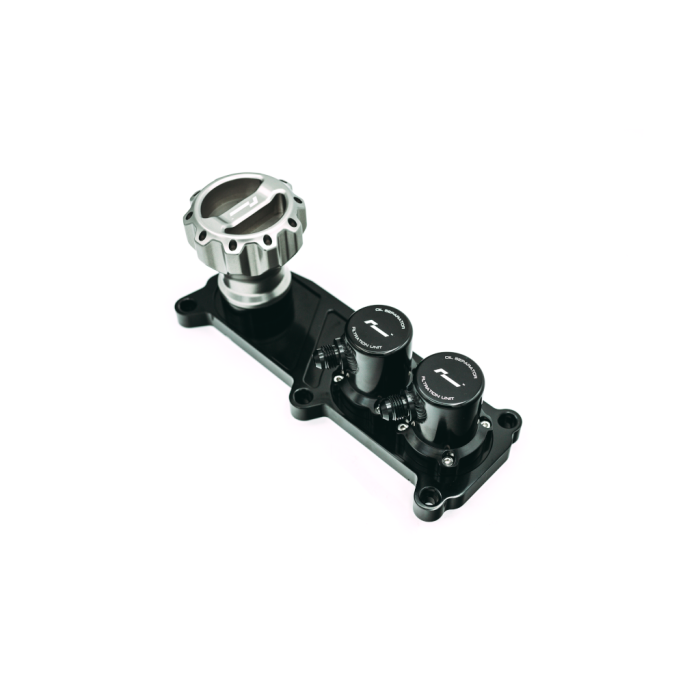

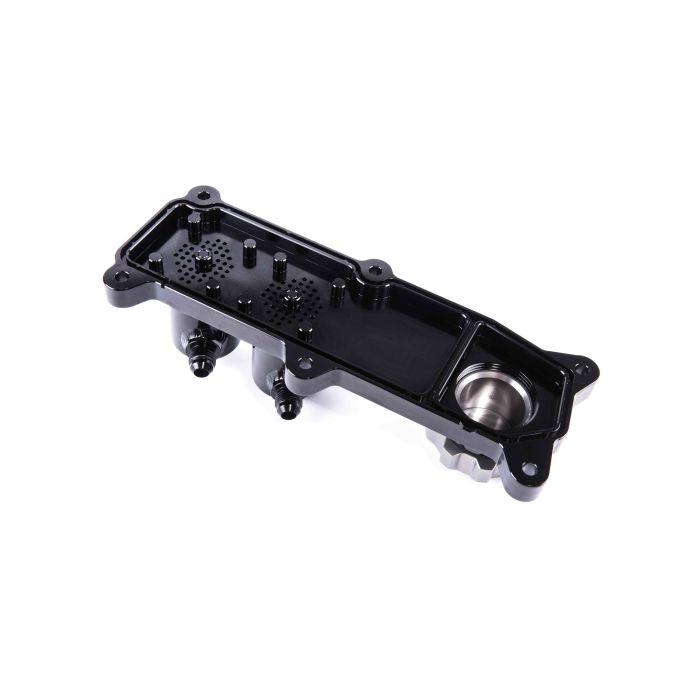

Not all catch can kits are equal! RacingLine’s stunning Oil Catch Can System is designed exclusively for the Audi’s B9-platform S4, S5 & SQ5, plus other Audi models fitted with the 3.0 TFSI V6T (EA839) motor. RacingLine’s V6T Catch Can System replaces the factory PCV with a gloss black billet PCV replacement block. This features two internally-baffled separator turrets and also deletes the failure-prone factory PCV check-valve. The new PCV block also incorporates a beautiful billet oil filler cap – not only pleasing to use, but ensures no more oil 'weeping' from the factory plastic cap. The PCV block feeds to the Catch Can itself via two -6AN hose lines. These oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience. The Catch Can is constructed from extruded aerospace-grade 6061 aluminium, then CNC machined before being coated in a unique ‘Liquid Titanium’ anodised finish. The Can’s three-way baffled internals effectively collects excess moisture and oil vapour to keep your intercooler and inlet tracts free from long-term oil residue build-up. For improved engine-efficiency, it ensures cleaner airflow through to the inlet manifold via the breather return hose, connected with a factory-spec ‘Norma’ quick release fitting. The beautiful Catch Can incorporates pressed-aluminium mountings to locate the can at the rear of engine, adding a great dose of style to your car’s engine bay appearance. It even includes an integrated mount point to retain the factory engine cover. On top of the can is a dipstick for quick level-checking, and the can allows for easy disassembly for thorough cleaning throughout its life. Fitting is straightforward, and a full fixing kit containing all required bolts & O-Rings is included. All this ensures that the RacingLine Catch Can System stands the test of time, retains its stunning looks, and most importantly keeps your engine & inlets tracts in the best possible long-term health. PLEASE NOTE: not recommended for ECU calibrations running boost levels over 2 bar / 30PSI.
