Wilwood 140-15525 AERO6 Big Brake Truck Front Brake Kit for Nissan Patrol Y61 1997-2018 Red
Wilwood On demand
Wilwood 140-15525 AERO6 Big Brake Truck Front Brake Kit for Nissan Patrol Y61 1997-2018 Red

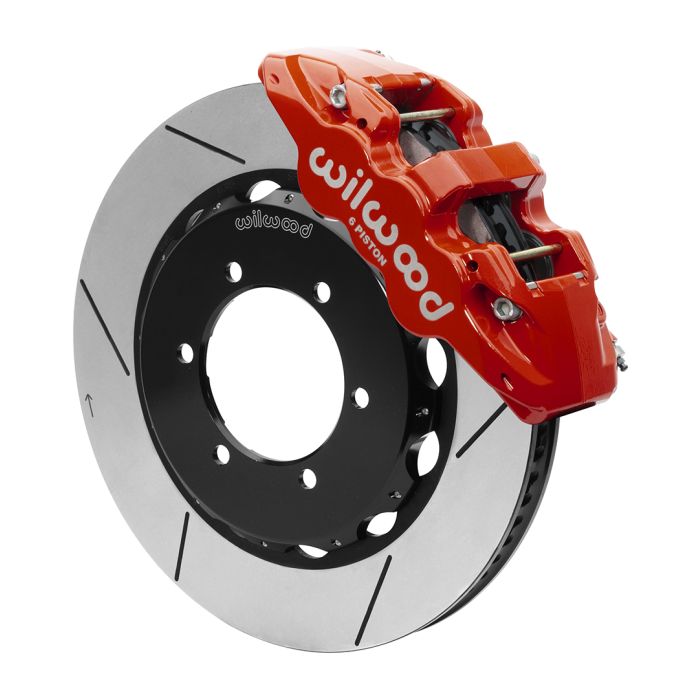

AERO6 Big Brake Truck Front Brake Kit
AERO6-DS calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25” rotors provide maximum cooling for sustained high heat durability. Aero6 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. Kit comes complete with stainless braided flex lines.
Kit Summary
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | 14.25 |
| Min Wheel Diameter Req'd*: | 18 |

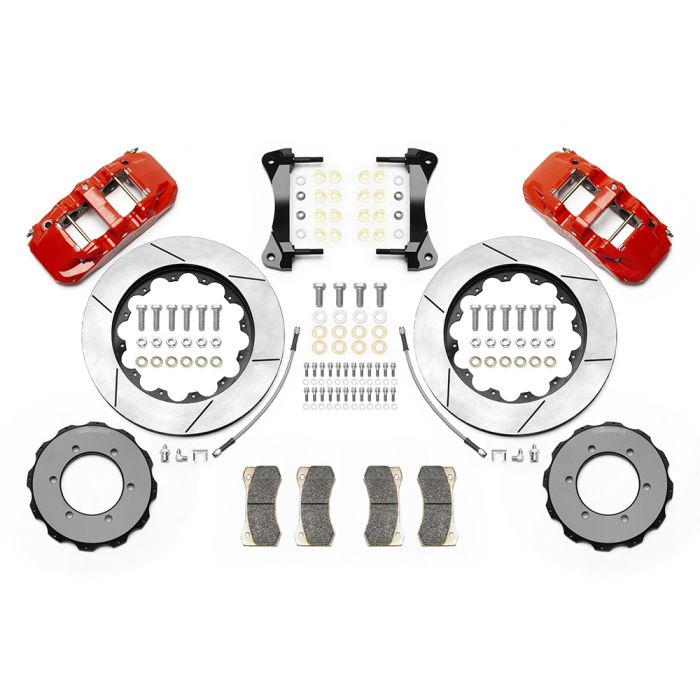

Kit Components & Specifications
Calipers
| Left Hand - Part No: | 120-15527-RD |
| Right Hand - Part No: | 120-15526-RD |
| Type: | AERO6-DS |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.62 |
| Piston 3 Bore (in): | 1.62 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-20 |
Rotors
| Left Hand - Part No: | 160-11316-GTB |
| Right Hand - Part No: | 160-11315-GTB |
| Type: | GT 72 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 14.25 |
| Width (in): | 1.25 |
| Vane Count: | 72 CV |
| Design Type: | GT-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
More Information
| Manufacturer | Wilwood |
|---|---|
| Brand | Nissan |
