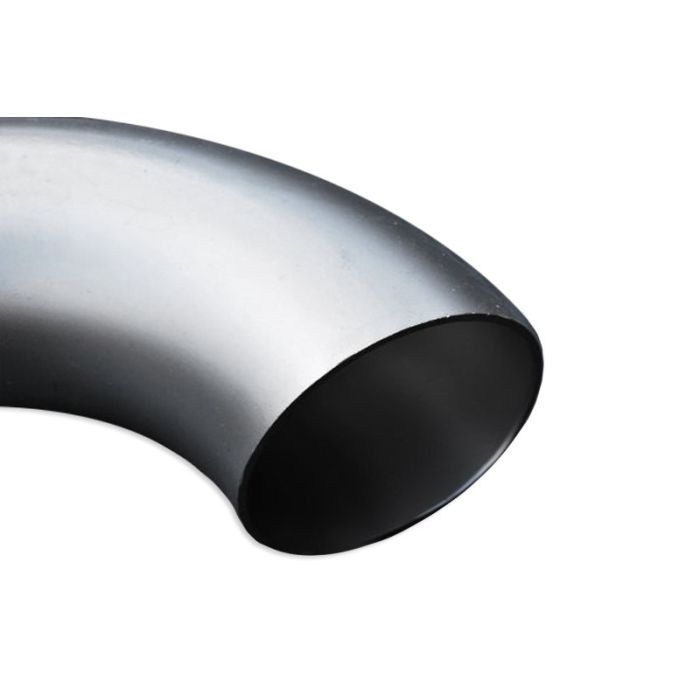

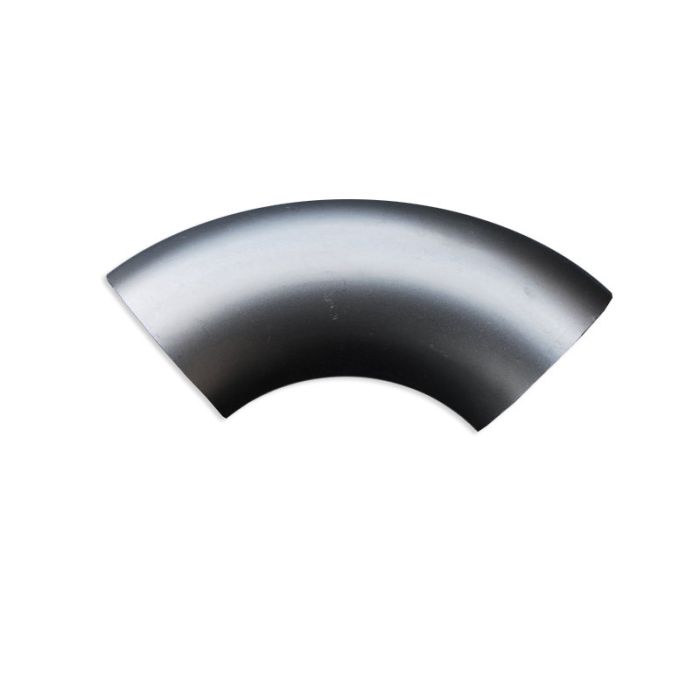

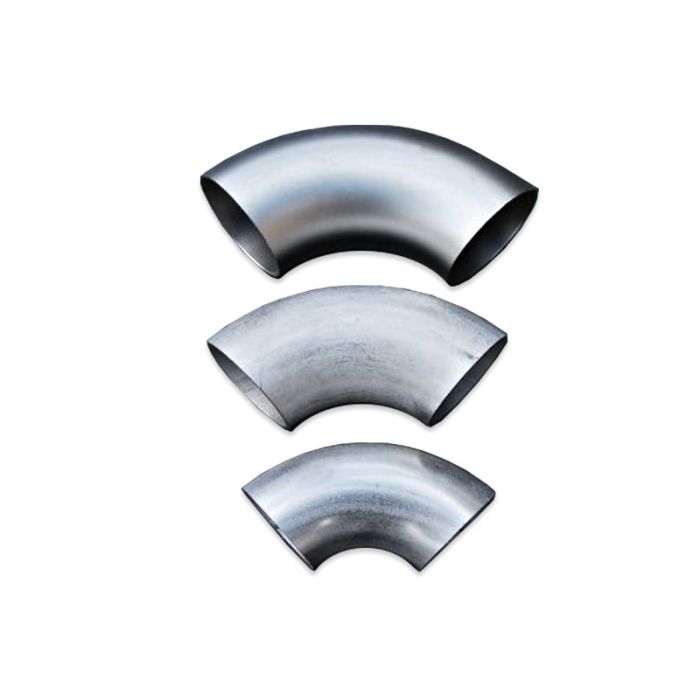

Stainless steel elbow 38mm 90'

Stainless Steel Elbow 38 mm Diameter - 1.5 mm Wall Thickness

This high-quality stainless steel elbow is designed for performance applications and is ideal for constructing custom intake and exhaust systems. Manufactured from premium austenitic stainless steel 1.4301 / 1.4307 (AISI 304), it features a low carbon content, excellent weldability, and outstanding corrosion resistance. Its chromium-nickel alloy composition ensures durability even in demanding, high-temperature environments. Thanks to its precise dimensions and robust construction, the elbow offers long service life, reliability, and ease of fabrication, making it a perfect choice for tuning and motorsport builds.

Technical Specifications

Outer diameter: 38 mm
Wall thickness: 1.5 mm
Material EN: 1.4301 / 1.4307
Material AISI: 304

Chemical Composition

C [%] < 0.07
Si [%] < 1.0
Mn [%] < 2.0
P [%] < 0.045
N [%] < 0.11
Cr [%] 17.50–19.50
Ni [%] 8.00–10.50

Mechanical Properties

Yield strength Re (Rp0.2) min.: 230 MPa
Tensile strength Rm: 540–750 MPa
Elongation at break A5 min.: 45%
Hardness HB max.: 215

Physical Properties (at 20°C)

Density: 7.9 kg/dm³
Modulus of elasticity: 200 GPa
Thermal conductivity: 15 W/(m·K)
Specific heat capacity: 500 J/(kg·K)
Electrical resistivity: 0.73 Ω·mm²/m
