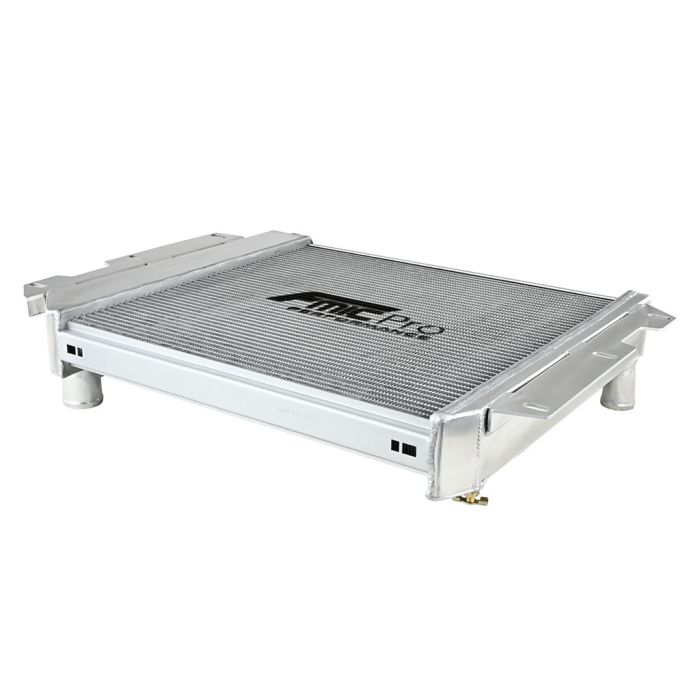

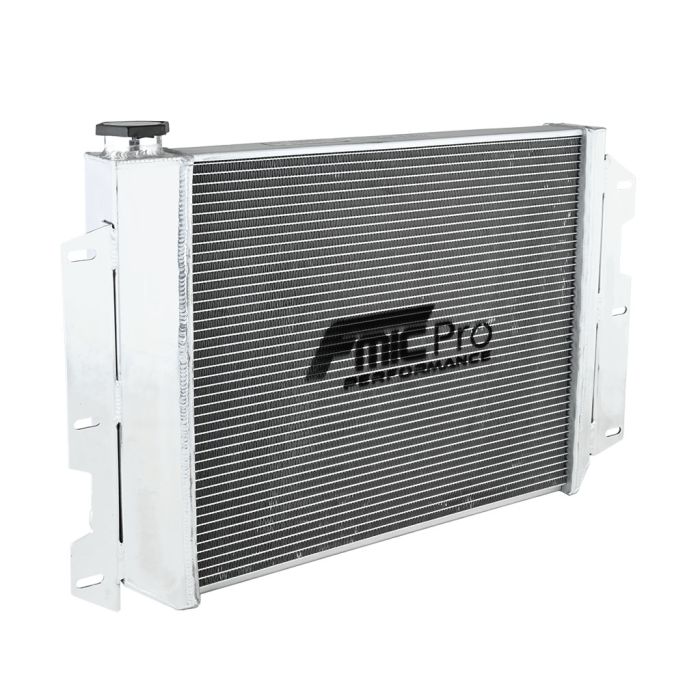

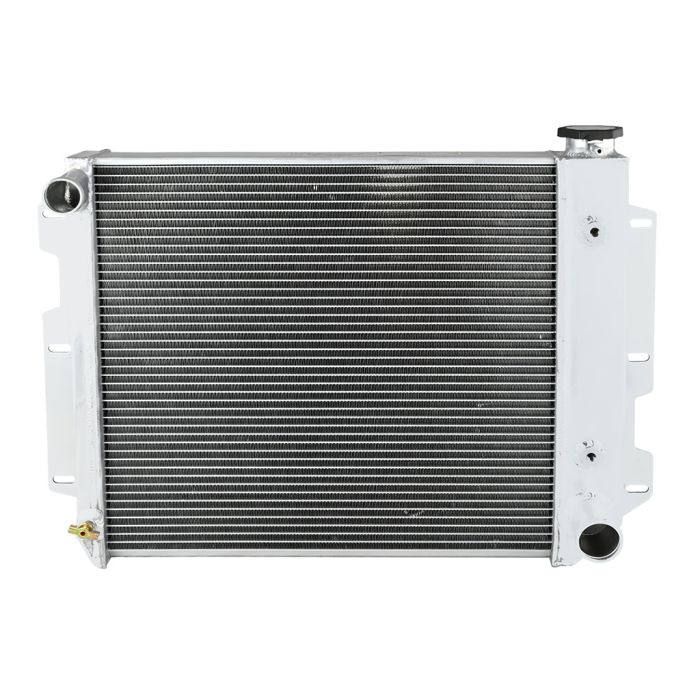

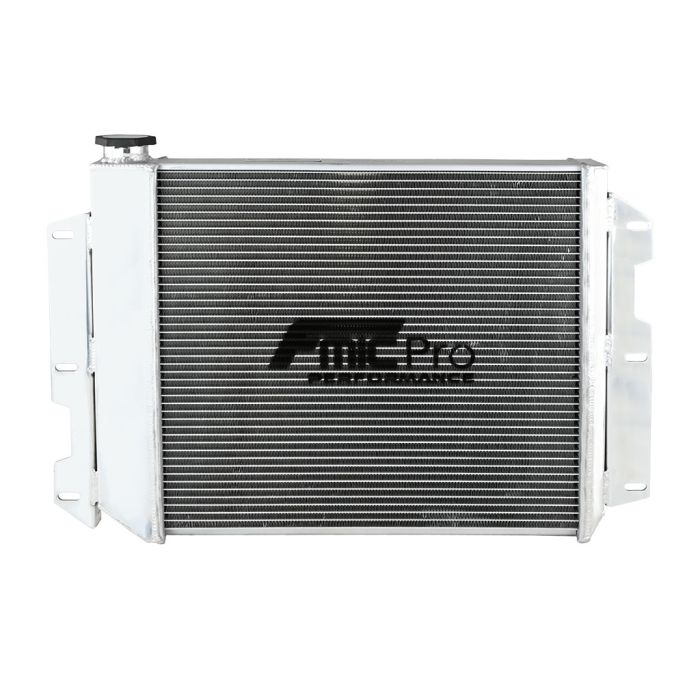

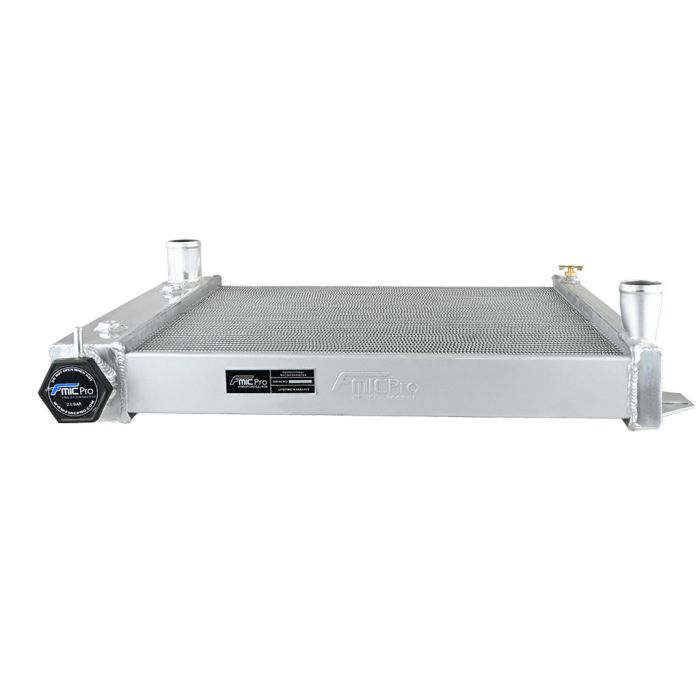

Racing Radiator FMIC.Pro Jeep Wrangler TJ 97–02 YJ 87–95 V8 Swap

Racing Radiator FMIC.Pro Triple Row Water / Oil Transmission Cooler for Jeep Wrangler TJ 1997–2002 / YJ 1987–1995 V8 Swap

The FMIC.Pro water radiator is a professional-grade product designed to deliver effective cooling under the most extreme conditions. Its high performance is attributed to a unique core that rapidly absorbs heat from the coolant and swiftly dissipates it. Thanks to the optimal spacing and thickness of the fins, the core exhibits excellent efficiency—unlike standard radiators, it doesn't retain heat but quickly releases it. Unprecedented build quality and precise welds place FMIC.Pro products among premium-class radiators. Compatibility with OEM mounting points ensures a perfect fit with the vehicle's front panel, allowing for hassle-free installation, while the high-gloss finish adds freshness and aesthetics under the hood. FMIC.Pro water radiators are favored by multiple World and European Motorsport Champions.

- Core dimensions: 465 mm × 445 mm × 56 mm

- Overall dimensions: 660 mm × 505 mm × 132 mm

- Inlet/outlet diameter: 38/45 mm

- Oil cooler fittings: 1/8 NPT

- Radiator cap pressure: 2 Bar

Fits:

- Jeep Wrangler YJ with Chevy V8 engine (1987–1995)

- Jeep Wrangler TJ with Chevy V8 engine (1997–2002)

Not compatible with L4 and L6 engines.
