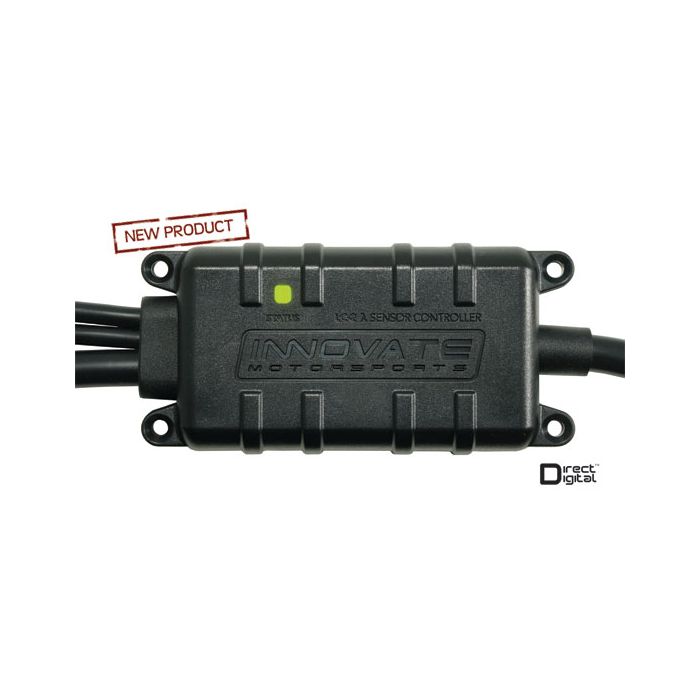

Innovate LC-2 controller, Innovate 3877 wideband with module
In stock
Innovate LC-2 controller, Innovate 3877 wideband with module
Innovate LC-2 controller, Innovate wideband with module
The evolution of the world’s most popular stand alone digital O2 sensor controller, the Innovate Motorsports LC-2 builds upon the legacy of the LC-1 by adding simplicity and leading edge technology. The LC-2 utilizes 100% digital wideband air/fuel ratio technology on the market! The LC-2’s patented award-winning DirectDigital™ signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges. The LC-2 can also be "daisy-chained" for cost-effective individual cylinder monitoring, and is fully compatible with our Modular Tuning System (MTS). Key features include:
KEY FEATURES
Patented DirectDigital™ Wideband Technology
Wideband O² Compatible with ALL fuel types
Ability to calibrate O² sensor for maximum accuracy
Integrated dual-color status LED (Green/Red)
*2-Configurable linear 0-5v analog outputs
Optional sensor cable lengths available: 3ft, 8ft (Included), and 18ft
Positive lock connectors for all connections
Innovate MTS serial in/out
Serial connection to your PC
Real-time display data on screen and/or with powerful LogWorks software
*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. Analog Output #1 (Yellow) is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR; Analog Output #2 (Brown) 1.1 volt = 14 AFR and .1 volt = 15 AFR. With the provided LM Programmer software these analog outputs may also be configured by the user.
Specifications
|
Power |
|
| Operating Voltage | 9.8V to 16V DC |
| Input Current, O² heater initial warm-up | 2.0A nominal, 3A max |
| Input Current, O² normal operation | 0.8A nominal, 1.1A max |
|
Environmental |
|
| Operating ambient temperature | 0° to 140° F (−17.78° to 60° C) |
| Storage ambient temperature | −40° to 185° F (−40° to 85° C) |
| Water resistance | Splash resistant, non-submersible |
|
Sensors |
|
| Compatible Types | Bosch™ LSU4.2 & Bosch™ LSU4.9 |
| Bosch™ Heater Control | Digital PID via pump-cell impedance |
|
Measurements
|
|
| Lambda | .5 to 8.0 |
| Air/Fuel Ratio | 7.35 to 117 (gasoline), Fuel Type Programmable |
|
Accuracy
|
|
| For Lambda | Accurate to +/- .007 (.1 AFR) |
|
Response Time |
|
| Free Air to Lambda | < 100 mS ( < 25 mS typical) |
|
Inputs
|
|
| Serial | 1, Innovate MTS Compatible |
|
Outputs
|
|
| Analog |
2, 0-5VDC, 10 bit resolution, programmable |
| Serial | 1, Innovate MTS Compatible |
|
Communication
|
|
| Serial | MTS (Innovate Modular Tuning System) compatible |
More Information
| EAN | FM0014092 |
|---|---|
| Manufacturer |
Innovate Motorsports
|
