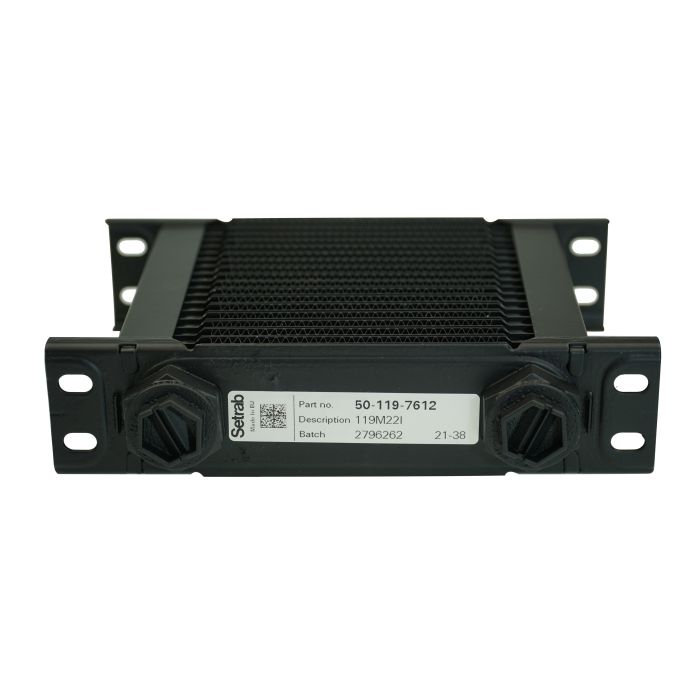

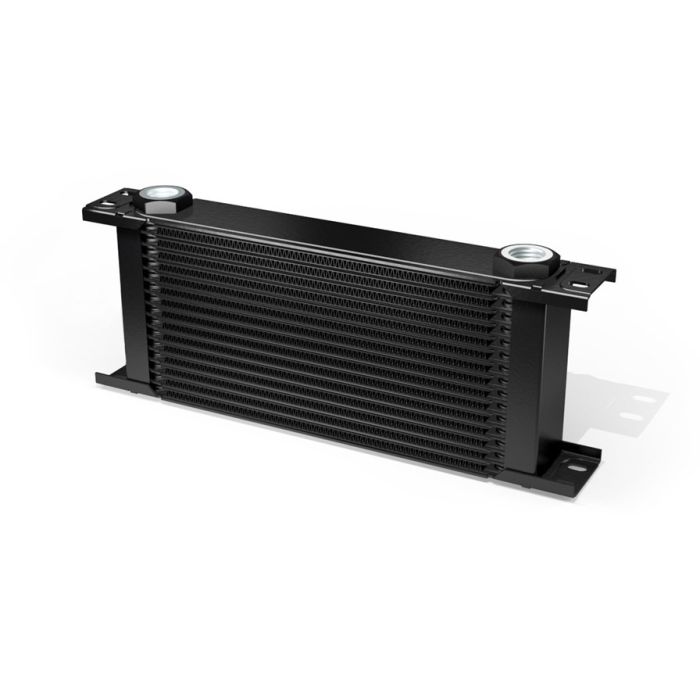

Setrab Proline oil cooler 19-row 210 x 146 mm (115mm)
Price: AED 485.73
In stock
Setrab Proline oil cooler 19-row 210 x 146 mm (115mm)
Setrab Proline oil cooler 19-row 210 x 146 mm (115mm)
Technical Specifications
| Working Pressure | 0-10 bar(g) dynamic |
| Max Pressure | 12 bar(g) |
| Burst Pressure | 37 bar(g) |
| Pressure Test | 10 bar(g) |
| Leak Test | 4 bar(g) |
| Working Temperature | -40°C do 150°C |
| Inner Cleanliness | ISO 4406 16/14 |
| General Dimensional Tolerances | ISO 2768-v |
| Material | aluminium |
| Max Connection Tightening Torque | 40 Nm |
More Information
| EAN | FM0034781 |
|---|---|
| Manufacturer |  Setrab |
| Oil cooler size | 13-24 rows |
