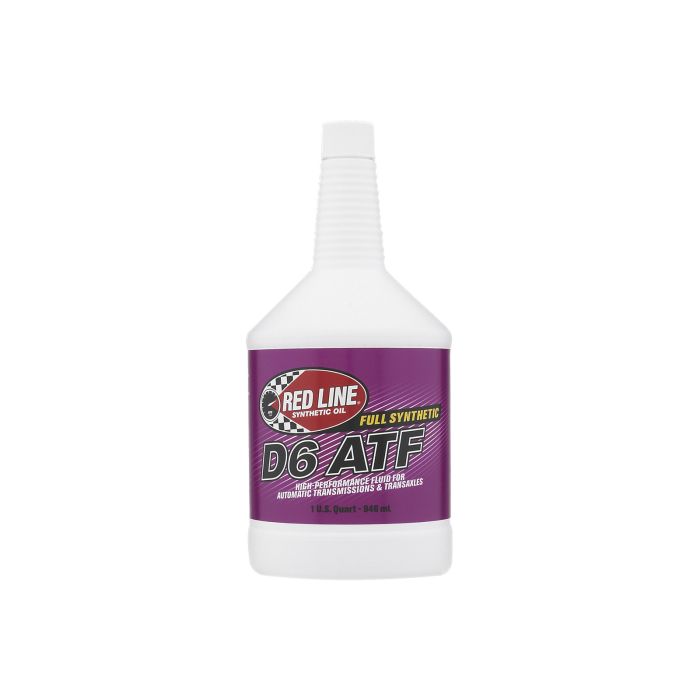

Gearbox oil Red Line ATF D6 0.94l RD-30709

Gearbox oil Red Line ATF D6 0.94l RD-30709

• Our lowest viscosity, most shear-stable ATF for consistent operation, designed to satisfy Dexron-VI®, Mercon®SP, Mercon®LV, Honda DW-1, Toyota WS, Mercedes Benz NAG-2, ZF-LG 6, 6+ and 8 fluids, for use in automatic and manual transmissions
• Also satisfies API 70W/75W and GL-4 gear oil requirements

With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available

• Red Line offers the widest selection of fully-synthetic ATF on the market today
• Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
• Reduced oxidation and lower volatility at high temperature
• Allows high-temp operation without varnishing valves and clutches
• Extended drain intervals

TYPICAL PROPERTIES

Vis @ 40°C, CSt - 31

Vis @ 100°C, CSt - 6.3

Viscosity Index - 163

Pour Point, °C - -60

Pour Point, °F - -76

Brookfield Viscosity @ -40°C, Poise - 45

Red Line full-synthetic D6 ATF is a lower viscosity version of the D4ATF and is designed for better fuel efficiency in CAFE testing. Dexron VI requires a different approach to a conventional ATF formulation. Rather than beginning with a 7.5 cSt fluid and allowing a viscosity loss in use to drop to 5.5 cSt, the Dexron VI fluid requires a starting viscosity of less than 6.4 and a final drop to no less than 5.5 cSt. Red Line D6 will drop to no less than 6.1 cSt. Since the final viscosity after use of these fluids are similar, Dexron VI fluids can be used where Dexron III fluids were previously recommended (except for some manual transmission applications, our customers report).

D6 ATF also provides significantly improved gear protection and will provide a GL-4 level of gear protection. The balanced frictional characteristics provide smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.

Suitable Replacement For:

Aisin Warner AW-1

ATF 134

BMW/Mini 83 22 0 142 516 (M-1375.4)

BMW/Mini 83 22 2 152 426 (M-L12108)

BMW/Mini 83 22 0 432 807

BMW/Mini 83 22 0 397 114

BMW/Mini MTF-LT-3

Chrysler/Dodge/Jeep ZF 8/9 Speed

Chrysler/Dodge/Jeep 68157995AA

Chrysler/Dodge/Jeep 68157995AB

Chrysler/Dodge/Jeep 68218925AA

Chrysler/Dodge/Jeep 68218925GA

Ford Mercon® SP

Ford Mercon® LV

Ford WSS-M2C938-A

Ford XT-10-QLV

Ford XT-10-QLVC

Ford XT-10-DLV

GM Dexron® VI

Honda/Acura ATF-DW1

Honda/Acura Acura Type 3.0

Hyndai/Kia SP-IV

Jaguar/Land Rover Shell M-1375.4

MB 236.12

MB 236.14

MB 236.41

MB 722.9

MB Fuchs ATF 3353

MB NAG-2

Mitsubishi Diamond SP-IV

Mitsubishi Diamond Queen ATF J3

Nissan/Infinity 999MP-MTS00P

Nissan/Infinity NissanMatic S

Shell L12108

Shell 3403 M115

Subaru SOA635047

Toyota/Lexus JWS 3324

Toyota/Lexus NWS-9638

Toyota/Lexus Toyota Type WS

VW/Audi G 055 005

VW/Audi G 055 540

VW/Audi G 060 162

Volvo 31 256 774

Volvo 31 256 775

ZF Lifeguard 6/6 PLUS 8

ZF6/8

Dexron and Mercon are trademarks of General Motors and Ford Motor Co., respectively.
