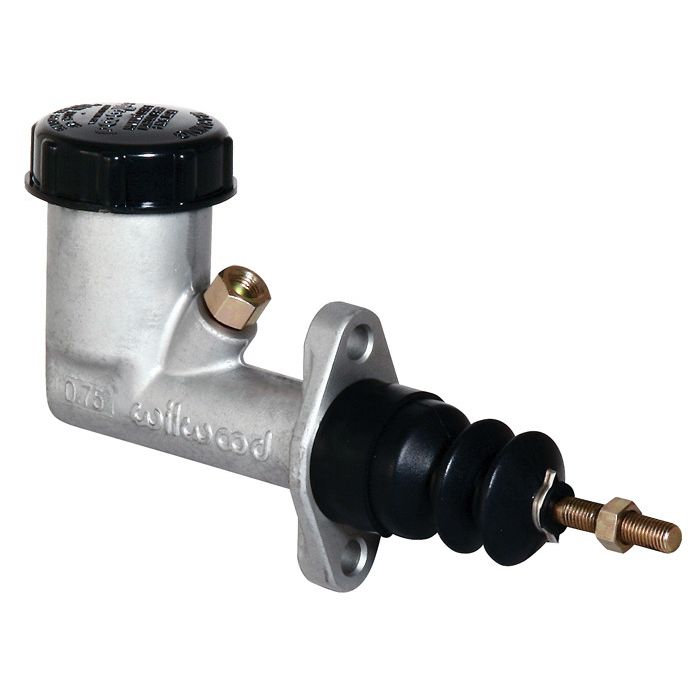

Integral Reservoir Compact Master Cylinder Wilwood 260-2636 0.625"

Integral Reservoir Compact Master Cylinder - Product Summary

This popular lightweight, compact design is used for clutch and small master cylinder requirements and is well known for its dependability. It incorporates an improved plastic screw-on filler cap which protects the fluid in the 1.4 ounce reservoir, and is available in three bore sizes.

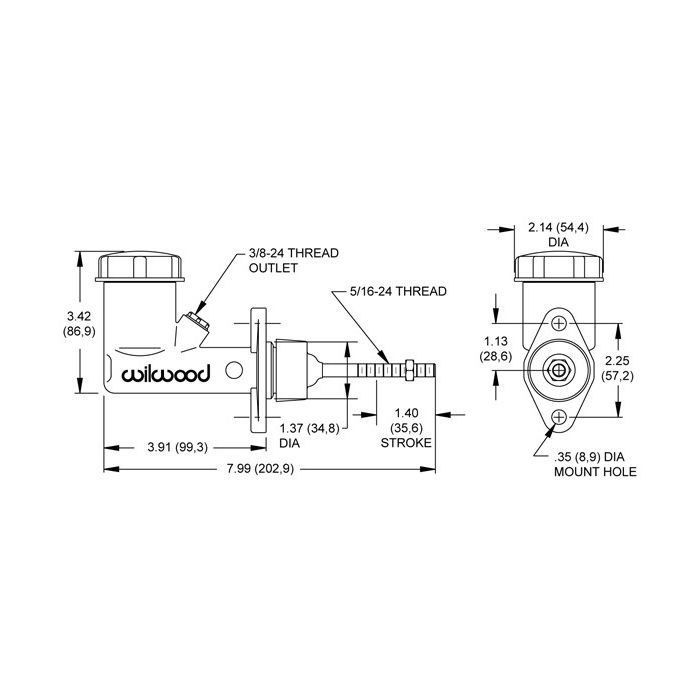

Master Cylinder Dimensions

Bore Size 5/8"

Area (in²) 0.310

Stroke 1.40

Volume (cu in) 0.43

Master Cylinder Description

Type Single Outlet

Outlets 1

Material Aluminum

Finish Bare

Reservoir

Res Type Integral

Res Size (oz) 1.4

Res Size(cu in) 2.57

Rate

UPC Number

UPC 889545067415



Additional Dimensions

Overall Length(in)

Flange to End Length (in) 3.91"

Inlet Size (in)

Inlet Fit (in)

Outlet Size 1 (in) 3/8-24

Outlet Fit 1 (in) 3/8-24 IF Female

Outlet Size 2 (in)

Outlet Fit 2 (in)
