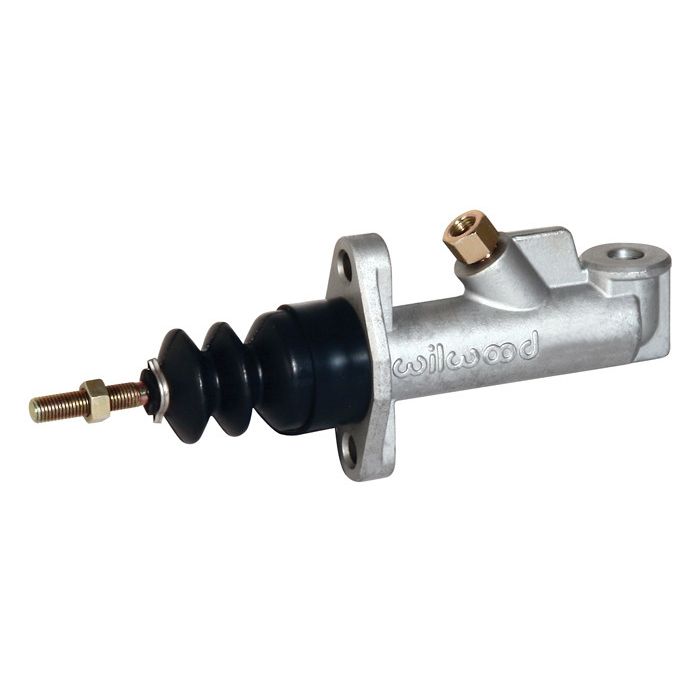

Compact Remote Reservoir Master Cylinder Wilwood 260-6088 0.700"

Manufacturer WilwoodWilwood
SKU USA-WIL-260-6088
EAN FM0011167

  In stock



Compact Remote Reservoir Master Cylinder Wilwood 260-6088 0.700"

Compact Remote Reservoir Master Cylinder - Product Summary

Remote Reservoir Compact Master Cylinders are the perfect solution for club sport racers, small open wheel cars, or any other custom application where there is limited space for the master cylinder and fluid reservoir. Aluminum cylinders designed for use with either a detachable or remote fill reservoir. Available in four bore sizes from .625" to .813" with a full 1.4" of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.

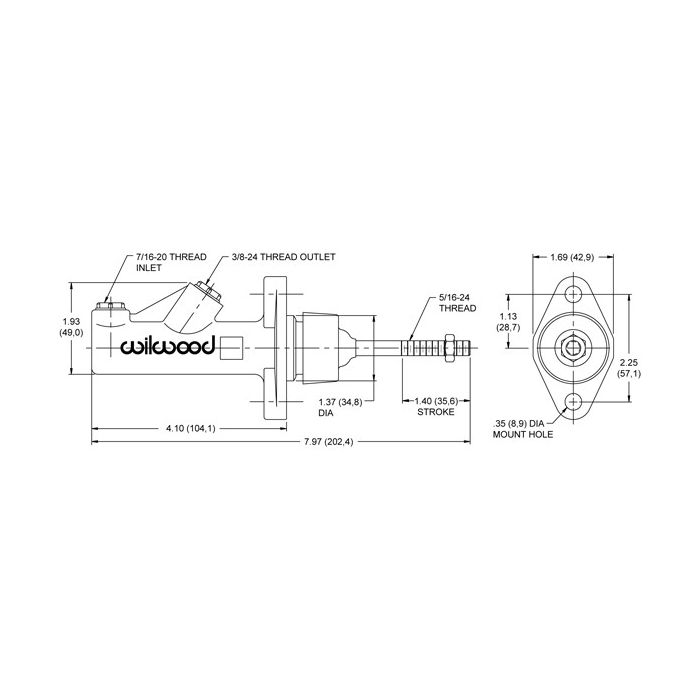

Master Cylinder Dimensions

Bore Size .70

Area (in²) 0.380

Stroke 1.40

Volume (cu in) 0.53

Master Cylinder Description

Type Single Outlet

Outlets 1

Material Aluminum

Finish Bare



Reservoir

Res Type Remote



Overall Length(in) 7.97"

Flange to End Length (in) 4.10"

Inlet Size (in) 7/16-20

Outlet Size 1 (in) 3/8-24

Outlet Fit 1 (in) 3/8-24 IF Female

More Information

EAN FM0011167
Manufacturer WilwoodWilwood
