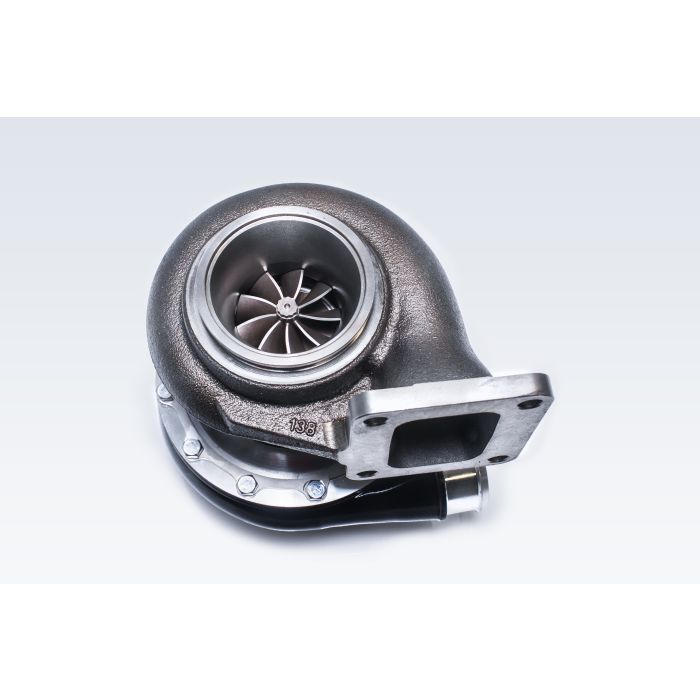

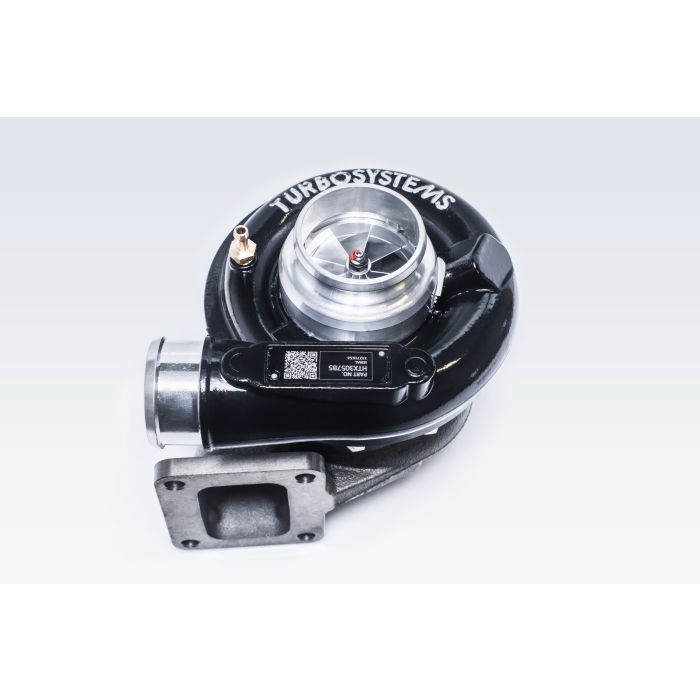

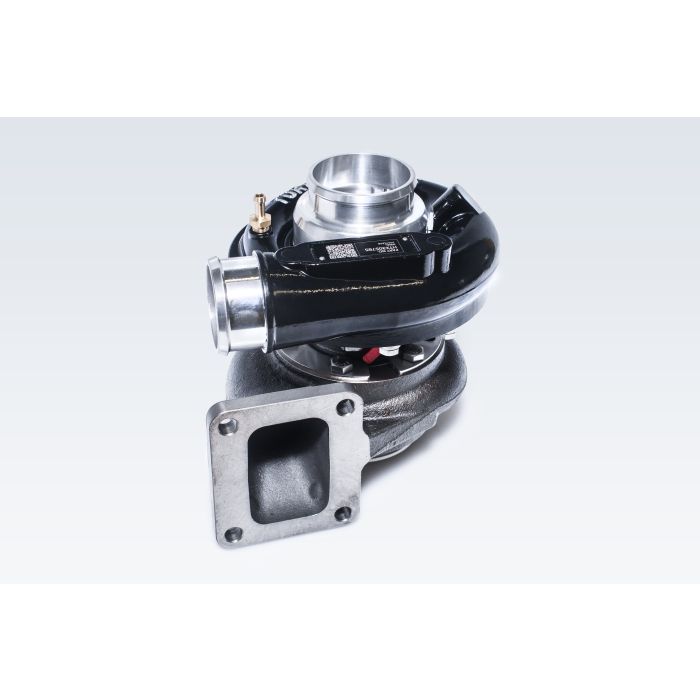

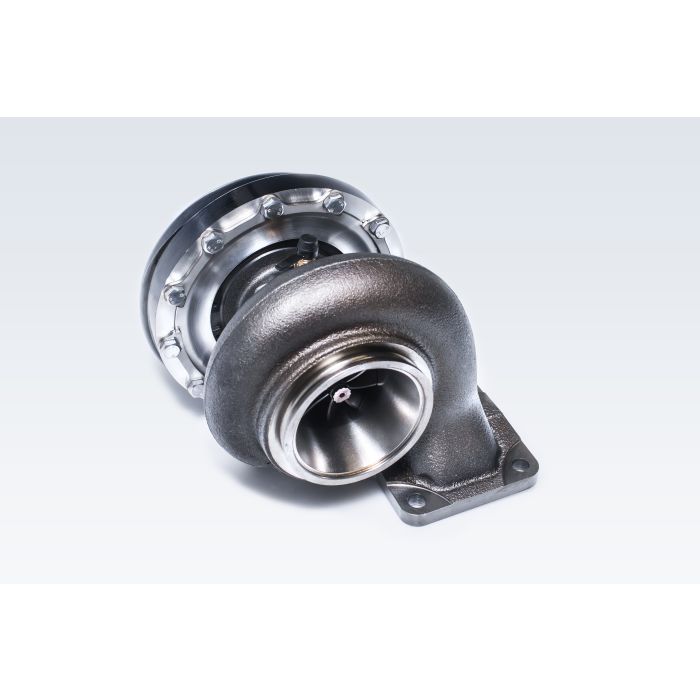

Turbocharger TurboSystems HTX3057B5

High performance turbocharger wtih 14cm2, 1.05 AR single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

• Power range:470-570 HP;

Compressor side:

• Ported shroud compressor housing;
• Compressor wheel:in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium;
• Intake:
  • Straight compressor housing - 63mm (2,5");
  • Compressor housing with 90° elbow - 76mm (3");
• Air outlet:51mm (2");

Core:

• Bearings: dual ceramic ball bearings;
• Cooling: water cooling with 2 x M14x1.5 ports;
• Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

• Housing:single scroll , 14cm2 AR: 1.05;
• Turbine wheel:custom design 60/55mm 9 blades;
• Flange: 3"T3 single scroll;
• Exhaust connection:3" V-band clamp;

Included Vband clamp and Oil drain flange
